Model NO.
K002390- VS-TY50-V1+VS035SD1 800x600
Quantity:

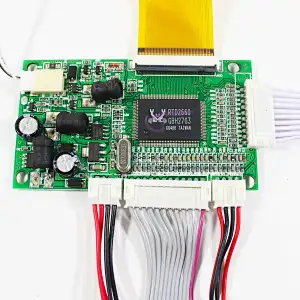

LCD Controller Board:
VGA 2AV LCD Board Work for 50Pin TTL LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

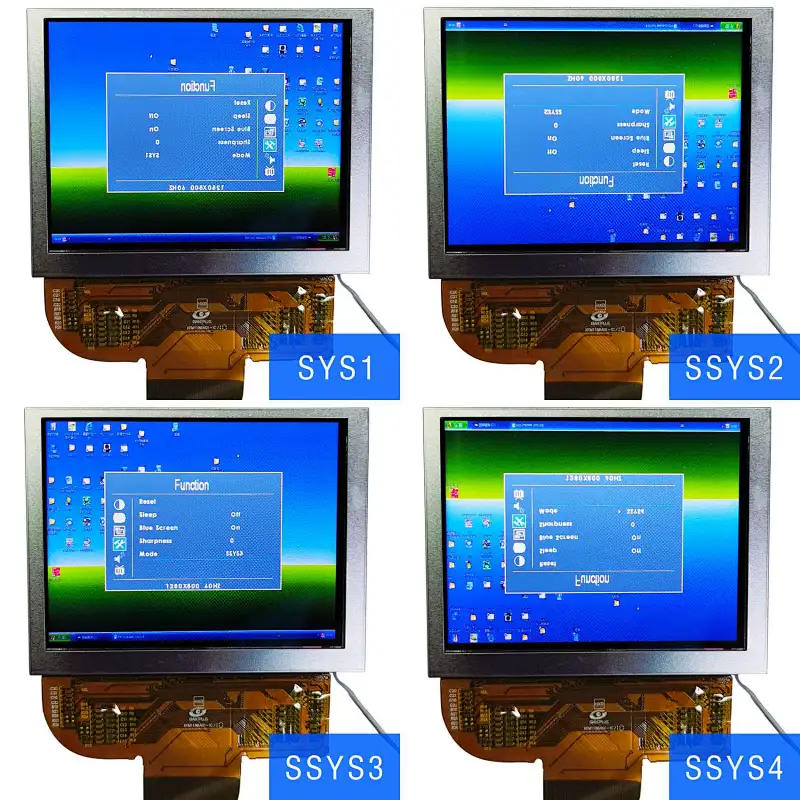

OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 77mm x 45mm x 12mm

3.5"VS035SD1 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution800RGB)×600
Outline Size 84.03 × 65.24×3 (H×V×D)
Display Area 71.28 × 53.46 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 50/65/65/65 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6-bit) , FPC , 50 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

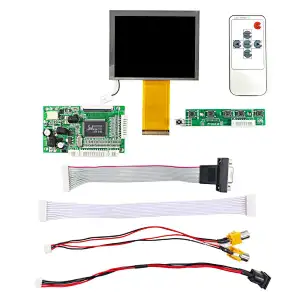

Packing list :
 HDMIVGA+2AV LCD Controller Board VS-TY2662-V1
 3.5inchVS035SD1 800X600 LCD Screen
 Power Supply Cable
 Keyboard With Cable
1× Remote Control (Battery Not included)
