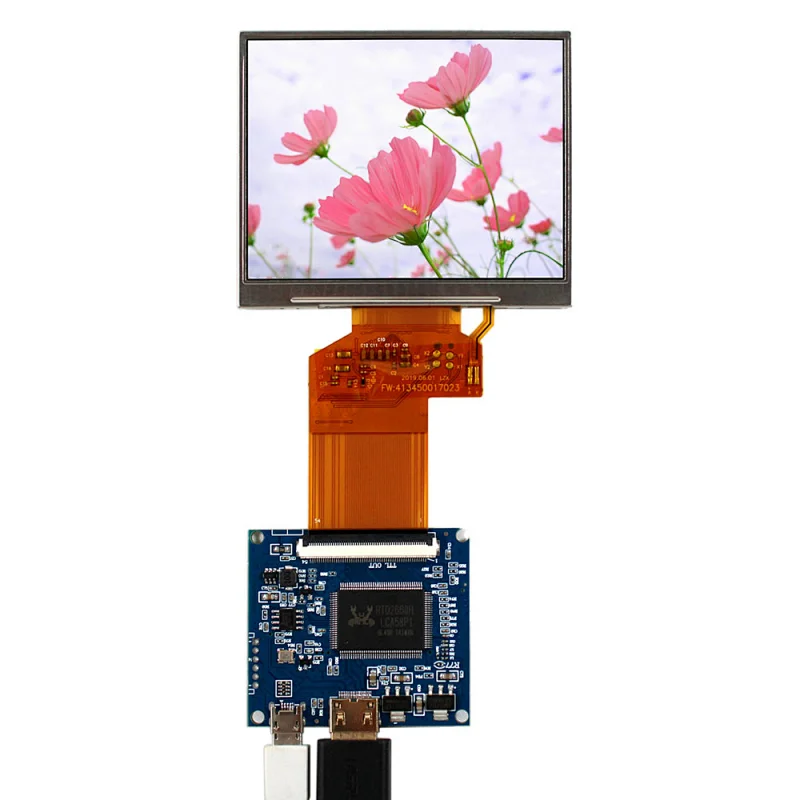

3.5inch LQ035NC111 320X240 TFT-LCD Screen With mini HDMI LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With mini HDMI LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With mini HDMI LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With mini HDMI LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With mini HDMI LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With mini HDMI LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With mini HDMI LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With mini HDMI LCD Controller Board
3.5inch LQ035NC111 320X240 TFT-LCD Screen With mini HDMI LCD Controller Board

3.5inch LQ035NC111 320X240 TFT-LCD Screen With mini HDMI LCD Controller Board

Model NO.
K003006-VS-TY2660V1-850 DHMI 5V+ LQ035NC111
Quantity:
LCD Controller Board:
HDMI-mini LCD Board Work for 54Pin TTL LCD Screen
Input Power Adapter: DP 5V-9V dc More than20W.
Come In Standby Model When Not Input Signal
Video Input: HDMI-mini
OSD: No
Board Size:52mm x 46mm x 6mm
3.5"LQ035NC111 320X240 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 320RGB)×240
Outline Size 76.9 × 63.9×3.46 (H×V×D)
Display Area 70.08 × 52.56 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 60/60/50/55 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

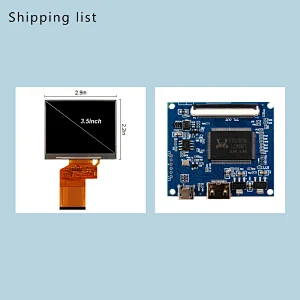

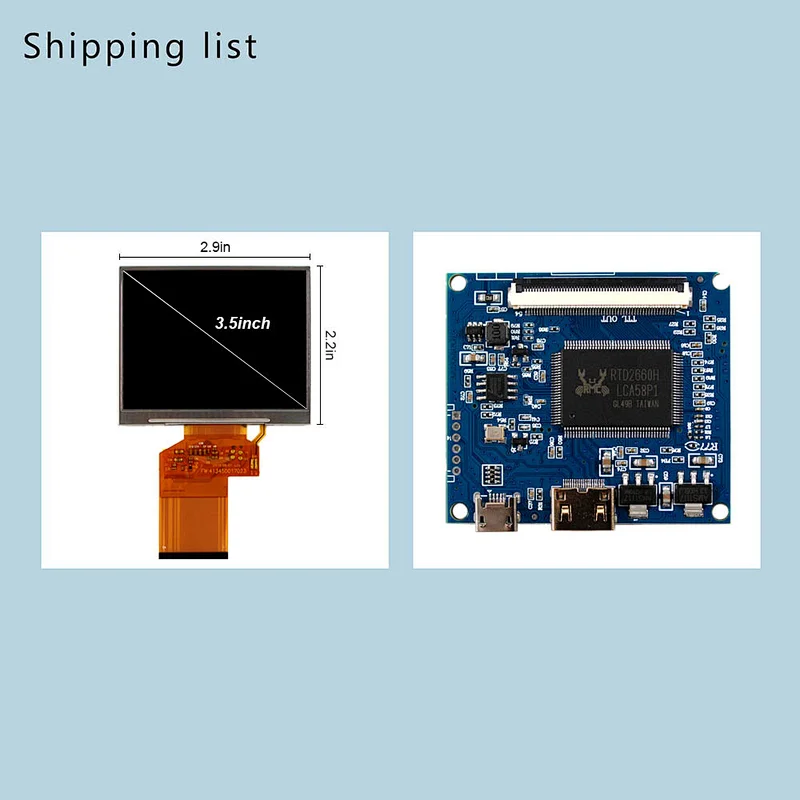

Packing list :
 miniHDMI LCD Controller Board VS-TY2660V1-850
1× 3.5inch LQ035NC111 320X240 LCD Screen
