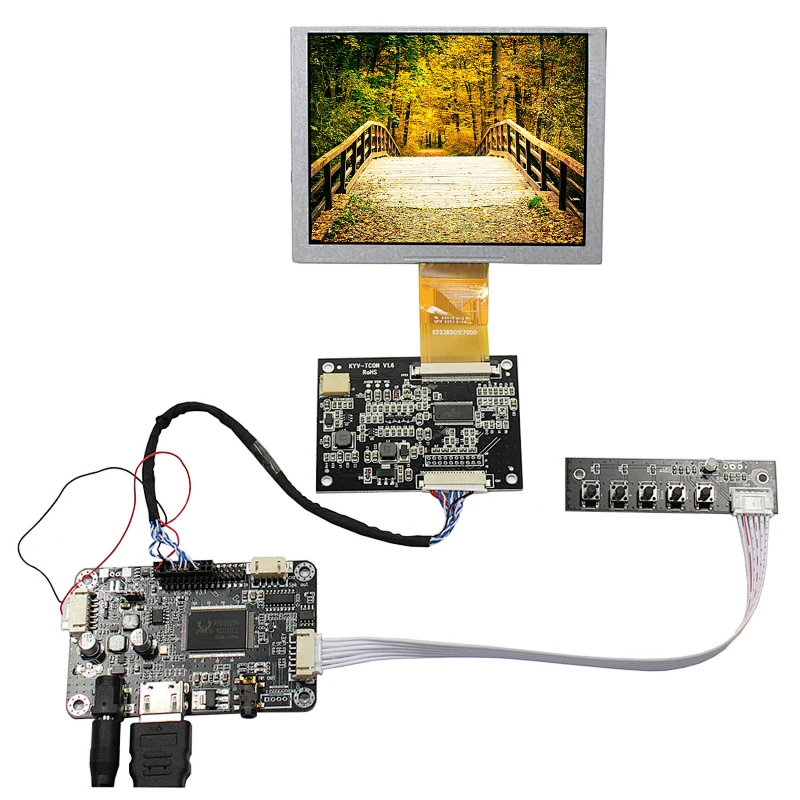

5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board
5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board

5 inch TFT-LCD ZJ050NA-08C 640×480 Screen With HD-MI Audio LCD Controller Board

Model NO.
K002930-VS-N5V3.1+ZJ050NA-08C
Quantity:

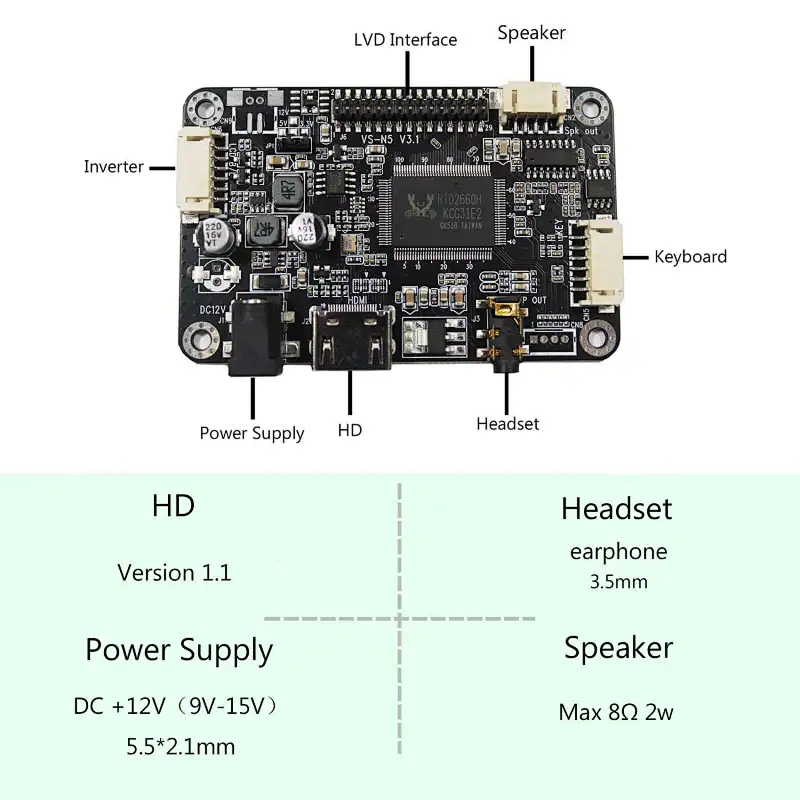

LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

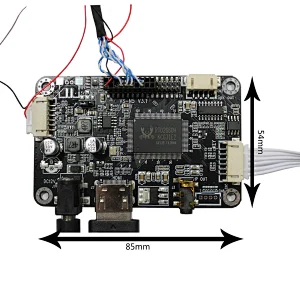

Board Size: 85mm x 54mm x 14mm

5.0"ZJ050NA-08C 640×480 LCD Screen:
Display Mode  IPS Pro, Normally Black, Transmissive
Resolution 640(RGB)×480   (VGA)  159PPI
Outline Size 117.65 × 88.43 × 5.9 (H×V×D)
Display Area 250 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)
Backlight  WLED

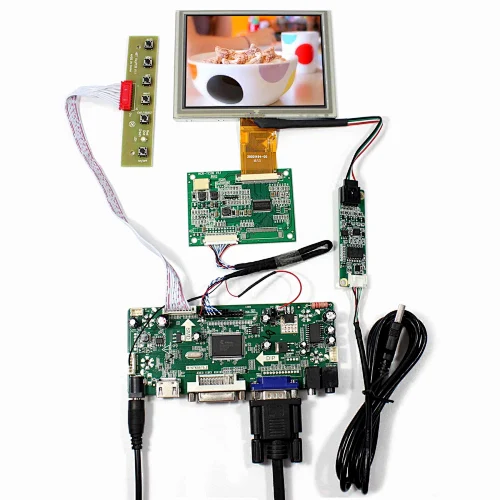

Packing list:
1×HD-MI Audio LCD Controller Board
1×5.0"ZJ050NA-08C 640×480 LCD Screen

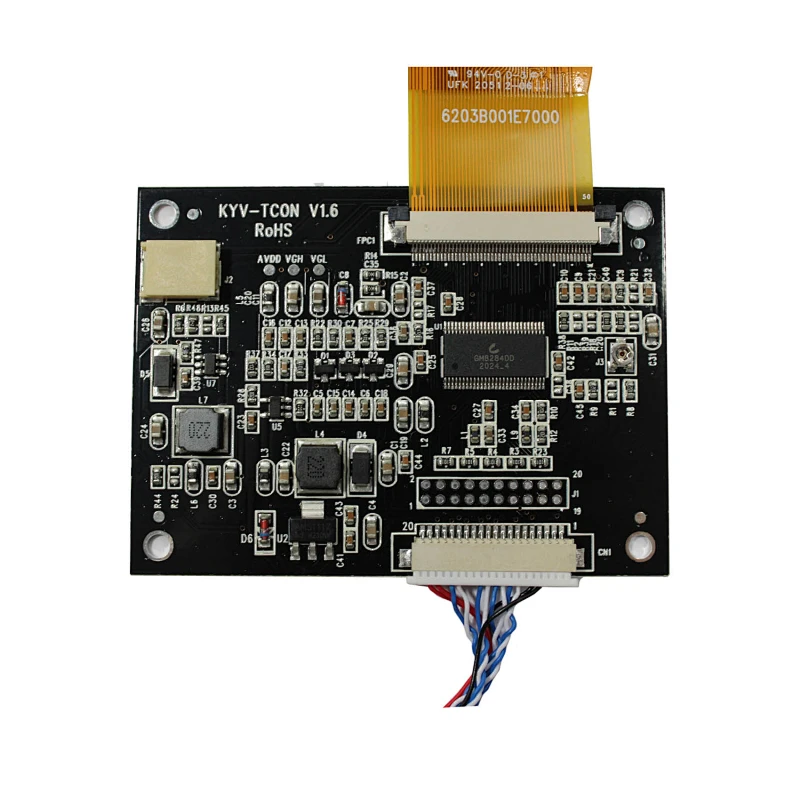

1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable


Send Message

* clear input
*

Related Products

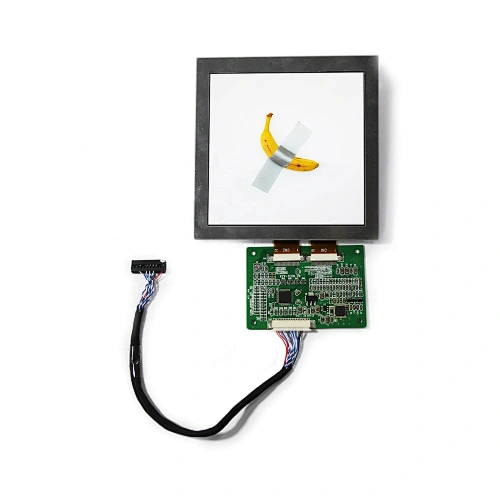

5inch PD050OX5 480x480 LCD Screen 5" Hight Brightness 900nits with Inverter Board
5inch PD050OX5 480x480 LCD Screen 5" Hight Brightness 900nits with Inverter Board
Model NO. K002610 PD050OX5 TCON V6

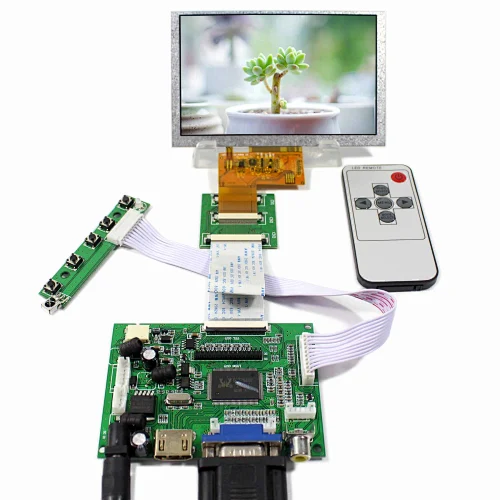

VGA,AV LCD Controller board with 5inch 640x480 tft lcd ZJ050NA-08A replace for AT050TN22
VGA,AV LCD Controller board with 5inch 640x480 tft lcd ZJ050NA-08A replace for AT050TN22
Model NO. K000106 KYV-N2 V1+ZJ050NA-08C
VGA AV LCD Control board kyv-n2 With 5 inch 800x480 VS050T-001A tft LCD Screen
VGA AV LCD Control board kyv-n2 With 5 inch 800x480 VS050T-001A tft LCD Screen
Model NO. K001549 KYV-N2 V6+VS050T-001A

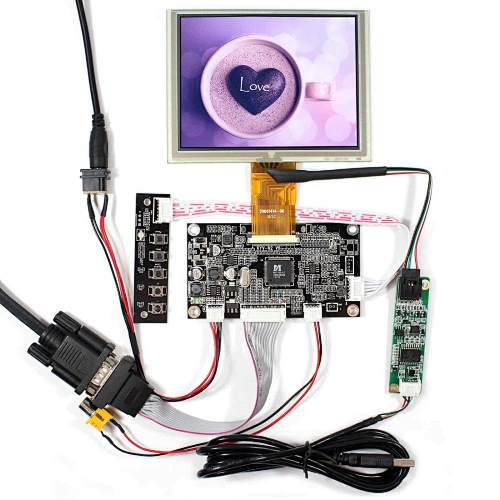

VGA,AV LCD controller board mini 5 inch lcd screen with touch
