5inch ZJ050NA-08C 640X480 TFT-LCD 5" Touch Panel Screen With HDMI LCD Controller Board

Model NO.
K001259-VS-TY2660H-V1+ZJ050NA-08C+TP+USB control
Quantity:

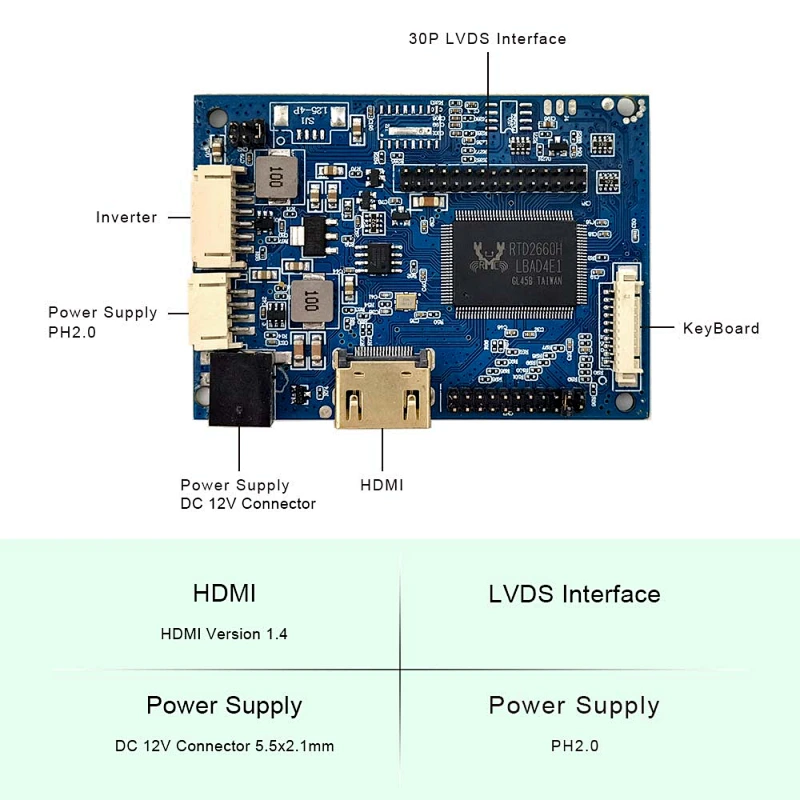

LCD Controller Board:
HDMI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

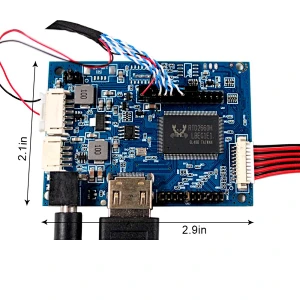

Board Size:74mm x 53mm x 12mm

5"ZJ050NA-08C 640X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 640RGB)×480
Outline Size 117.65 × 88.43×5.9 (H×V×D)
Display Area 101.76 × 76.32 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 50 pins  Parallel RGB (1 ch, 8-bit) , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

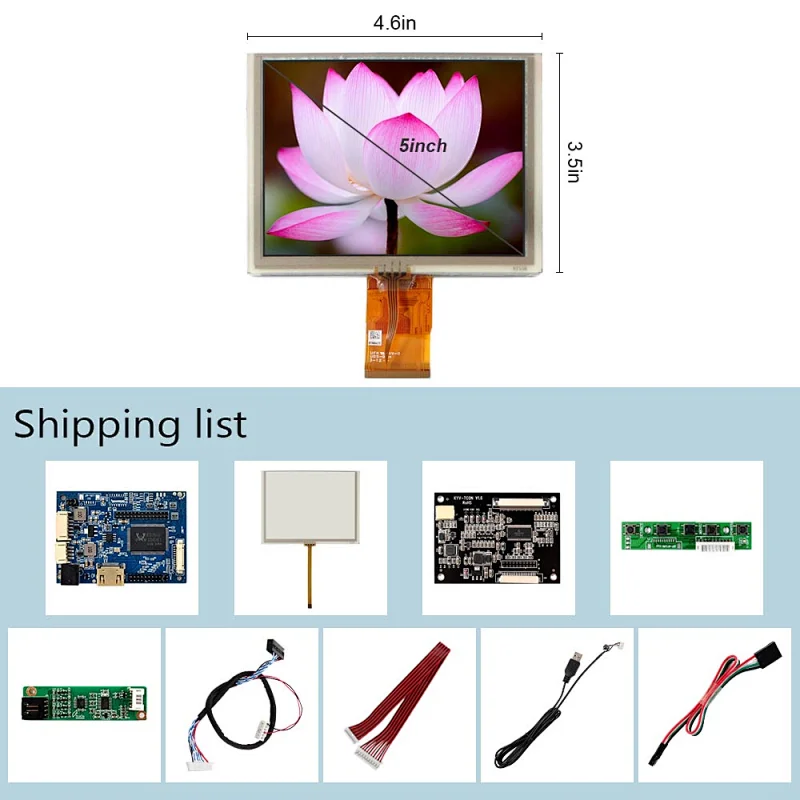

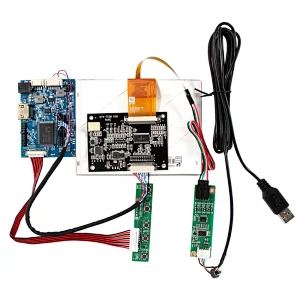

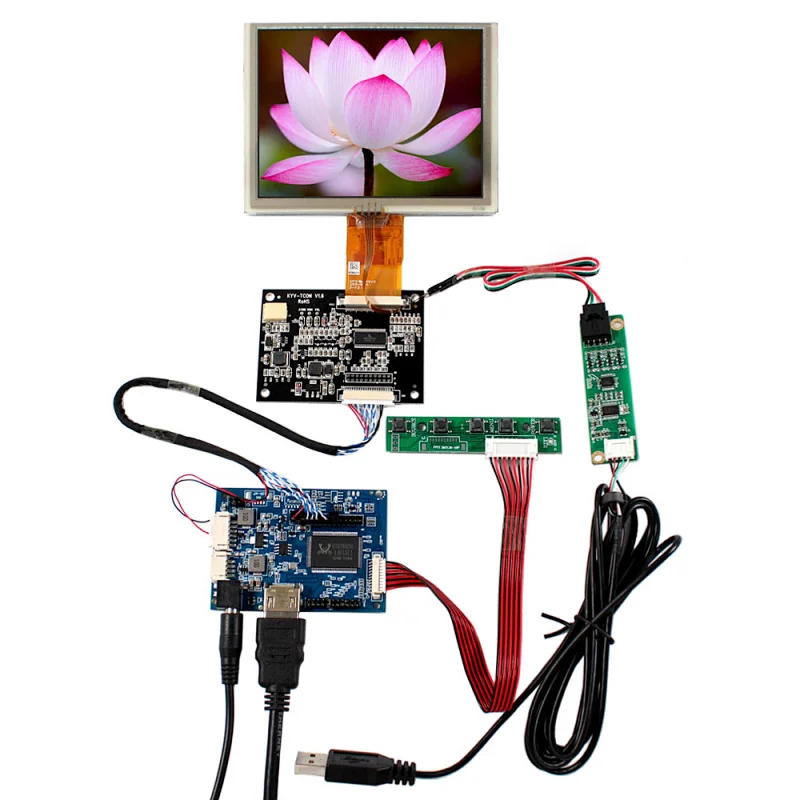

Packing list :
1×HDMI LCD Controller Board VS-TY2660H-V1
5inch ZJ050NA-08C 640X480 LCD With Touch Panel VS050TP-A3

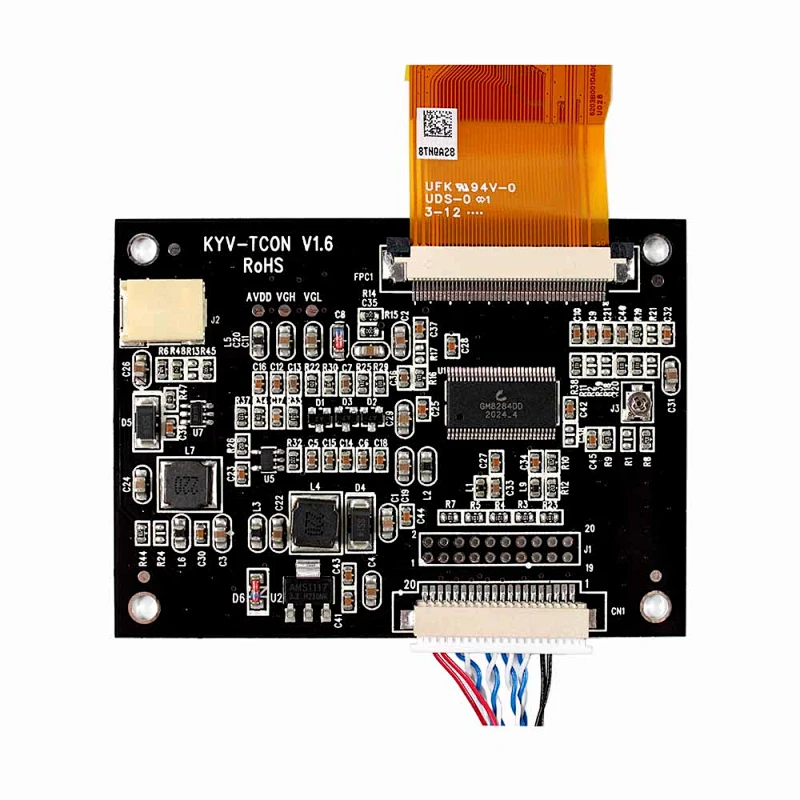

 Tcon Board HCR-TCON V1.1
 LVDS Cable
 USB Controller Card
 USB Cable
 Extend Touch Cable
 Keyboard With Cable
