5inch HSD050IDW 800X480 TFT-LCD Screen With Touch Panel + HDMI VGA 2AV LCD Controller Board
5inch HSD050IDW 800X480 TFT-LCD Screen With Touch Panel + HDMI VGA 2AV LCD Controller Board
5inch HSD050IDW 800X480 TFT-LCD Screen With Touch Panel + HDMI VGA 2AV LCD Controller Board
5inch HSD050IDW 800X480 TFT-LCD Screen With Touch Panel + HDMI VGA 2AV LCD Controller Board
5inch HSD050IDW 800X480 TFT-LCD Screen With Touch Panel + HDMI VGA 2AV LCD Controller Board
5inch HSD050IDW 800X480 TFT-LCD Screen With Touch Panel + HDMI VGA 2AV LCD Controller Board
5inch HSD050IDW 800X480 TFT-LCD Screen With Touch Panel + HDMI VGA 2AV LCD Controller Board
5inch HSD050IDW 800X480 TFT-LCD Screen With Touch Panel + HDMI VGA 2AV LCD Controller Board
5inch HSD050IDW 800X480 TFT-LCD Screen With Touch Panel + HDMI VGA 2AV LCD Controller Board

5inch HSD050IDW 800X480 TFT-LCD Screen With Touch Panel + HDMI VGA 2AV LCD Controller Board

Model NO.
K000791- VS-2662-V1+HSD050IDW1+VS050TP-A4
Quantity:

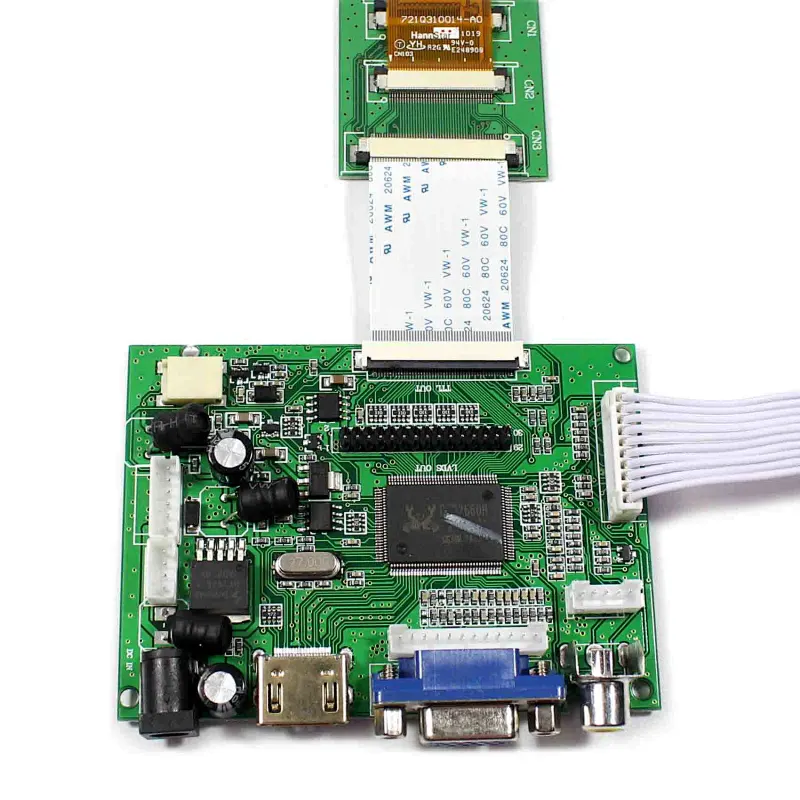

LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm

5"HSD050IDW1 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 118.5 ×77.55×3.7 (H×V×D)
Display Area 108 × 64.8 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC

Backlight  WLED
Input Voltage  3.3V (Typ.)

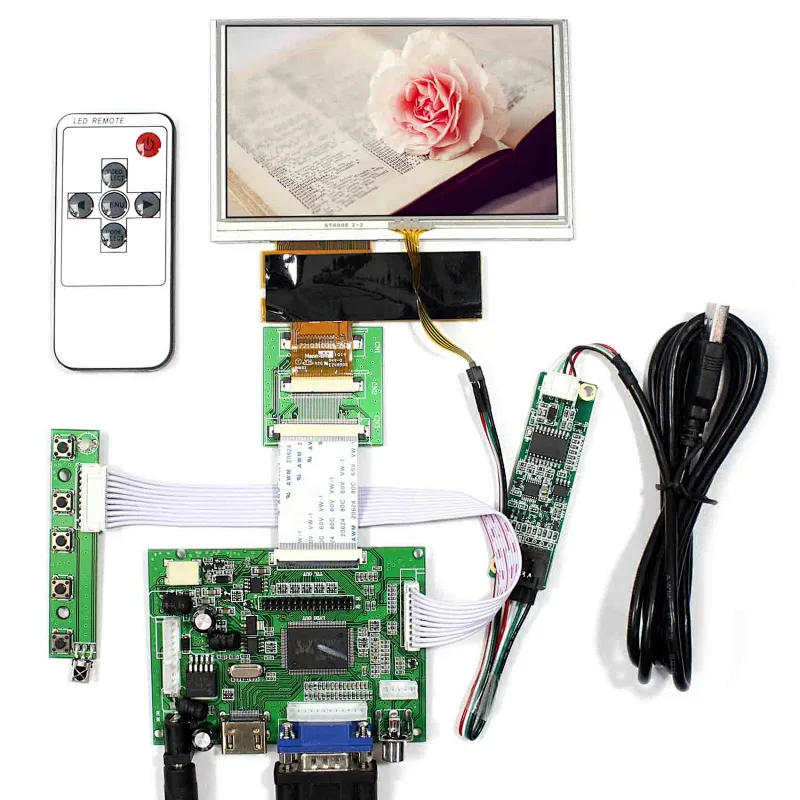

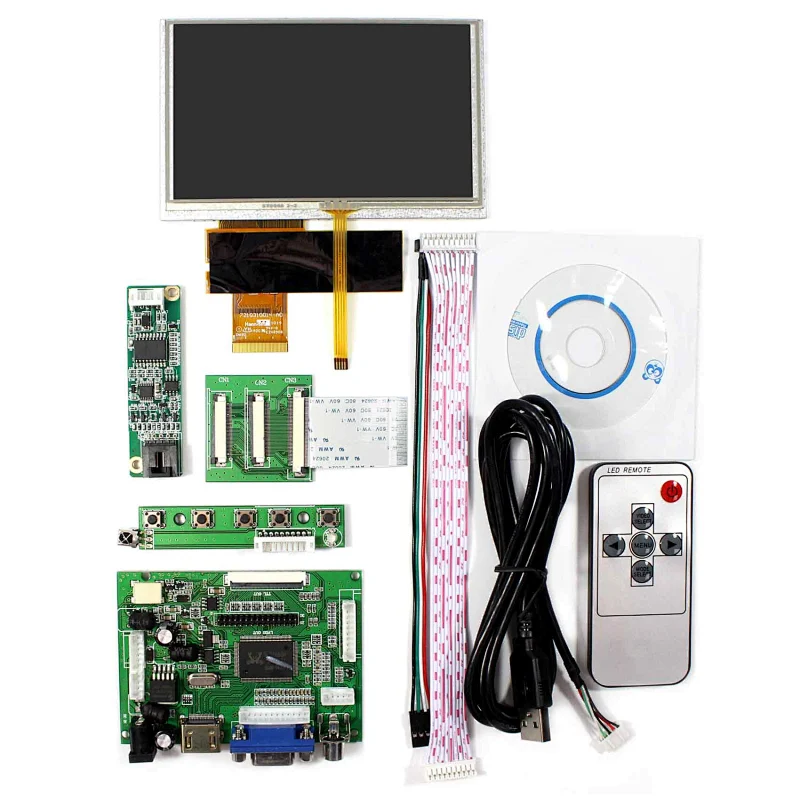

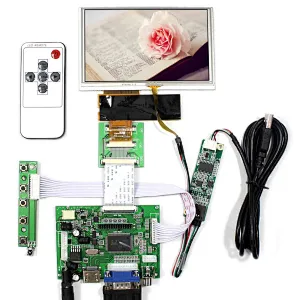

Packing list :
 HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1

1× 5inch HSD050IDW 800X480 LCD Screen With Touch Panel VS050TP-A4
1× 50Pin To 40Pin Converter Board
 USB Controller Card
 USB Cable
 Extend Touch Cable
1× Keyboard With Cable

1× Remote Control(Battery Not included)
