5inch ZJ050NA-08C 640X480 4:3 Aspect Ratio TFT-LCD with VGA+AV LCD Controller Board KYV-N2 V1
5inch ZJ050NA-08C 640X480 4:3 Aspect Ratio TFT-LCD with VGA+AV LCD Controller Board KYV-N2 V1
5inch ZJ050NA-08C 640X480 4:3 Aspect Ratio TFT-LCD with VGA+AV LCD Controller Board KYV-N2 V1
5inch ZJ050NA-08C 640X480 4:3 Aspect Ratio TFT-LCD with VGA+AV LCD Controller Board KYV-N2 V1
5inch ZJ050NA-08C 640X480 4:3 Aspect Ratio TFT-LCD with VGA+AV LCD Controller Board KYV-N2 V1
5inch ZJ050NA-08C 640X480 4:3 Aspect Ratio TFT-LCD with VGA+AV LCD Controller Board KYV-N2 V1
5inch ZJ050NA-08C 640X480 4:3 Aspect Ratio TFT-LCD with VGA+AV LCD Controller Board KYV-N2 V1
5inch ZJ050NA-08C 640X480 4:3 Aspect Ratio TFT-LCD with VGA+AV LCD Controller Board KYV-N2 V1
5inch ZJ050NA-08C 640X480 4:3 Aspect Ratio TFT-LCD with VGA+AV LCD Controller Board KYV-N2 V1

5inch ZJ050NA-08C 640X480 4:3 Aspect Ratio TFT-LCD with VGA+AV LCD Controller Board KYV-N2 V1

Model NO.
K000106-KYV-N2 V1 + ZJ050NA-08C
Quantity:

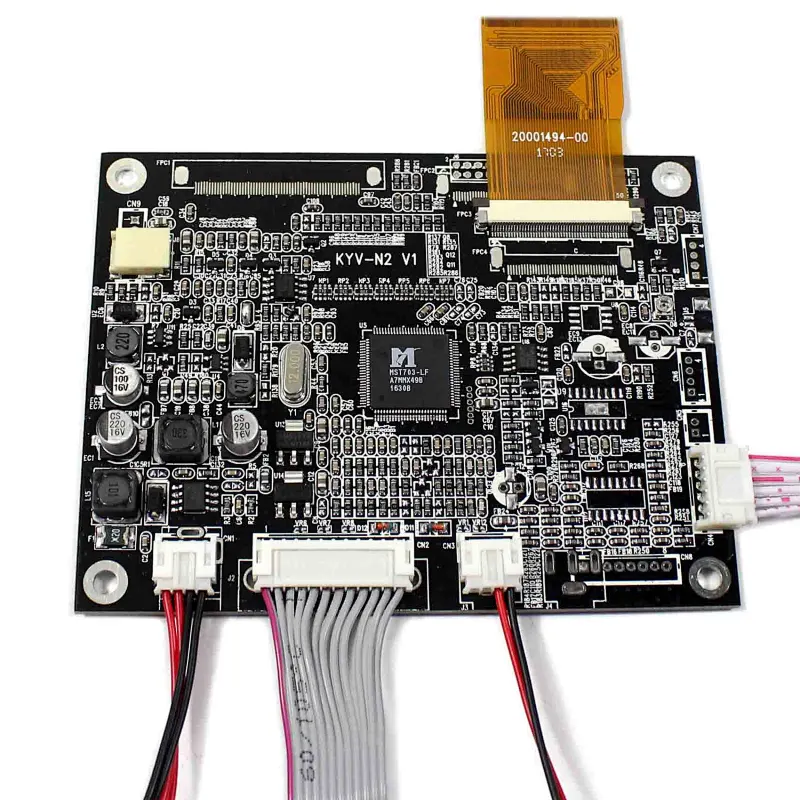

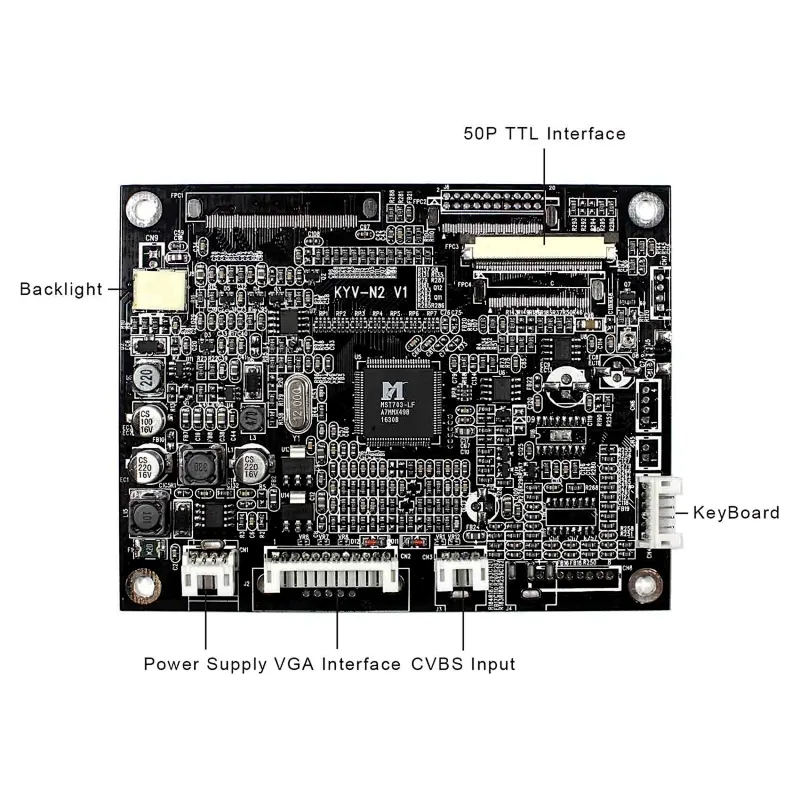

LCD Controller Board:
VGA AV LCD Board Work for 50Pin TTL LCD Screen
Input Power Adapter:12Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Video Input: VGA AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:110mm x 85mm x 10mm

5"ZJ050NA-08C 640X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 640RGB)×480
Outline Size 117.65 × 88.43×5.9 (H×V×D)
Display Area 101.76 × 76.32 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 50 pins   Parallel RGB (1 ch, 8-bit) , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

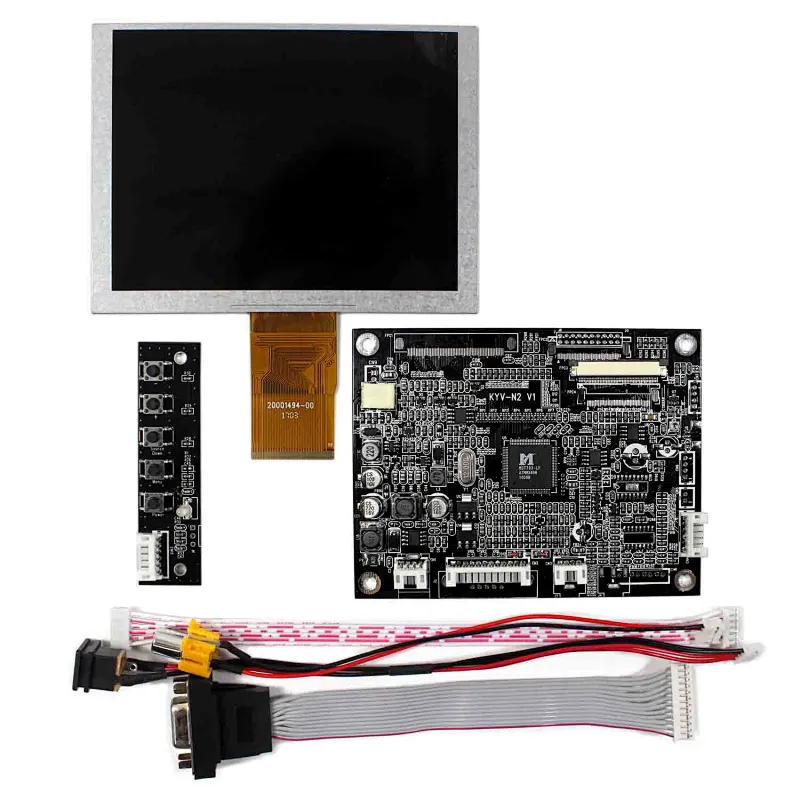

Packing list :
 VGA+AVLCD Controller Board KYV-N2 V1
5inch ZJ050NA-08C 640X480 LCD Screen
 Power Supply Cable
