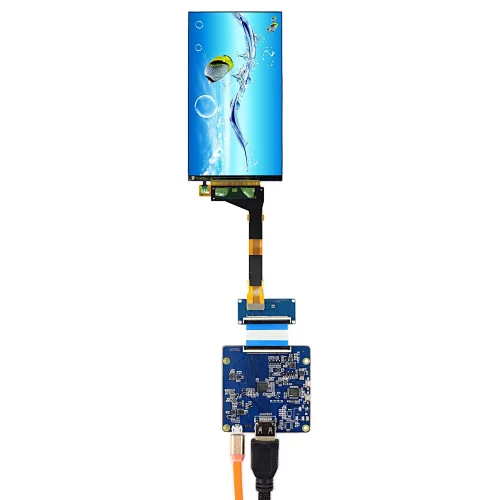

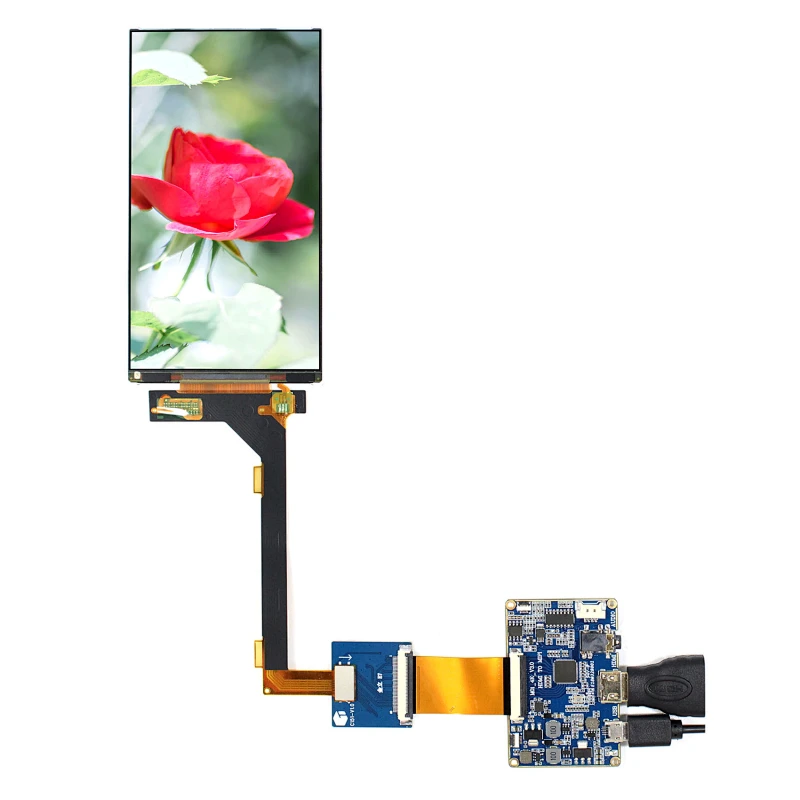

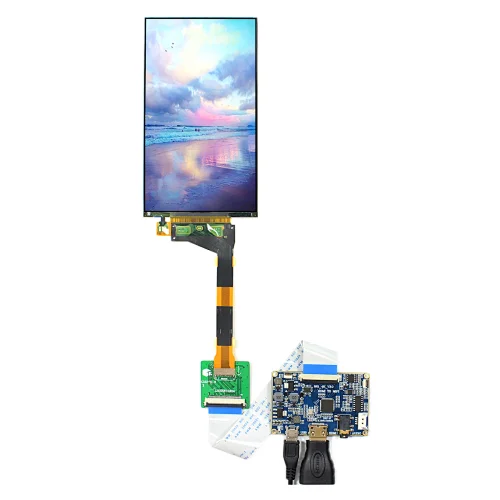

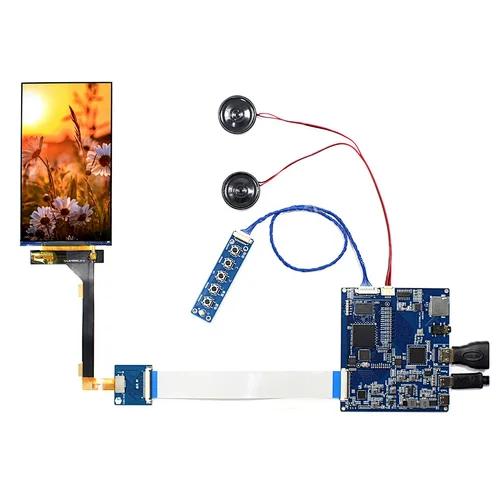

5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board
5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board
5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board
5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board
5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board
5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board
5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board
5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board
5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board
5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board
5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board

5.5inch LS055T3SX05 1920x1080  Without Backlight LCD Screen With HDMI To Mipi LCD Controller Board

Model NO.
K002216-VS-CXMIPI-V1+LS055T3SX05 1080x1920 去掉背光
Quantity:

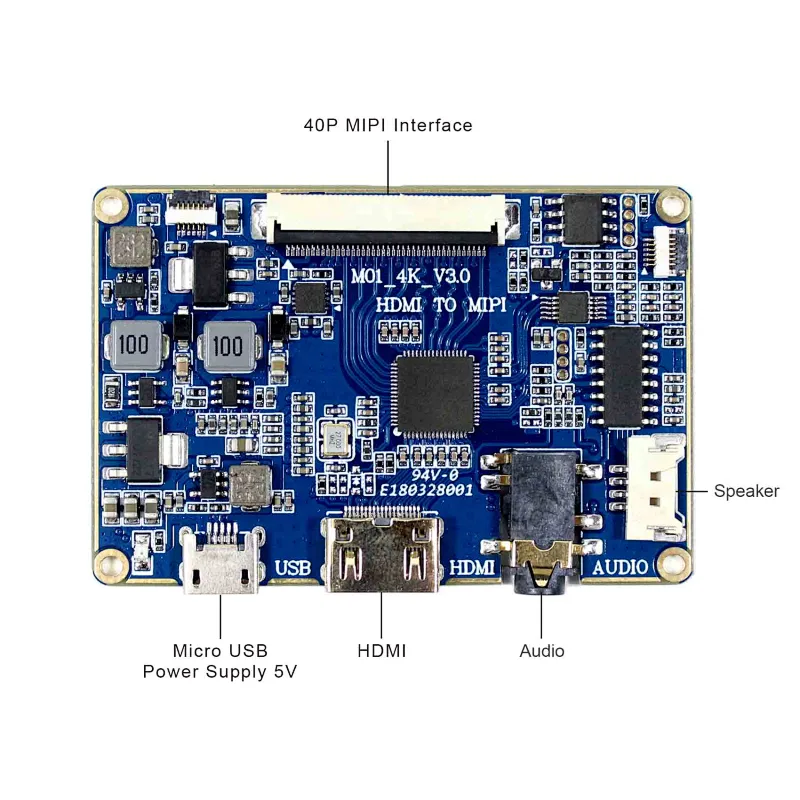

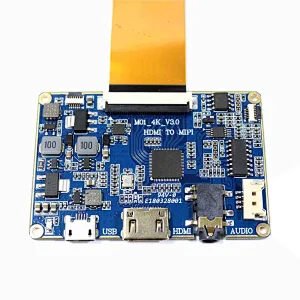

LCD Controller Board:
HDMI Board Work for 40Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A. Mirco USB
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI

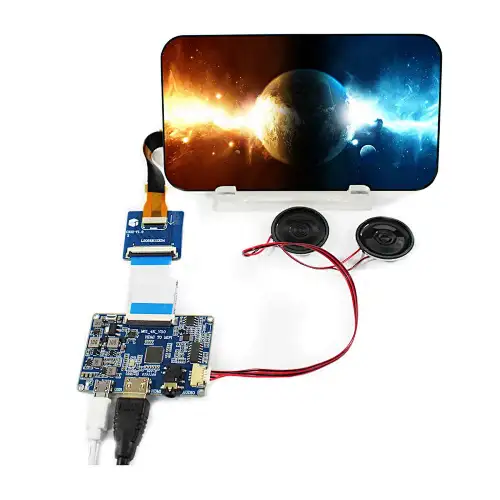

AudioOutput:Speaker Earphone
Board Size: 60mm x 40mm x 3mm
5.5"LS055T3SX05 1920x1080 LCD Screen:
DisplayNew Mode2, Normally Black, Transmissive
Resolution1080RGB)×1920
Outline Size 70.44 ×129.59×1.61(H×V×D)
Display Area 68.04× 120.96 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface MIPI (2 ch, 4 data lanes) , 40 pins , Connector
Backlight  None
Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

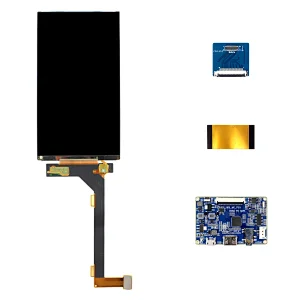

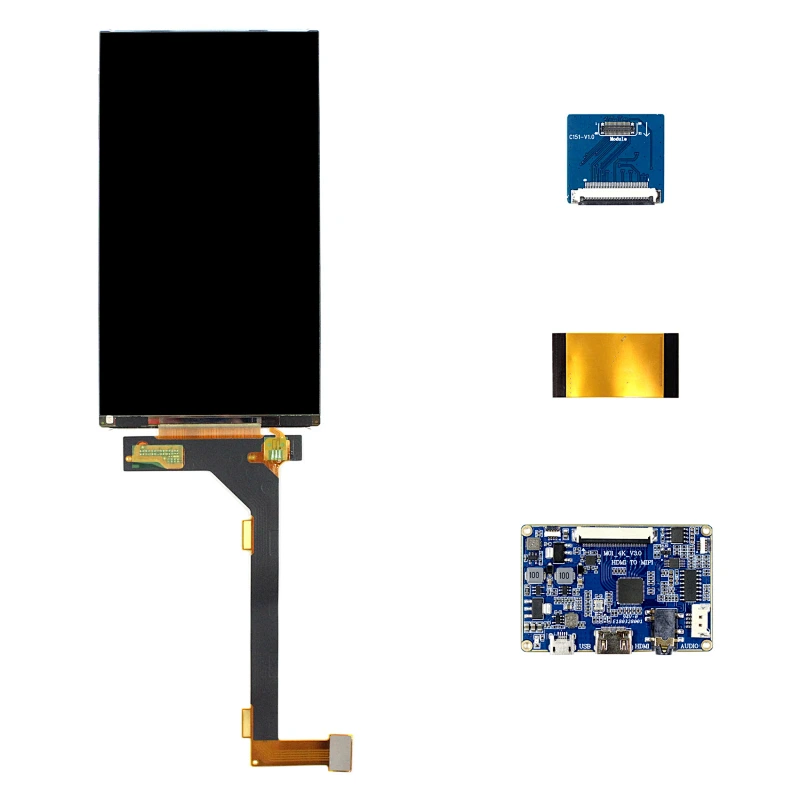

Packing list :
1× HDMI To Mipi LCD Controller Board VS-CXMIPI-V1
1× 5.5inch LS055T3SX05 1920x10080 LCD Screen(Remove Backlight)
1× Signal Cable

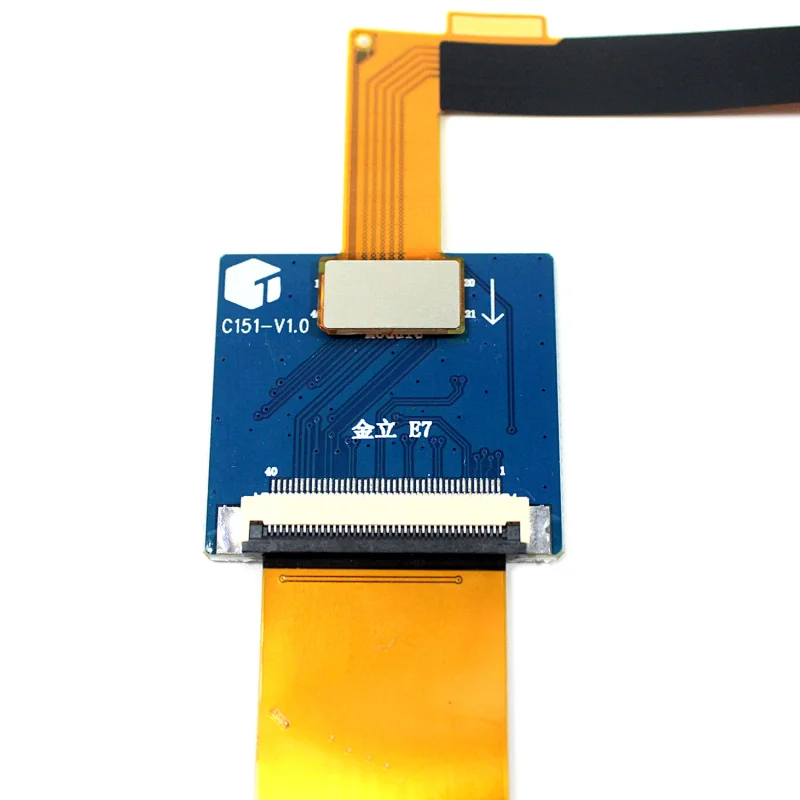

1× Converter Board
