6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board
6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board
6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board
6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board
6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board
6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board
6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board
6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board
6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board
6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board
6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board

6.5inch G065VN01 V2 640X480 TFT-LCD Screen with HDMI VGA+2AV LCD Controller Board

Model NO.
K001898- VS-2662-V1+G065VN01-V2
Quantity:

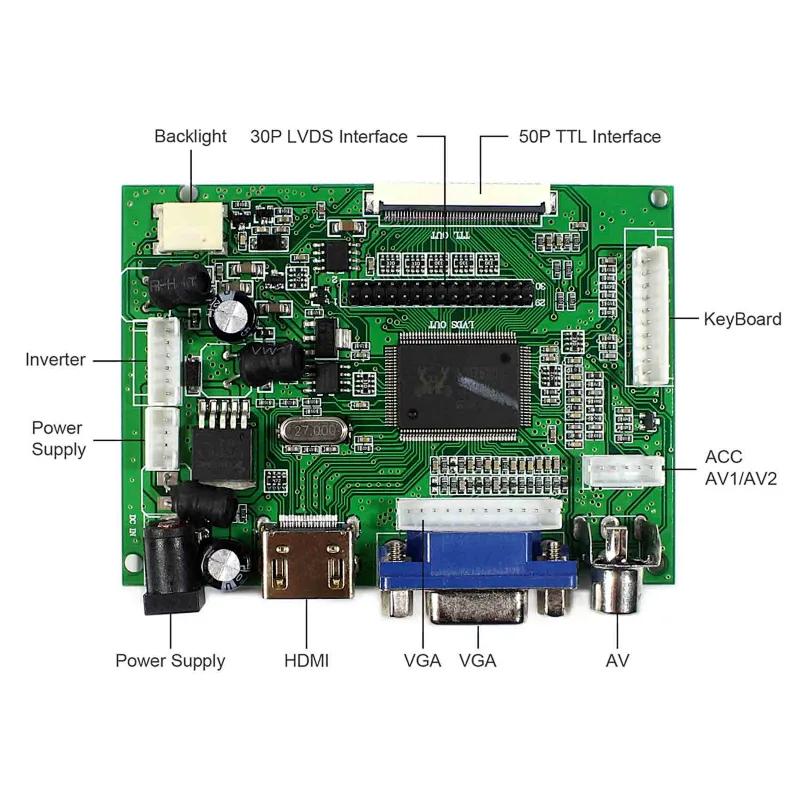

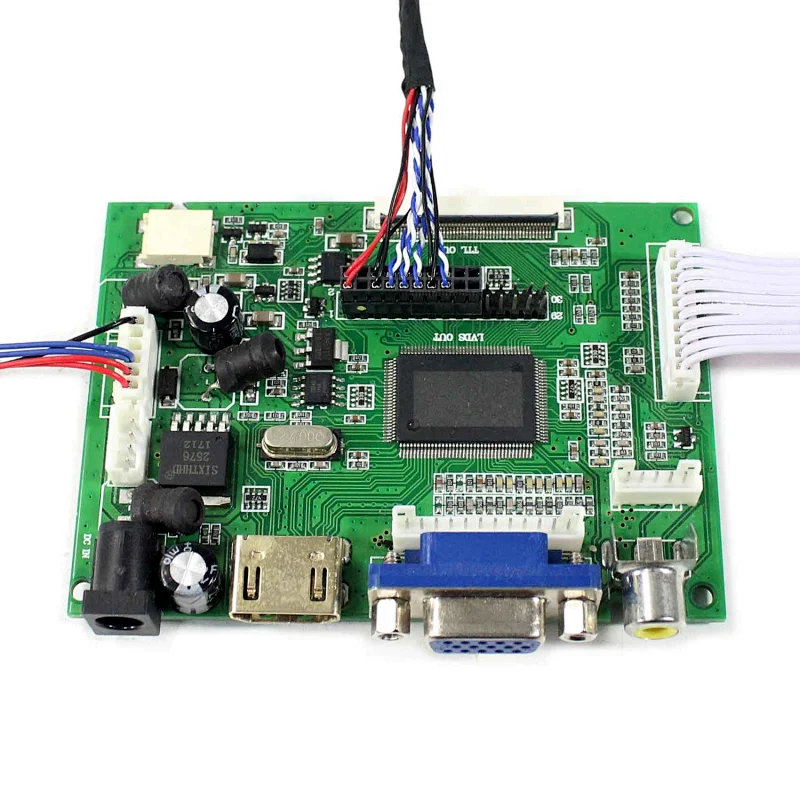

LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
30Pin LVDS Connector for 3.5inch~17inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm

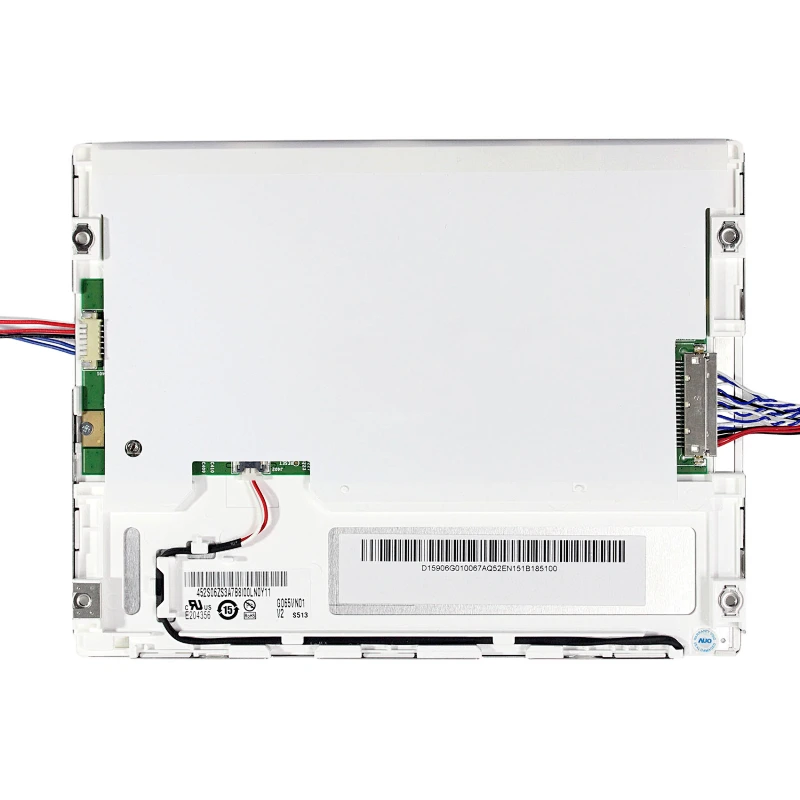

6.5"G065VN01 V2 640X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 640RGB)×480
Outline Size 153 ×118×11.2 (H×V×D)
Display Area 132.48×99.36 (H×V)
Brightness800 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 80/80/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 20 pins   LVDS (1 ch, 6/8-bit) , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

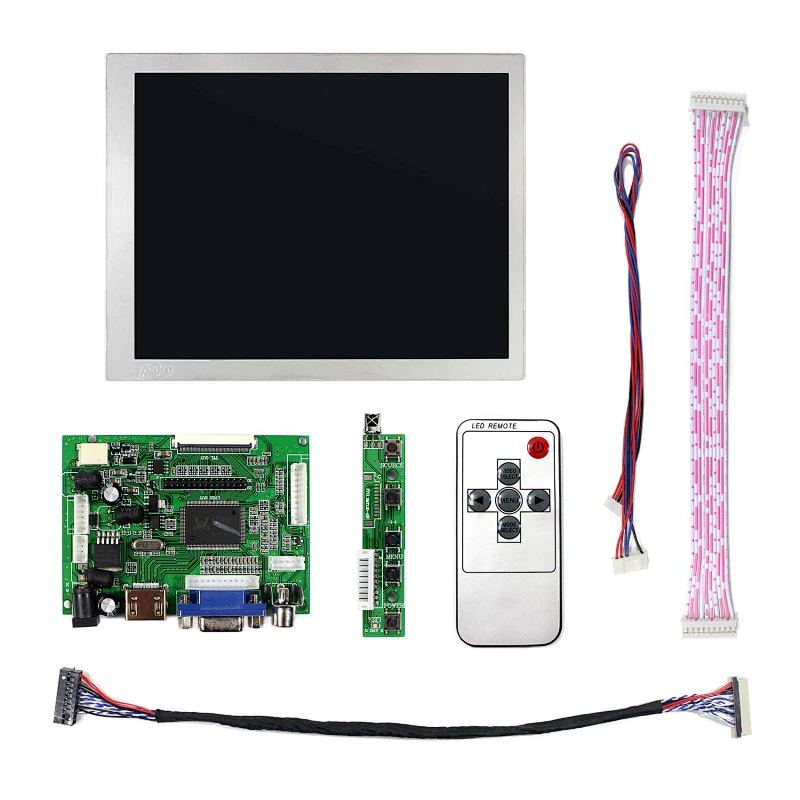

Packing list :
1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
 6.5inch G065VN01 V2 640X480 LCD Screen
 LVDS Cable
 Backlight Cable
 Keyboard With Cable
1× Remote Control (Battery Not included)
