6.2inch HSD062IDW1 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.2inch HSD062IDW1 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.2inch HSD062IDW1 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.2inch HSD062IDW1 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.2inch HSD062IDW1 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.2inch HSD062IDW1 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.2inch HSD062IDW1 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.2inch HSD062IDW1 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.2inch HSD062IDW1 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board

6.2inch HSD062IDW1 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board

Model NO.
K000118-VS-TY2662-HSD062IDW1
Quantity:

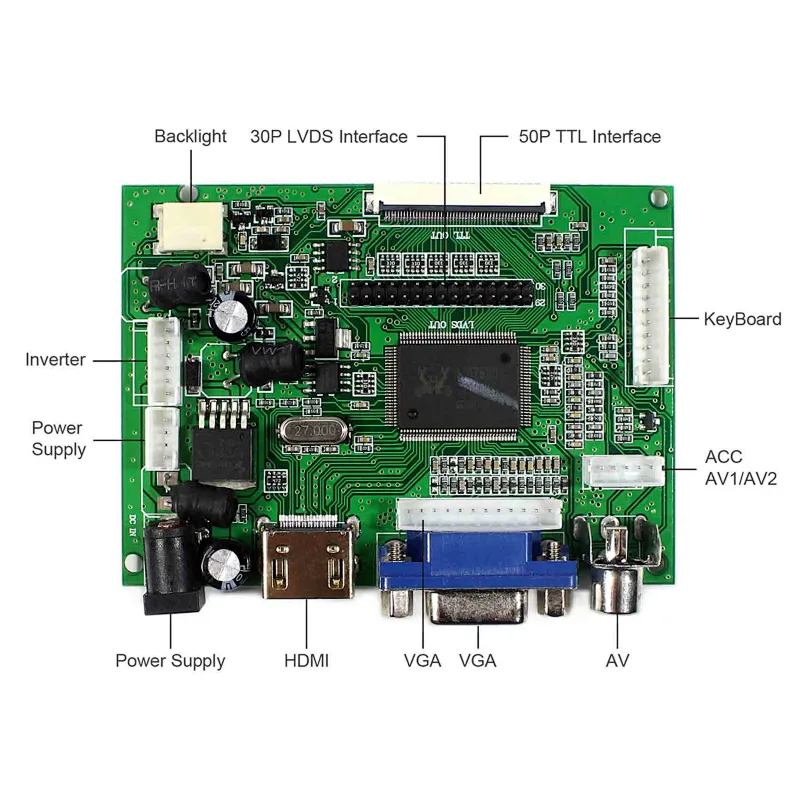

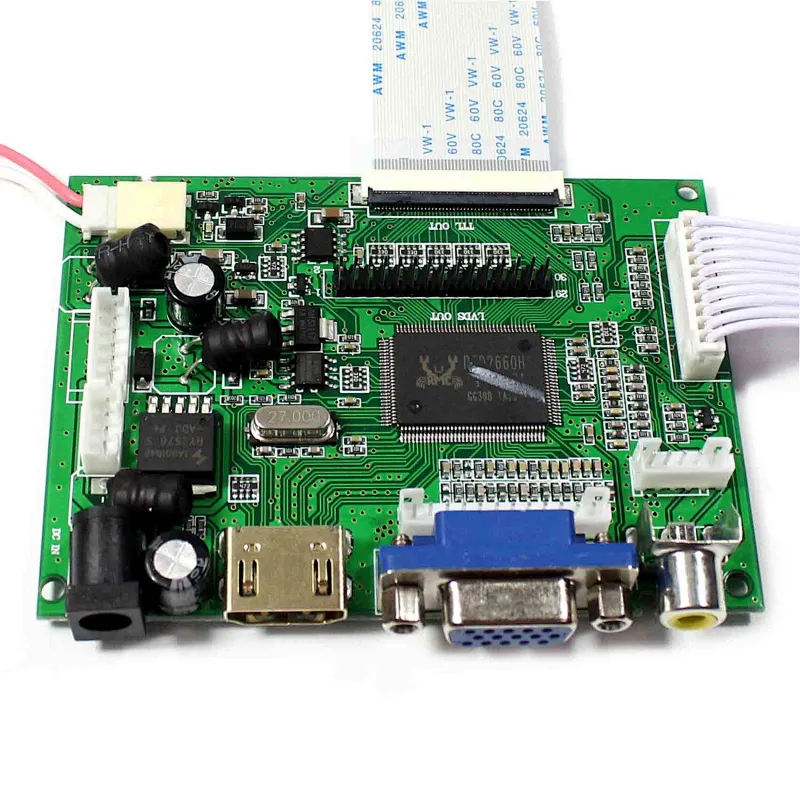

LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm

6.2"HSD062IDW1 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 140.7 ×80.4×6.5 (H×V×D)
Display Area 137.5 ×77.2 (H×V)
Brightness400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 75/75/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6/8-bit) + SPI , FPC , 60 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

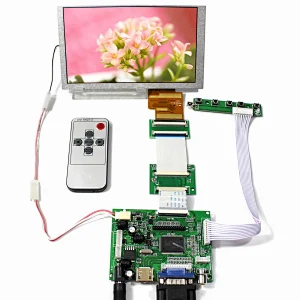

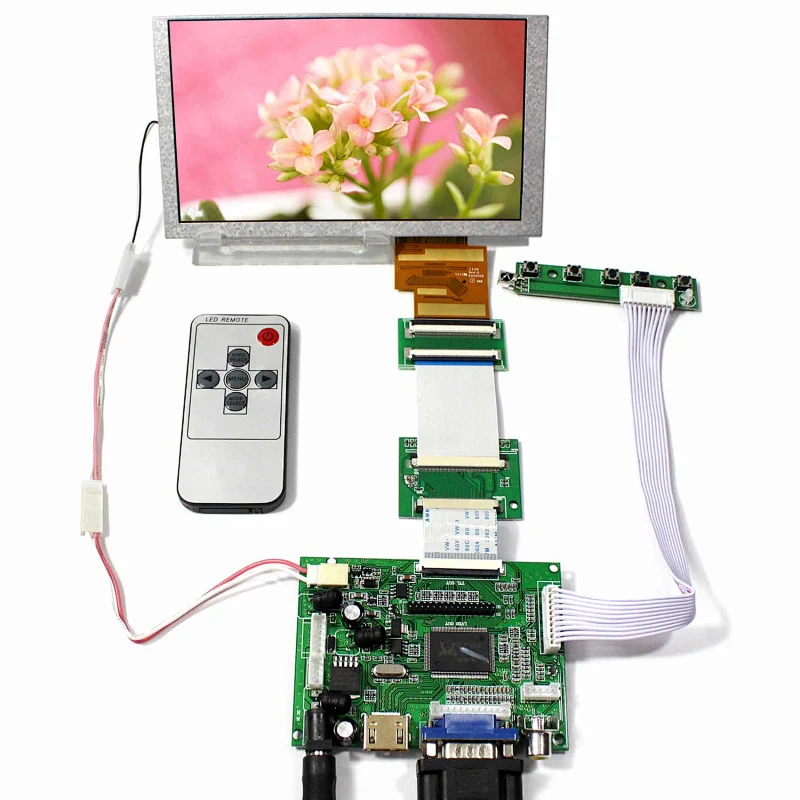

Packing list :
 HDMIVGA+2AV LCD Controller Board VS-TY2662-V1
6.2inch HSD062IDW1 800X480 LCD Screen
 50P to 60P Converter Board
 Keyboard With Cable
1× Remote Control(Battery Not included)
