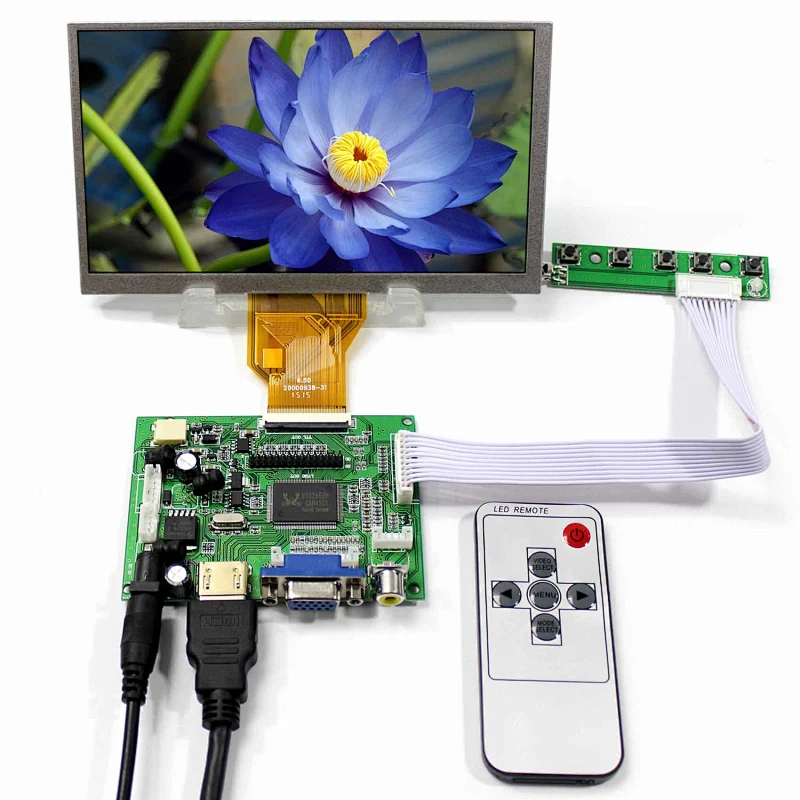

6.5inch AT065TN14 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board

6.5inch AT065TN14 800X480 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board

Model NO.
K000121- VS-TY2662-V1+AT065TN14
Quantity:
LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm

6.5"AT065TN14 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 155.2 × 89.4×5.7 (H×V×D)
Display Area 143.4 × 76.7 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight  WLED
Input Voltage  3.3V (Typ.)

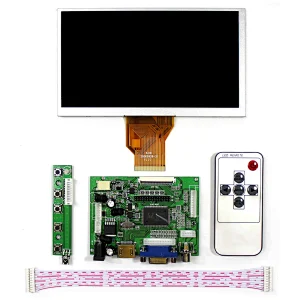

Packing list :
1× HDMIVGA+2AV LCD Controller Board VS-TY2662-V1
1× 6.5inch AT065TN14 800X480 LCD Screen
1× Keyboard With Cable
1× Remote Control(Battery Not included)
