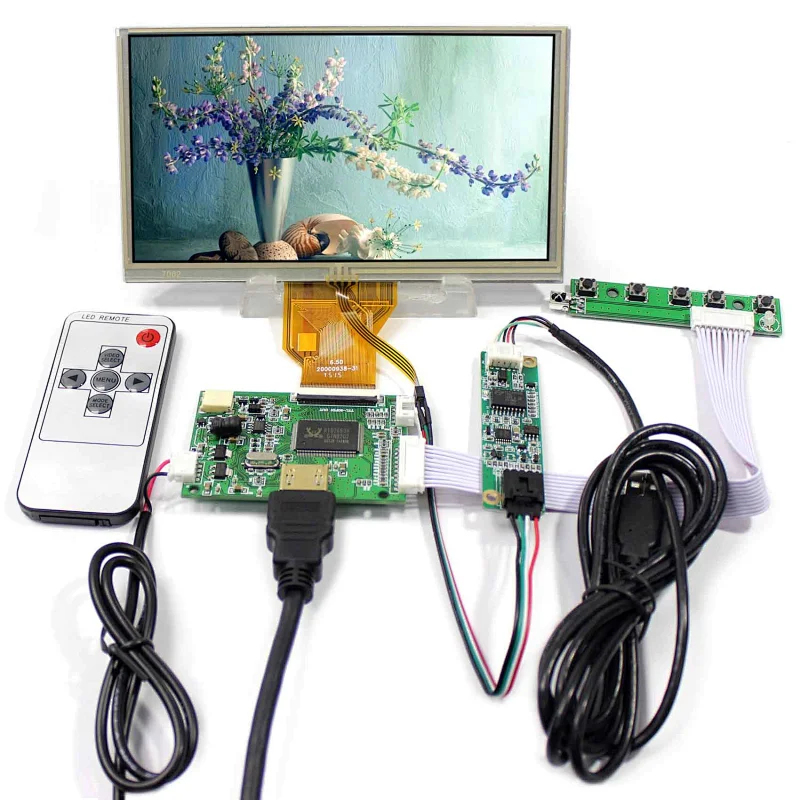

6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Touch Panel HDMI LCD Controller Board
6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Touch Panel HDMI LCD Controller Board
6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Touch Panel HDMI LCD Controller Board
6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Touch Panel HDMI LCD Controller Board
6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Touch Panel HDMI LCD Controller Board
6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Touch Panel HDMI LCD Controller Board
6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Touch Panel HDMI LCD Controller Board

6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Touch Panel HDMI LCD Controller Board

Model NO.
K000963- TY50-V2+AT065T14+TP
Quantity:

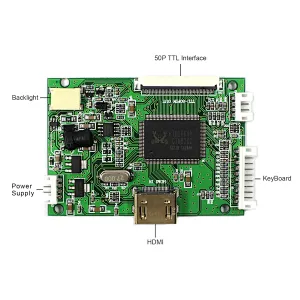

LCD Controller Board:
HDMI LCD Board Work for 50Pin TTL LCD Screen
Input Power Adapter:5Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:70mm x 50mm x 8mm

6.5"AT065TN14 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 155.2 × 89.4×5.7 (H×V×D)
Display Area 143.4 × 76.7 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC

Backlight  WLED
Input Voltage  3.3V (Typ.)

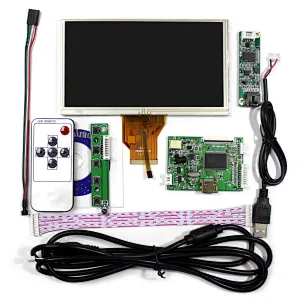

Packing list :
 HDMI LCD Controller Board VS-TY50-V2

1× 6.5inch AT065TN14 800X480 LCD With 4-Wire Resistive Touch Panel
1× Power Cable
 USB Controller Card
 USB Cable
 Extend Touch Cable
 Keyboard With Cable
1× Remote Control(Battery Not included)
