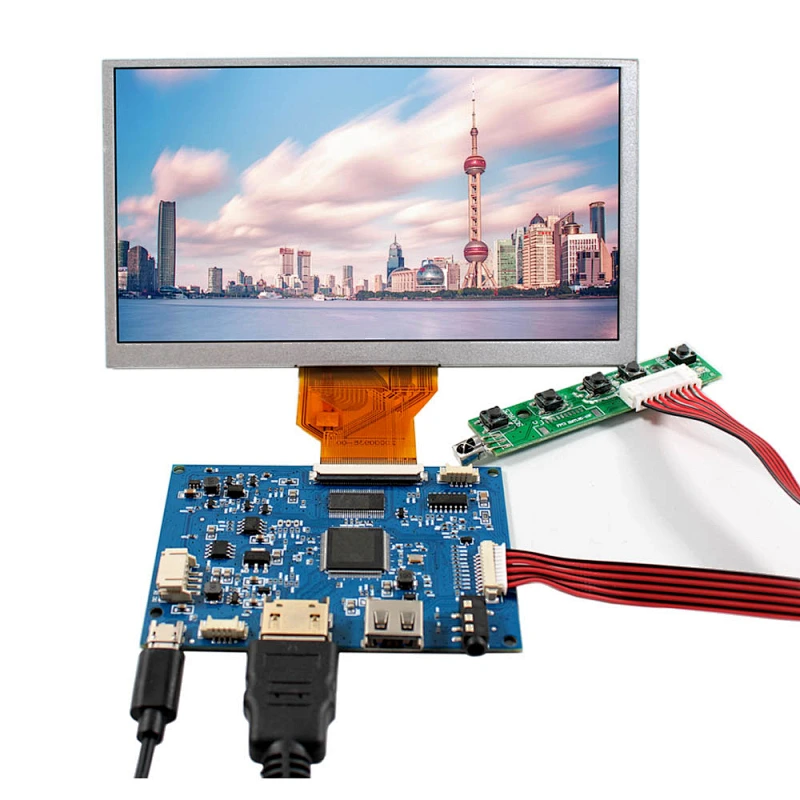

6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board
6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board

6.5inch AT065TN14 800X480 TFT-LCD Screen With HD-MI USB LCD Controller Board

Model NO.
K003014-AT065TN14
Quantity:
LCD Controller Board:
HD-MI USB LCD Board Work for 6.5inch~10.1inch TTL LCD Screen
Input Power Adapter: 5Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI 1.4 USB
USB Port: Support Play Video,
USB Output Voltage 5Vdc max 500mA
Audio：Speaker 8ohm 2W or 4ohm 2W

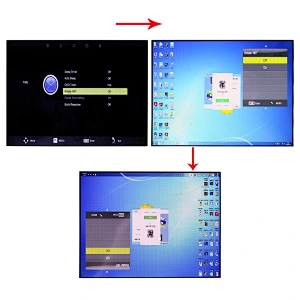

OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 87.2mm x 61.7mm x 8mm

6.5"AT065TN14 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 155.2×89.4×5.7 (H×V×D)mm
Display Area 143.4×76.704 (H×V)mm
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight  WLED
Input Voltage 3.3V (Typ.)

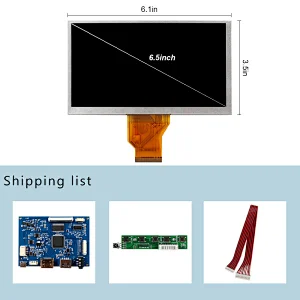

Packing list :
1× HD-MI USB LCD Controller Board VS-TY2660H-V827
PS: Please make sure use 5Vdc power adapter. More than 5Vdc will damage the board.
1×6.5inch AT065TN14 800X480 LCD Screen
1× Keyboard With Cable
