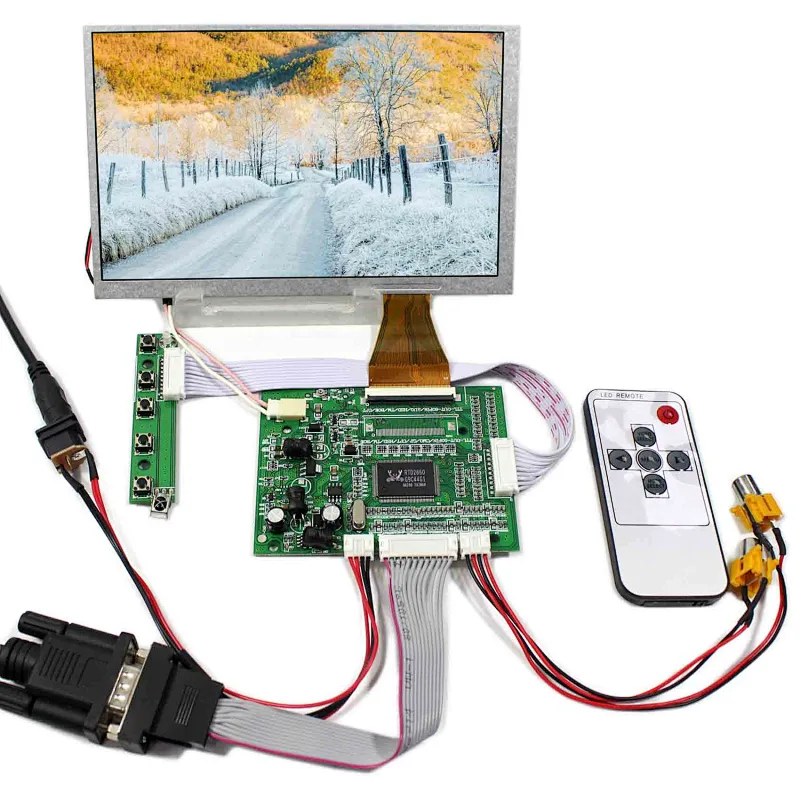

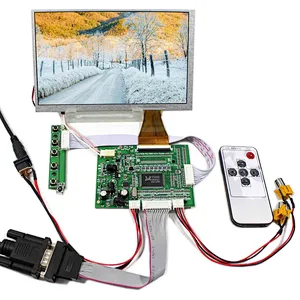

7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board
7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board
7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board
7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board
7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board
7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board
7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board
7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board
7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board
7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board
7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board

7inch A070VW04 800X480 TFT-LCD Screen with VGA+AV LCD Controller Board

Model NO.
K000142-VS-TY5060-V1+A070VW04
Quantity:

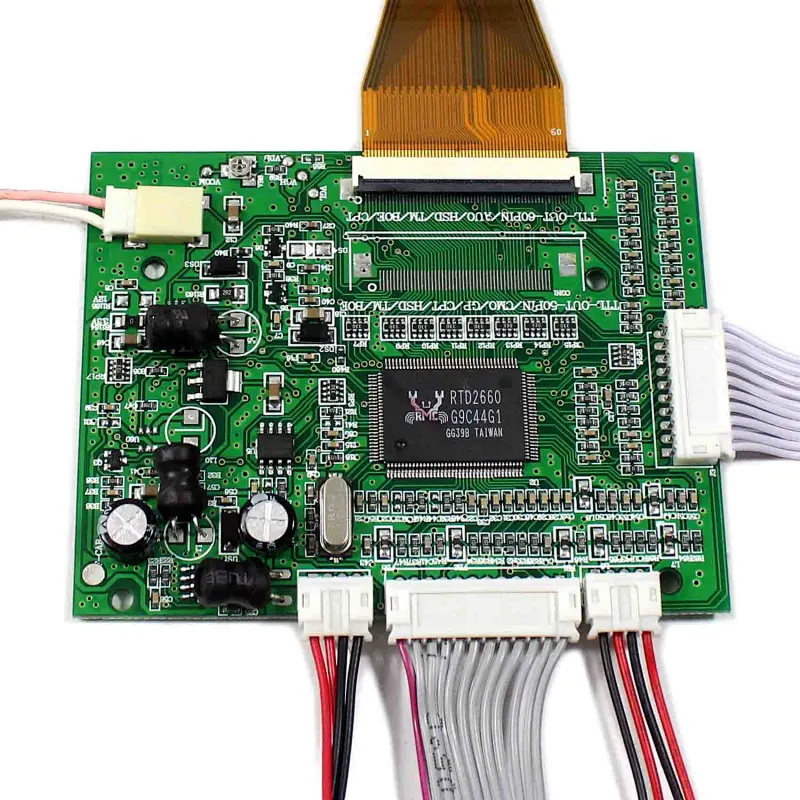

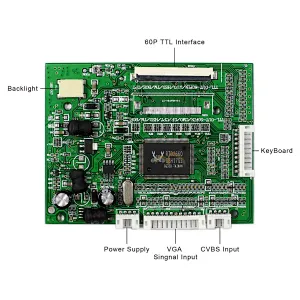

LCD Controller Board:
VGA 2AV LCD Board Work for 50Pin and 60Pin TTL LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:90mm x 70mm x 12mm

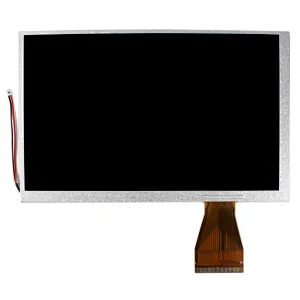

7"LCD Screen A070VW04:
Display Mode N, Normally White, Transmissive

Resolution 800RGB)×480
Outline Size 164 × 103 × 5.4 (H×V×D)
Display Area 152.4 ×91.44 (H×V)
Brightness 200 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 70/70/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6/8-bit) , FPC , 60 pins

Backlight WLED
Input Voltage  3.3/11/18/-7V (Typ.)(VCC/AVDD/VGH/VGL)

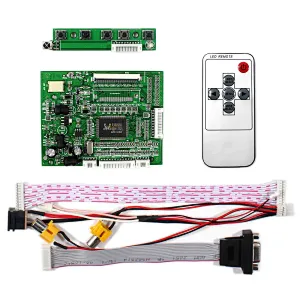

Packing list :
 VGA+AVLCD Controller Board VS-TY5060-V1

 7inch A070VW04 800X480 LCD Screen
 Power Supply Cable

 VGA Cable
 AV Cable
1× Keyboard With Cable
Remote Controller(Battery not included)
