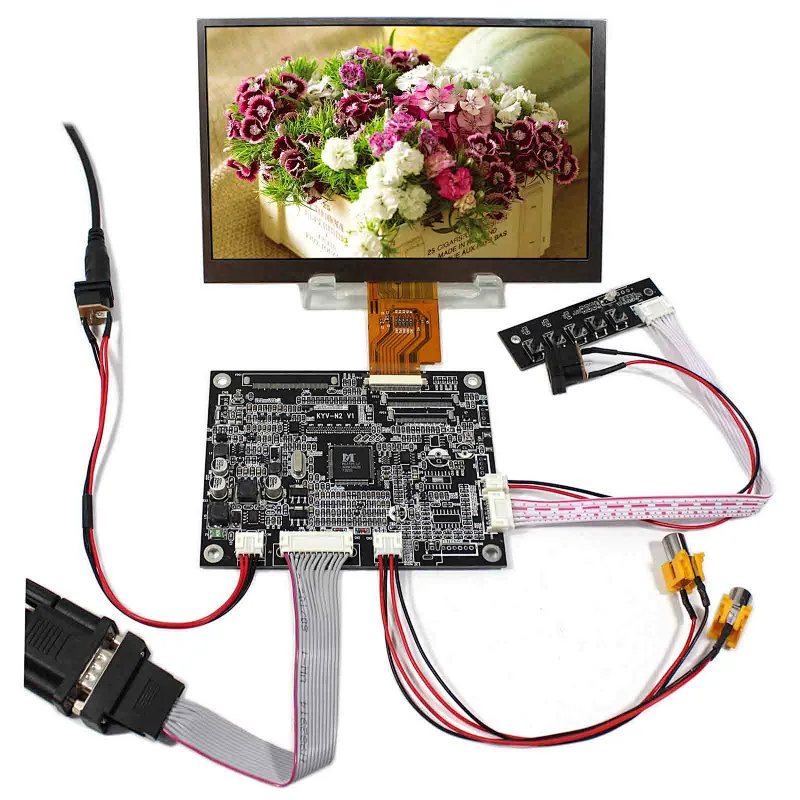

7inch AT070TNA2 1024X600 LCD Screen with VGA+AV LCD Controller Board Support Reversing
7inch AT070TNA2 1024X600 LCD Screen with VGA+AV LCD Controller Board Support Reversing
7inch AT070TNA2 1024X600 LCD Screen with VGA+AV LCD Controller Board Support Reversing
7inch AT070TNA2 1024X600 LCD Screen with VGA+AV LCD Controller Board Support Reversing
7inch AT070TNA2 1024X600 LCD Screen with VGA+AV LCD Controller Board Support Reversing
7inch AT070TNA2 1024X600 LCD Screen with VGA+AV LCD Controller Board Support Reversing
7inch AT070TNA2 1024X600 LCD Screen with VGA+AV LCD Controller Board Support Reversing
7inch AT070TNA2 1024X600 LCD Screen with VGA+AV LCD Controller Board Support Reversing
7inch AT070TNA2 1024X600 LCD Screen with VGA+AV LCD Controller Board Support Reversing

7inch AT070TNA2 1024X600 LCD Screen with VGA+AV LCD Controller Board Support Reversing

Model NO.
K000159-KYV-N2 V1 Support Reversing +AT070TNA2
Quantity:

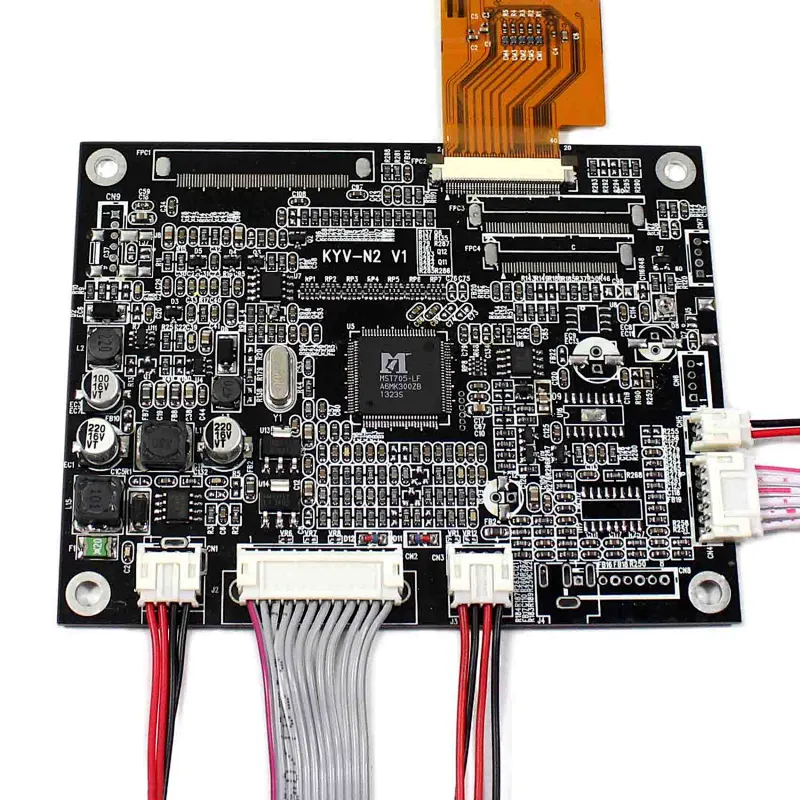

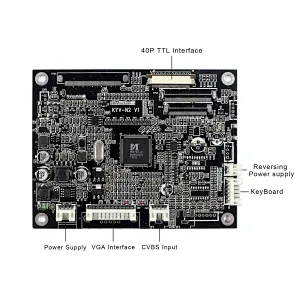

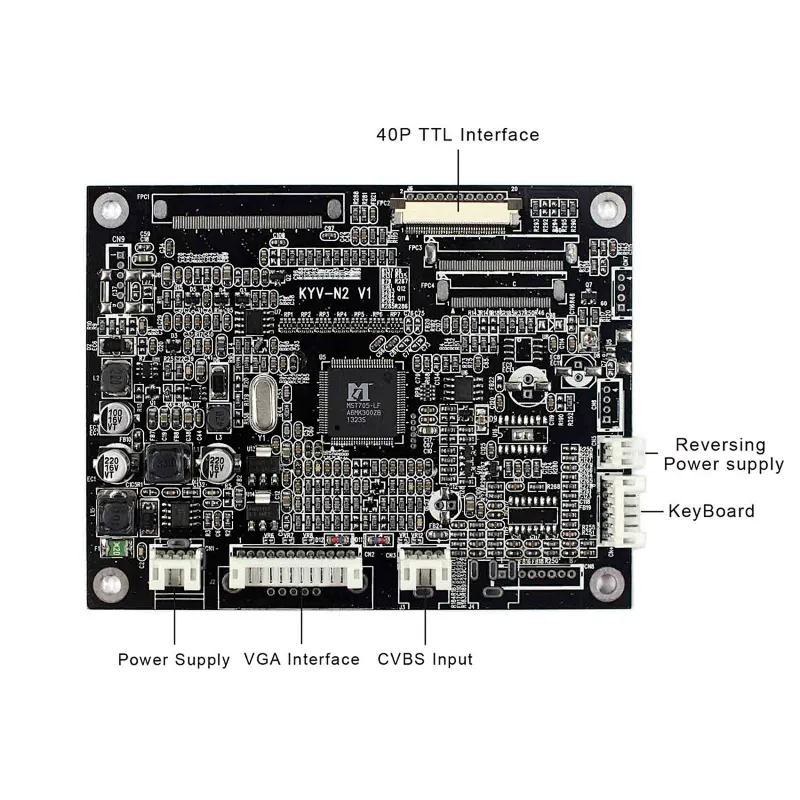

LCD Controller Board:
VGA AV LCD Board Work for 40Pin TTL LCD Screen
Input Power Adapter:12Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Video Input: VGA AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:110mm x 85mm x 10mm
7"AT070TNA2 1024X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 165.75 × 105.39×3.7 (H×V×D)
Display Area 153.6 × 90(H×V)
Brightness 250 cd/m² (Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC

Backlight  WLED
Input Voltage  3.3V (Typ.)

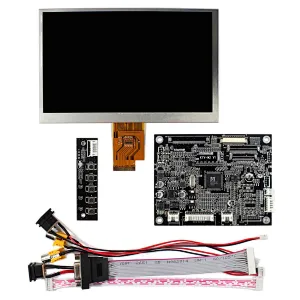

Packing list :

 VGA+AVLCD Controller Board KYV-N2 V1 Support Reversing

7inch AT070TNA2 1024X600 LCD Screen
1× Power Supply Cable
1× Reversing CableConnect To 12V Tt Auto switch To AV2)
1× VGA Cable
1× AV Cable
1× Keyboard With Cable
