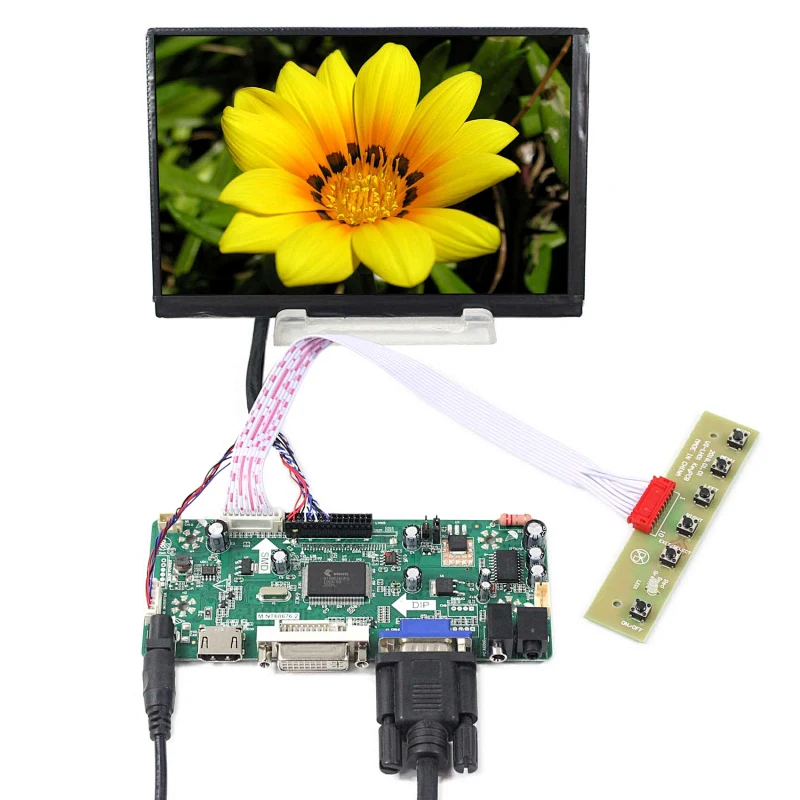

7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board
7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board

7inch 16:10 N070ICG-LD1 1280X800 TFT-LCD Screen With HDMI VGA DVI LCD Controller Board

Model NO.
K000170-M.NT68676.2A+N070ICG-LD1
Quantity:

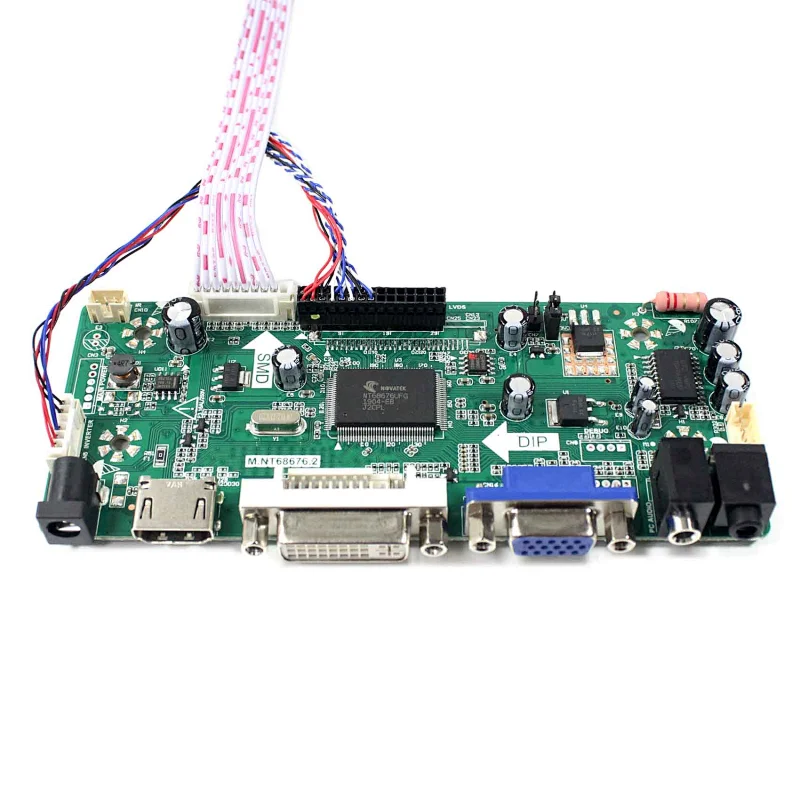

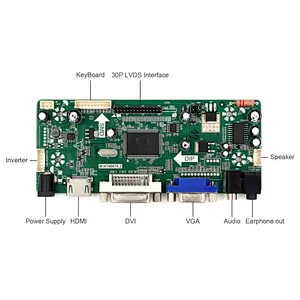

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

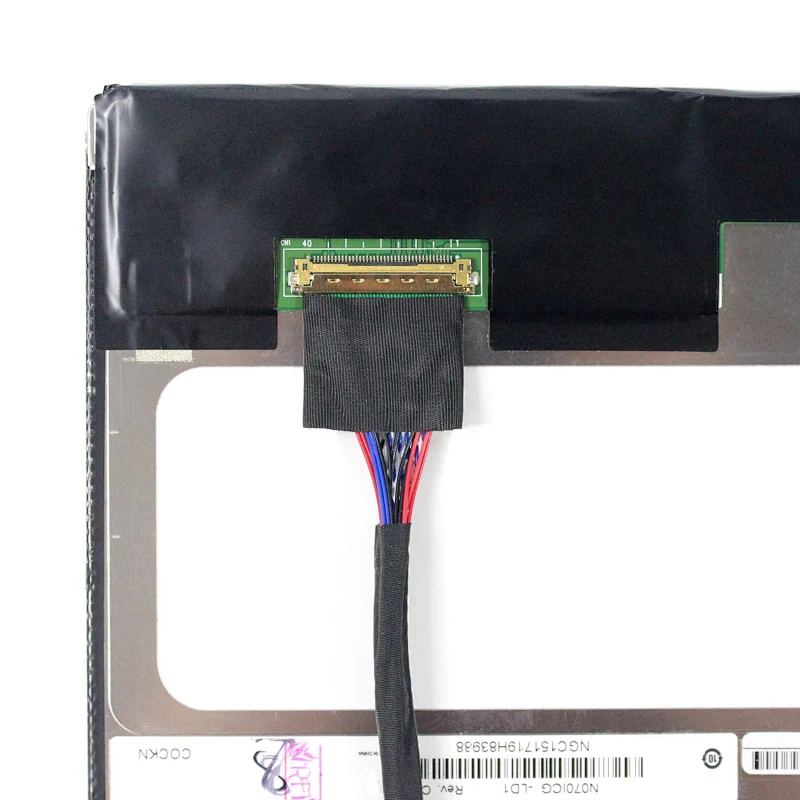

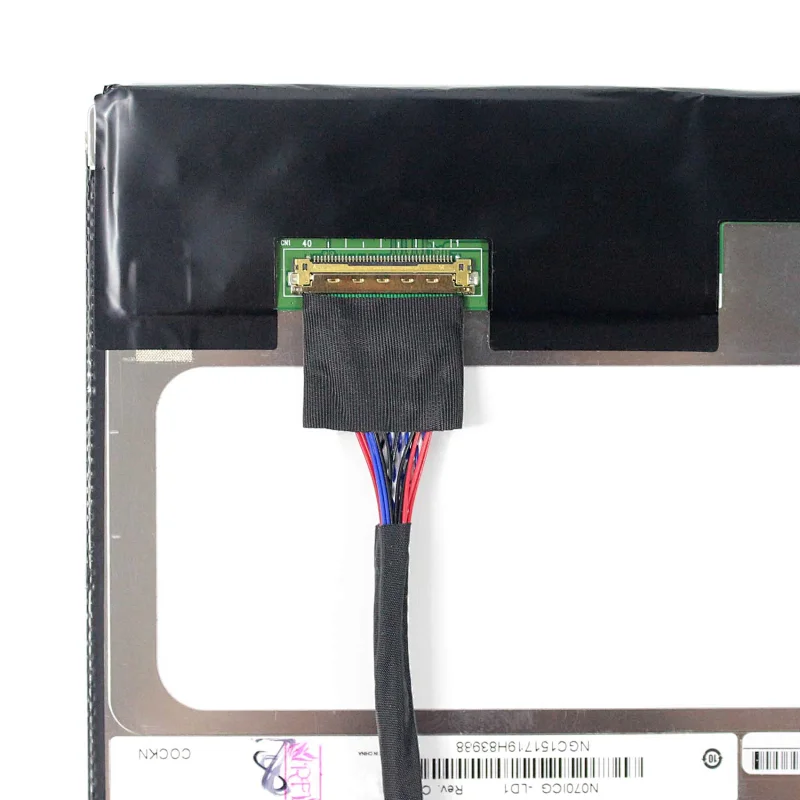

7" N070ICG-LD1 1280X800 LCD Screen:
Display Mode  HS-IPS, Normally Black, Transmissive
Resolution 1280RGB)×800
Outline Size 161 ×107×4.5 (H×V×D)
Display Area 149.76 × 93.6 (H×V)
Brightness400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface  LVDS (1 ch, 6-bit) , Connector , 40 pins
Backlight LED
Input Voltage  3.3V (Typ.)

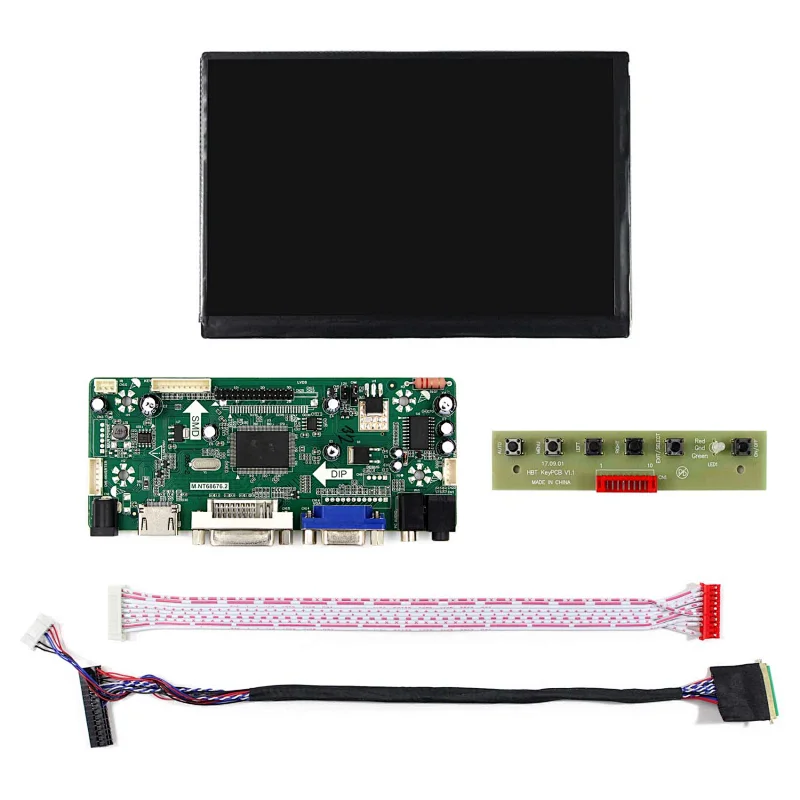

Packing list :
 HDMI VGA DVI LCD Controller Board M.NT68676
 7inch N070ICG-LD1 1280X800 LCD Screen
 LVDS Cable
 Keyboard With Cable
