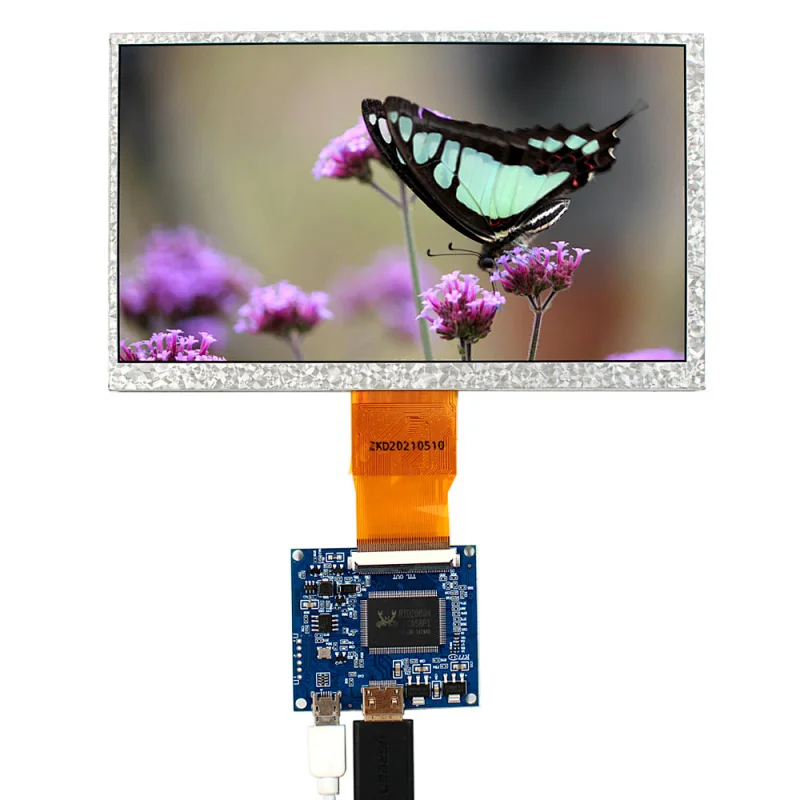

7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board
7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board

7inch VS007T-006A 1024x600 LCD Screen With HDMI-mini LCD Controller Board

Model NO.
K003005- VS-TY2660V1-852 5V+VS070T-006A-650 1024X600 ips
Quantity:
LCD Controller Board:
HDMI-mini LCD Board Work for 50Pin TTL LCD Screen
Input Power Adapter: DP 5V-9V dc More than20W.
Come In Standby Model When Not Input Signal
Video Input: HD-mini
OSD: No

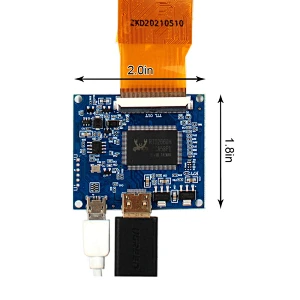

Board Size:52mm x 46mm x 6mm

7"VS070T-006A 1024X600 LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 164.9 × 100×3.5 (H×V×D)
Display Area 154.21 ×85.92(H×V)
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

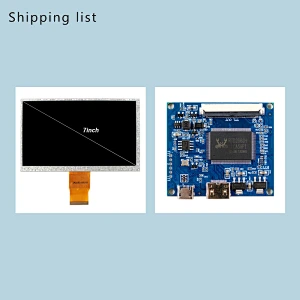

Packing list:
HDMI-mini LCD Controller Board VS-TY2660V1-852
1× 7inch VS007T-006A 1024x600 LCD Screen
