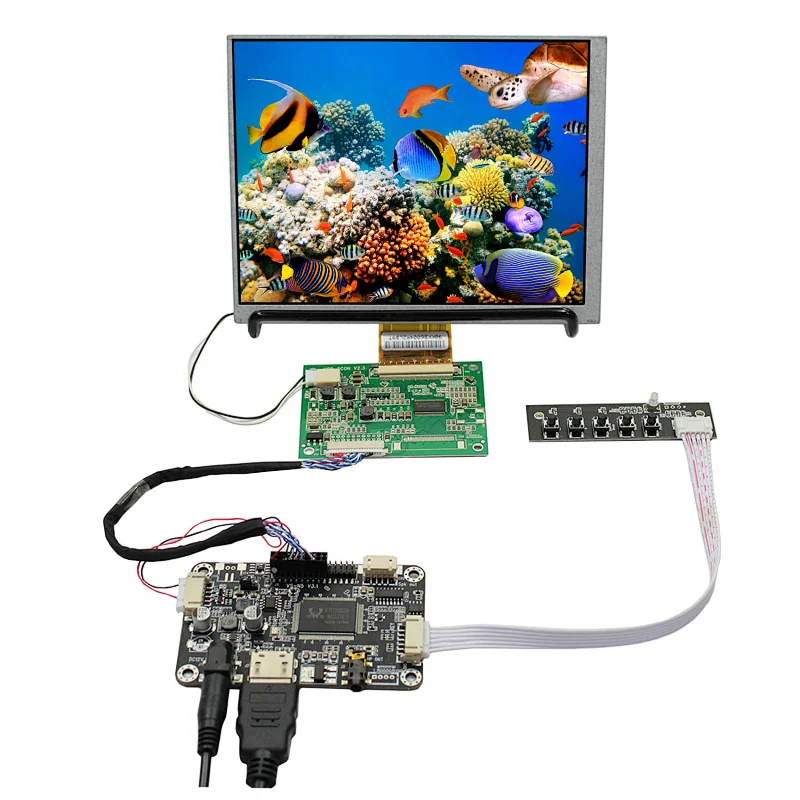

7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board
7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board

7inch CLAA070MA0ACW 800X600 4:3 TFT-LCD Screen With HD-MI Audio LCD Controller Board

Model NO.
K002926-VS-N5V3.1H+CLAA070MA0ACW
Quantity:
LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

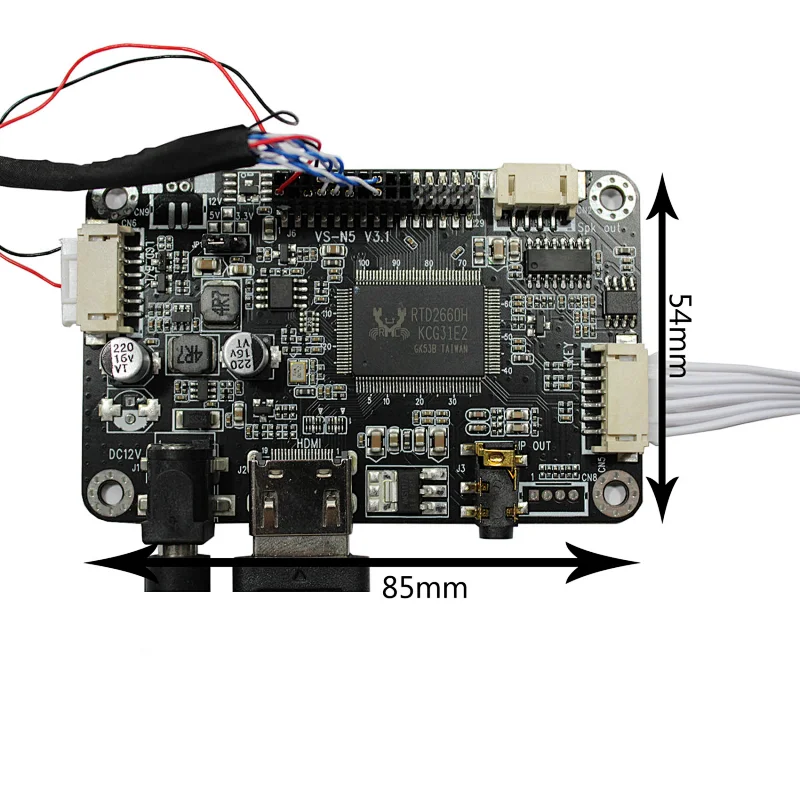

Board Size: 85mm x 54mm x 14mm

7"LCD Screen CLAA070MA0ACW :
Display Mode N, Normally White, Transmissive
Resolution 800RGB)×600
Outline Size 154 × 119.2 × 5.4 (H×V×D)
Display Area 141.6 × 106.2 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6/8-bit) , FPC , 60 pins
Backlight WLED
Input Voltage  3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL)

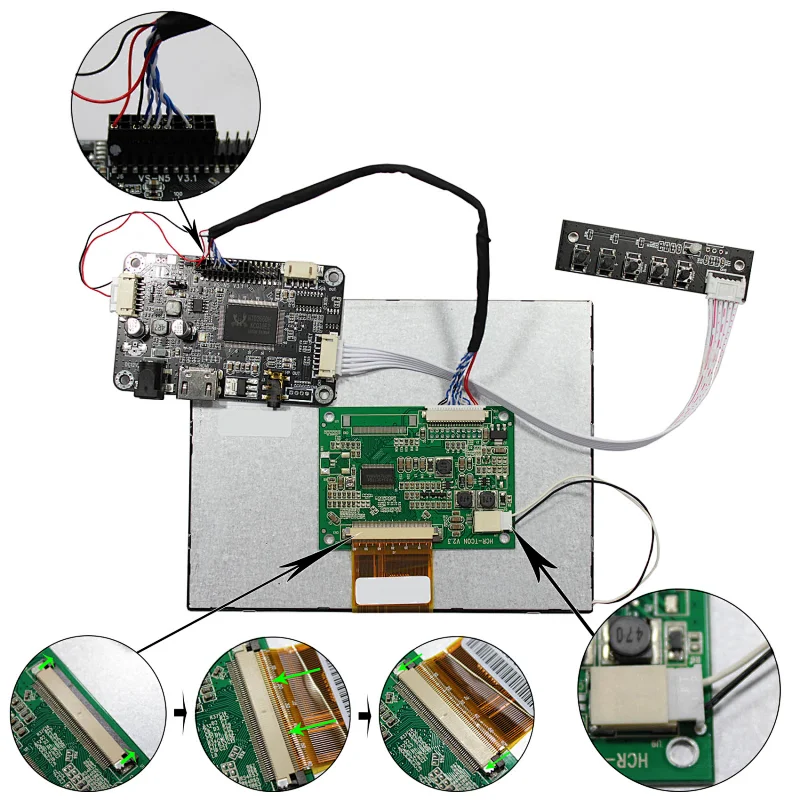

Packing list :
1×HD-MI Audio LCD Controller Board VS-N5V3.1
1×7inch CLAA070MA0ACW 800X600 4:3 LCD Screen

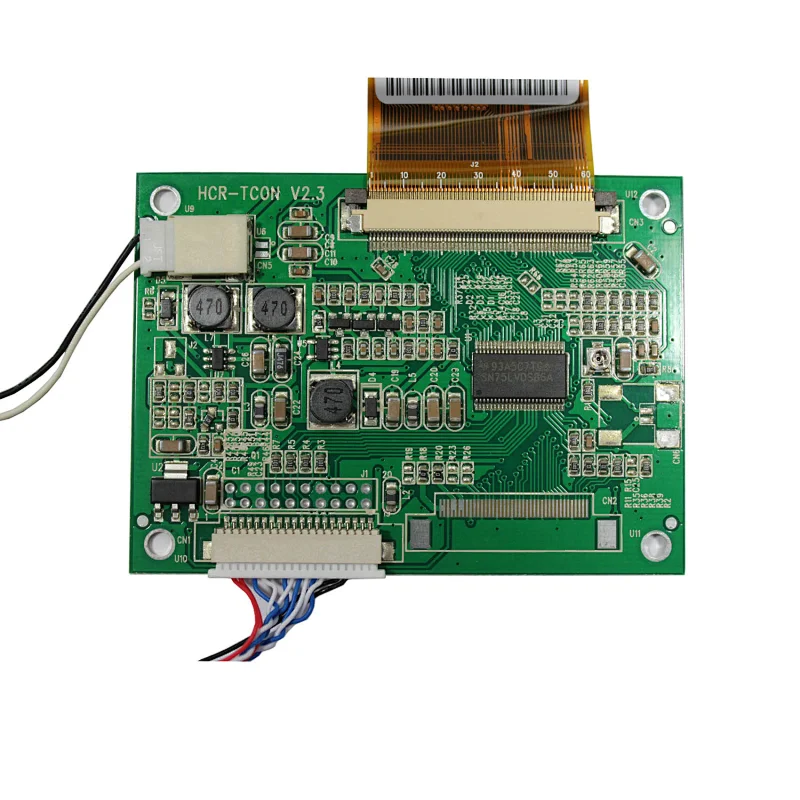

LVDS-TTL Tcon Board HCR-TCON-V2
1× Signal Cable
1× Keyboard With Cable
Remote Controller(Battery not included)
