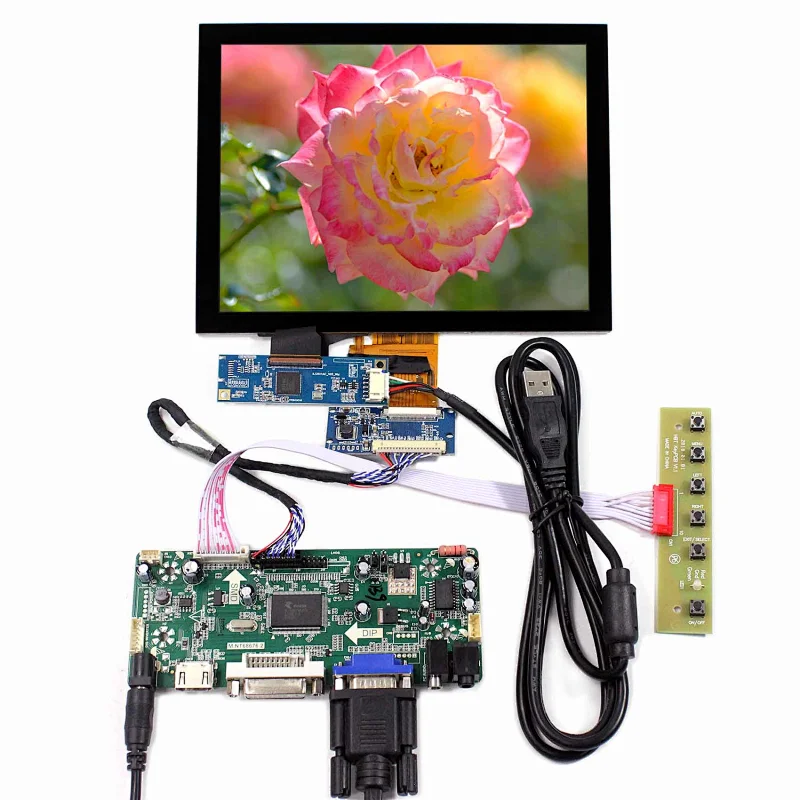

8inch EJ080NA-04C 1024X768 TFT-LCD Screen Capacitive Touch Panel With HDMI VGA DVI LCD Controller Board
8inch EJ080NA-04C 1024X768 TFT-LCD Screen Capacitive Touch Panel With HDMI VGA DVI LCD Controller Board
8inch EJ080NA-04C 1024X768 TFT-LCD Screen Capacitive Touch Panel With HDMI VGA DVI LCD Controller Board
8inch EJ080NA-04C 1024X768 TFT-LCD Screen Capacitive Touch Panel With HDMI VGA DVI LCD Controller Board
8inch EJ080NA-04C 1024X768 TFT-LCD Screen Capacitive Touch Panel With HDMI VGA DVI LCD Controller Board
8inch EJ080NA-04C 1024X768 TFT-LCD Screen Capacitive Touch Panel With HDMI VGA DVI LCD Controller Board
8inch EJ080NA-04C 1024X768 TFT-LCD Screen Capacitive Touch Panel With HDMI VGA DVI LCD Controller Board
8inch EJ080NA-04C 1024X768 TFT-LCD Screen Capacitive Touch Panel With HDMI VGA DVI LCD Controller Board
8inch EJ080NA-04C 1024X768 TFT-LCD Screen Capacitive Touch Panel With HDMI VGA DVI LCD Controller Board

8inch EJ080NA-04C 1024X768 TFT-LCD Screen Capacitive Touch Panel With HDMI VGA DVI LCD Controller Board

Model NO.
K001805-M.NT68676+EJ080NA-04C+VS080TC01-A1
Quantity:

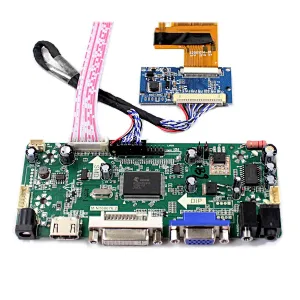

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
8" EJ080NA-04C 1024X768 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×768
Outline Size 183 × 141×3.7 (H×V×D)
Display Area 162×121.5(H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/75/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list :
1× HDMI VGA DVI LCD Controller Board M.NT68676
8inch EJ080NA-04C 1024X768LCD With Capacitive Touch Panel VS080TC-A1

 USB Controller Card
 USB Cable
 Keyboard With Cable
