8inch ZJ080NA-08A 1024X600 TFT-LCD Screen 8inch Resistive Touch Panel with HDMI+VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 TFT-LCD Screen 8inch Resistive Touch Panel with HDMI+VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 TFT-LCD Screen 8inch Resistive Touch Panel with HDMI+VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 TFT-LCD Screen 8inch Resistive Touch Panel with HDMI+VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 TFT-LCD Screen 8inch Resistive Touch Panel with HDMI+VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 TFT-LCD Screen 8inch Resistive Touch Panel with HDMI+VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 TFT-LCD Screen 8inch Resistive Touch Panel with HDMI+VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 TFT-LCD Screen 8inch Resistive Touch Panel with HDMI+VGA+2AV LCD Controller Board
8inch ZJ080NA-08A 1024X600 TFT-LCD Screen 8inch Resistive Touch Panel with HDMI+VGA+2AV LCD Controller Board

8inch ZJ080NA-08A 1024X600 TFT-LCD Screen 8inch Resistive Touch Panel with HDMI+VGA+2AV LCD Controller Board

Model NO.
K001394- VS-TY2662-V5+ZJ080NA-08A+TP
Quantity:

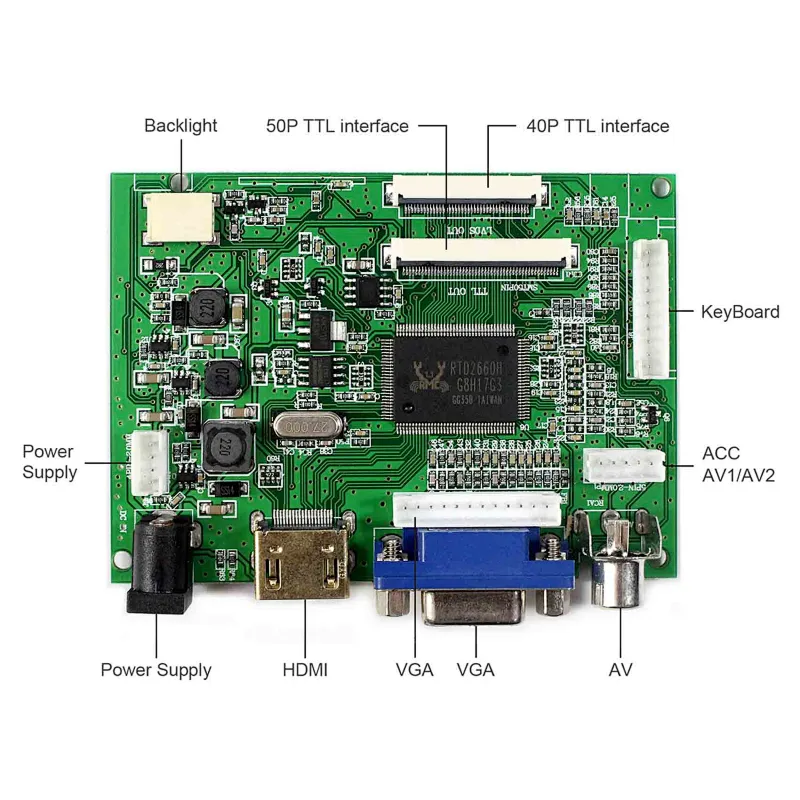

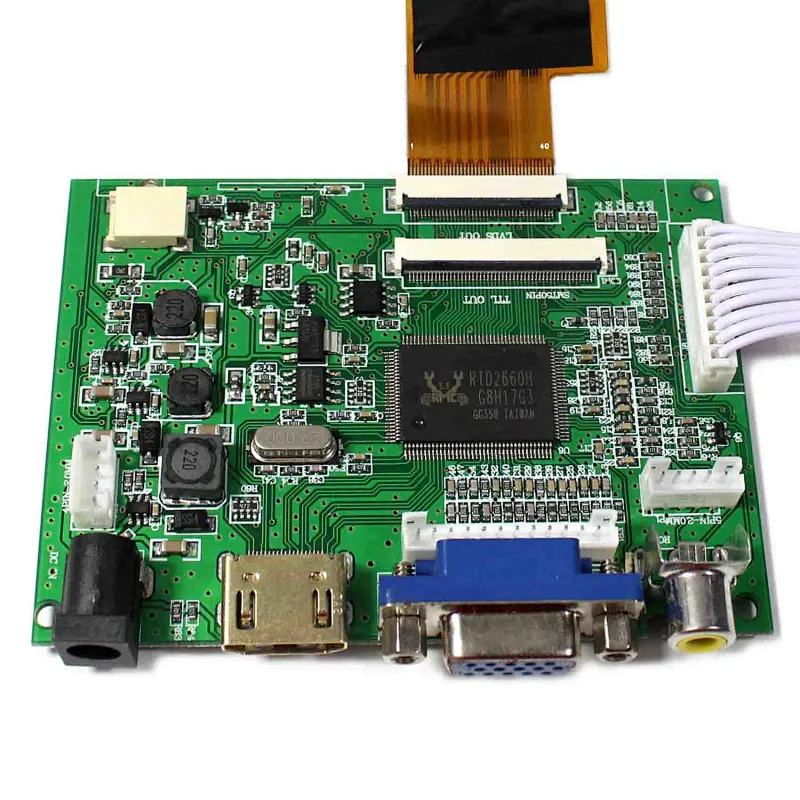

LCD Controller Board:
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
8" ZJ080NA-08A 1024X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024(RGB)×600
Outline Size 192.8 × 116.9×6.7 (H×V×D)
Display Area 176.64 × 99.36(H×V)
Brightness500 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage3.3V (Typ.)

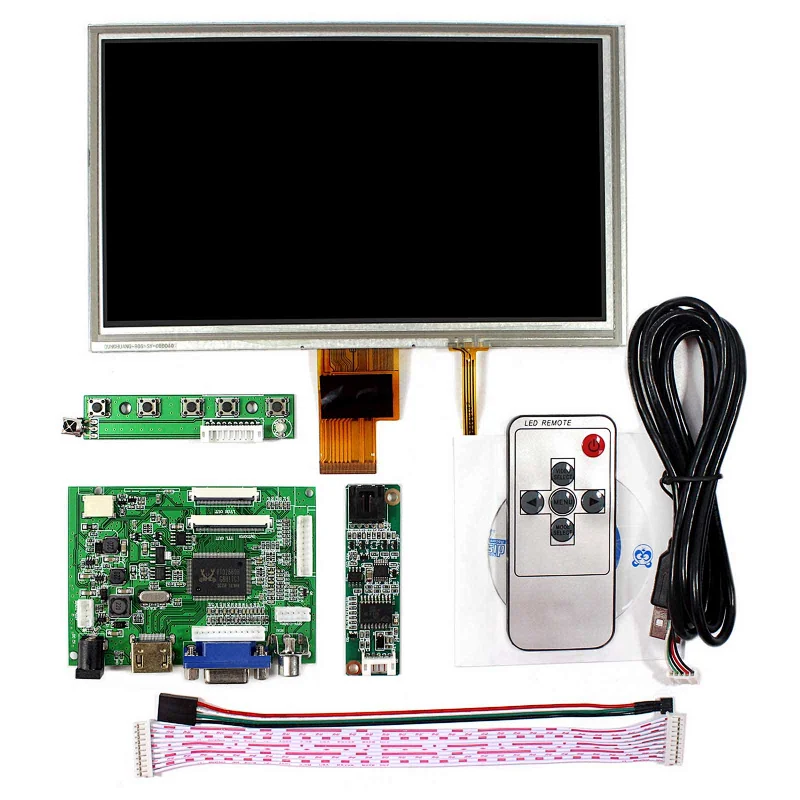

Packing list :
 HDMI+VGA+2AV LCD Controller Board VS-TY2662-V809
8inch ZJ080NA-08A 1024X600 LCD Screen With Resistive Touch Panel
1× Keyboard With Cable
 USB Controller Card
 USB Cable
 Extend Touch Cable
1× Remote Control (Battery Not included)
