8inch ZJ080NA-08A 1024X600 LCD With Touch Panel with HDMI VGA DVI LCD Controller Board 8inch ZJ080NA-08A 1024X600 8inch ZJ080NA-08A ZJ080NA-08A lcd with touch panel

8inch ZJ080NA-08A 1024X600 LCD With Touch Panel with HDMI VGA DVI LCD Controller Board 8inch ZJ080NA-08A 1024X600 8inch ZJ080NA-08A ZJ080NA-08A lcd with touch panel

Model NO.: K000647- M.NT68676+VS-TCON40-V1+ZJ080NA-08A+TP
Delivery: EXW or FOB ShenZhen
Minimum order quantity: 1 piece
Supply Ability: 5000 piece / Day
Country of Origin: CHINA
Stock Time: 3-7 Days

Quantity:

Product Description

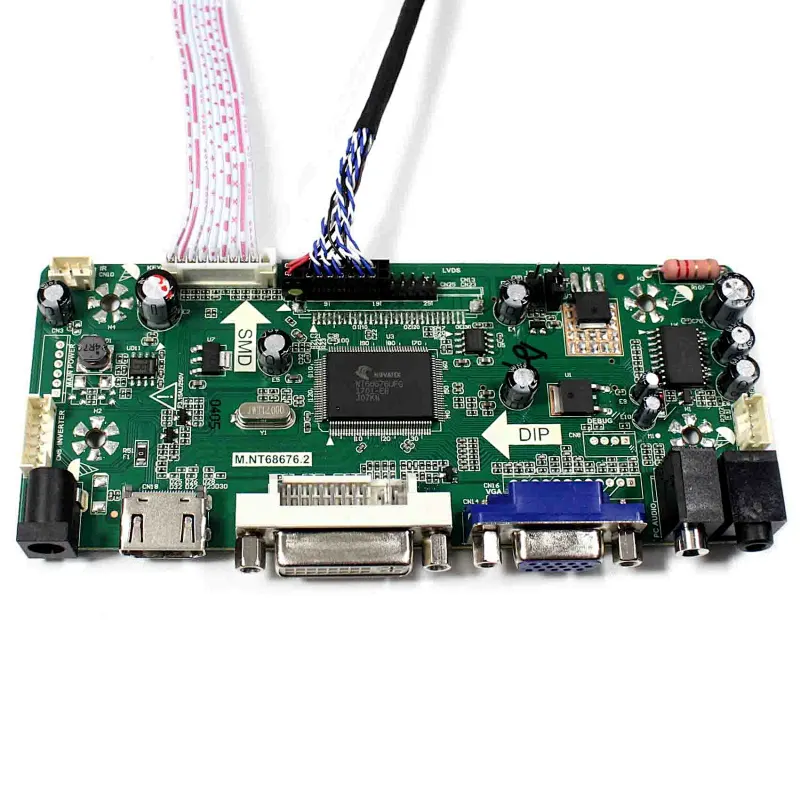

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 3A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:125mm x 58mm x 17mm

8" ZJ080NA-08A 1024X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 192.8 × 116.9×6.7 (H×V×D)
Display Area 176.64 × 99.36(H×V)
Brightness500 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)

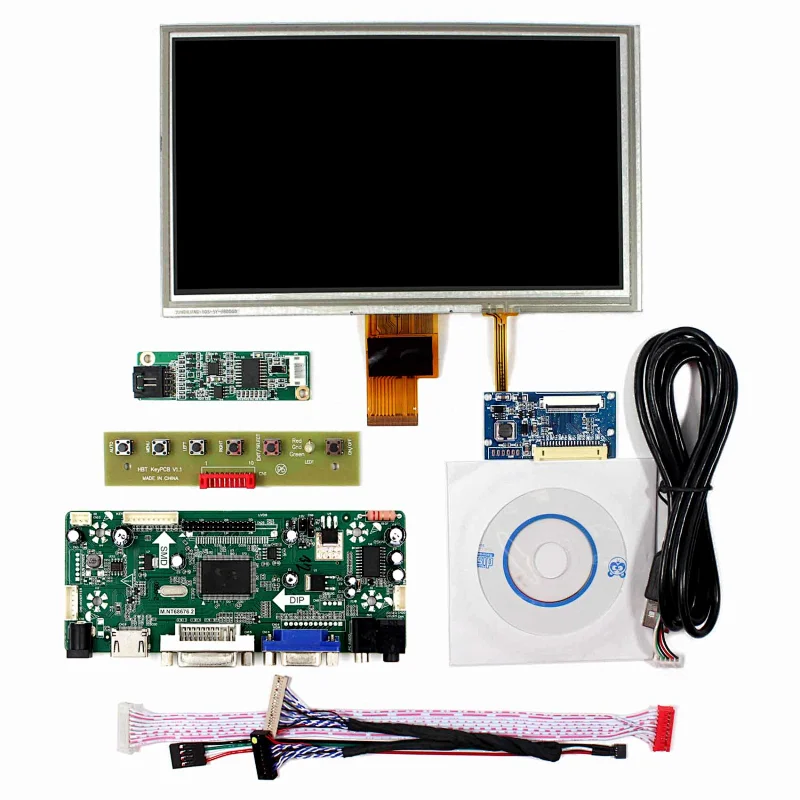

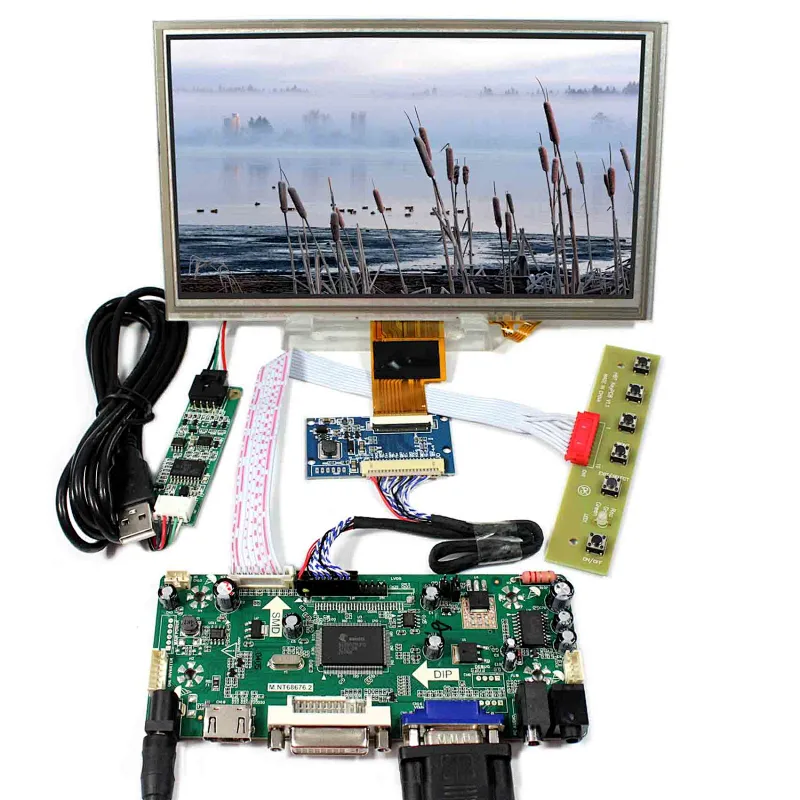

Packing list :
1× HDMI VGA DVI LCD Controller Board M.NT68676
1×8inch ZJ080NA-08A 1024X600 LCDWith Touch Panel
1× Tcon Board VS-TCON40-V1
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
