Model NO.
K002230- VS-RTD2556HV-V1+VVX09F035M10 8.9寸1920x1200
Quantity:
LCD Controller Board:
HDMI VGA Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI PC-Audio In
Audio Output: EarphoneSpeaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English
Board Size: 107mm x 55mm x 16mm

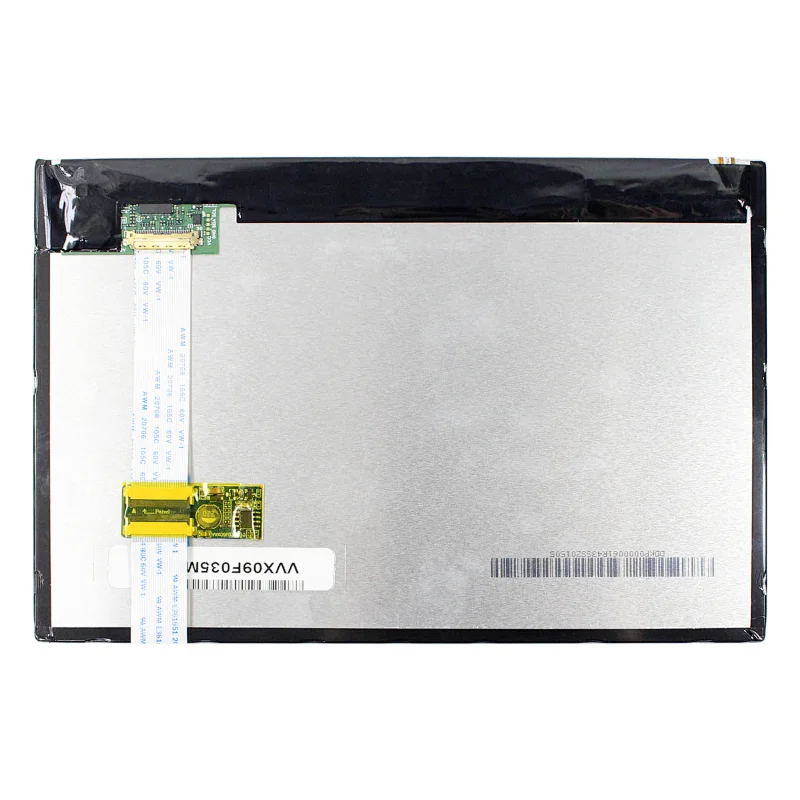

8.9"LCD Screen VVX09F035M10
Display Mode  IPS-Pro, Normally Black, Transmissive
Resolution 1920RGB)×1200
Outline Size 203.5(W)×135.9(H) ×4.8(D) mm
Display Area 191.52(W)×119.7(H) mm
Brightness350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage  3.3V (Typ.)

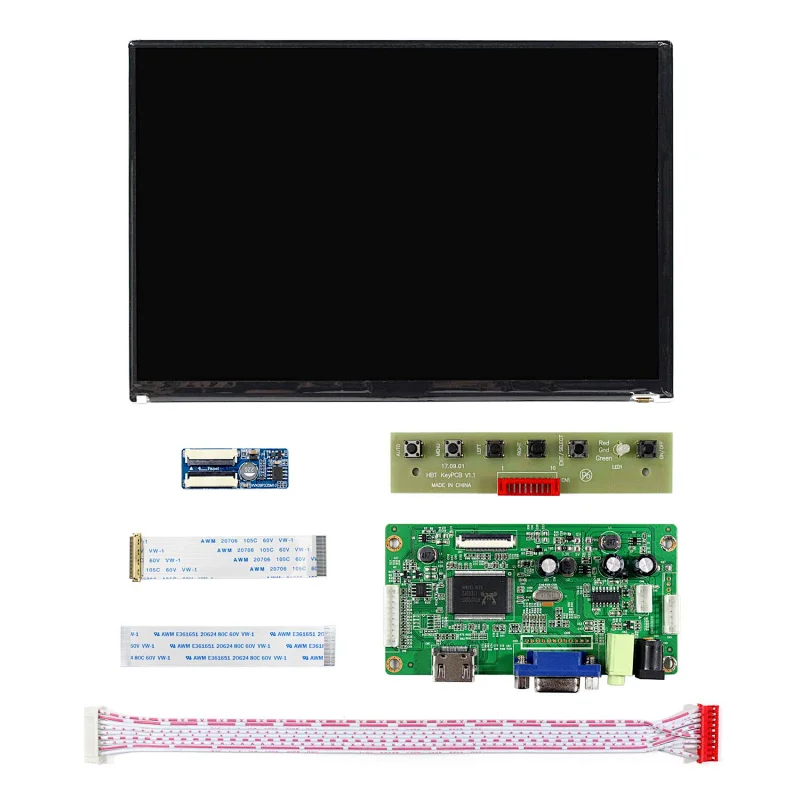

Packing list :
 HDMI VGA LCD Controller Board VS-RTD2556HV-V1
 8.9inchVVX09F035M101920X1200 IPS LCD Screen

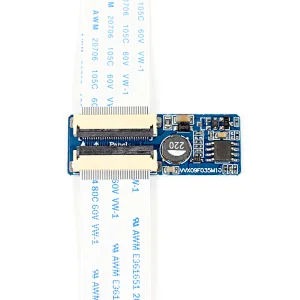

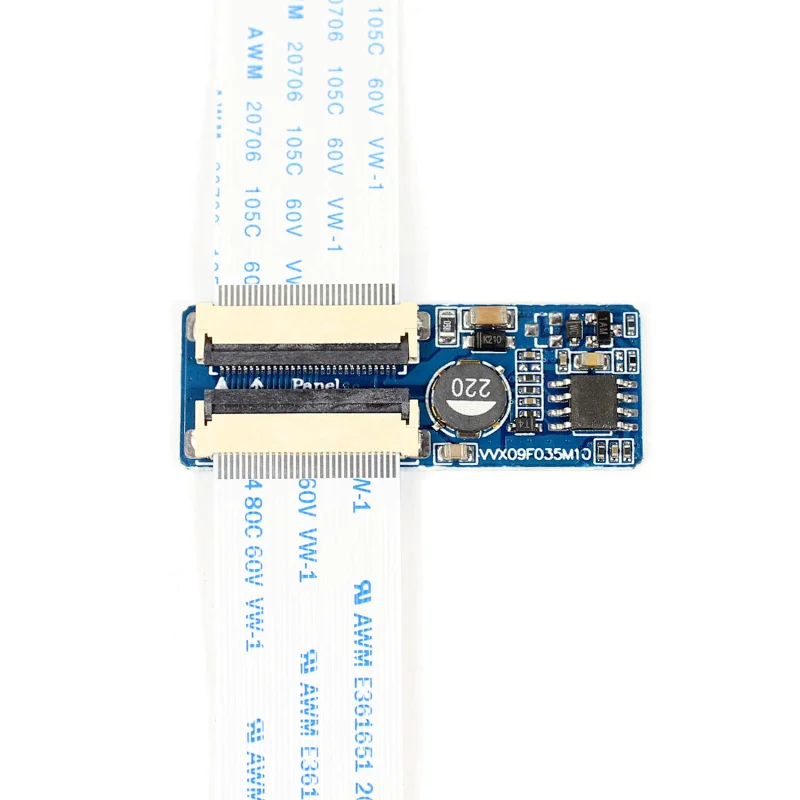

Converter Board

1× Signal Cable
1× Keyboard With Cable
