Model NO.
K000666- VS-TY50-V2+AT090TN10+VS090TP-A1
Quantity:

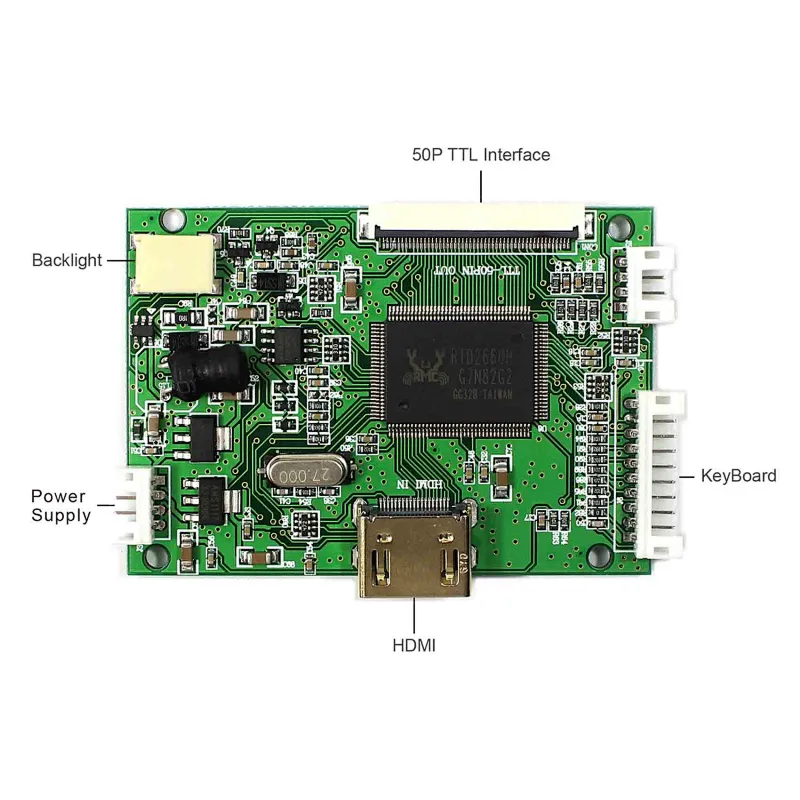

LCD Controller Board:
HDMI LCD Board Work for 50Pin TTL LCD Screen
Input Power Adapter:5Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:70mm x 50mm x 8mm
9"AT090TN10 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 211.1× 126.5×5.7 (H×V×D)
Display Area 198 ×111.7 (H×V)
Brightness450 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC

Backlight  WLED
Input Voltage  3.3V (Typ.)

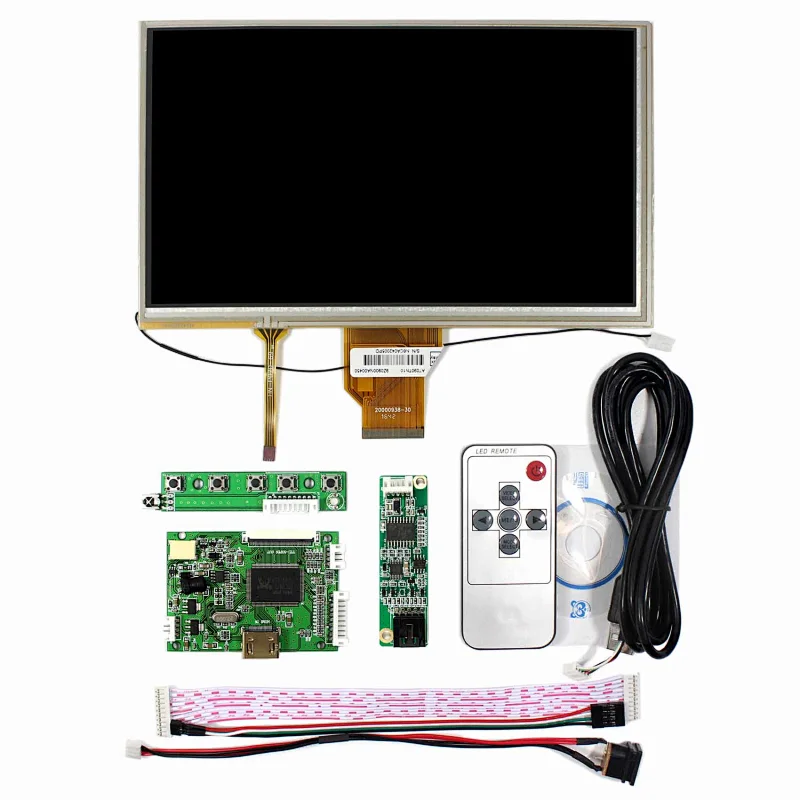

Packing list :
 HDMI LCD Controller Board VS-TY50-V2

9inch AT090TN10 800X480 LCD With Touch Panel VS090TP-A1
 USB Controller Card
 USB Cable
 Extend Touch Cable
1× Power Supply Cable
 Keyboard With Cable
1× Remote Control(Battery Not included)
