Model NO.
K003016-5V+AT090TN10
Quantity:

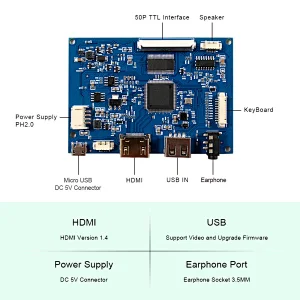

LCD Controller Board:
HD-MI VGA AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HD-MI Port Support Transform Audio Compatible With HD-MI 1.3/1.4HDCP 1.2
USB Support Video
Video Input: HD-MI  VGA  AV USB
Audio Input: HD-MI PC-Audio
Audio Output: Speaker Connector

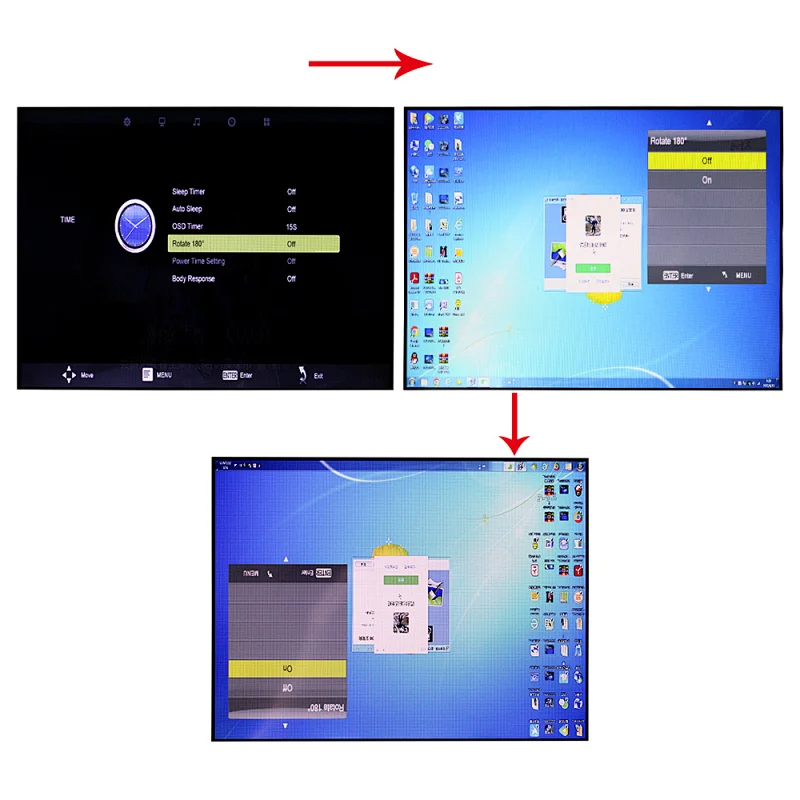

OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

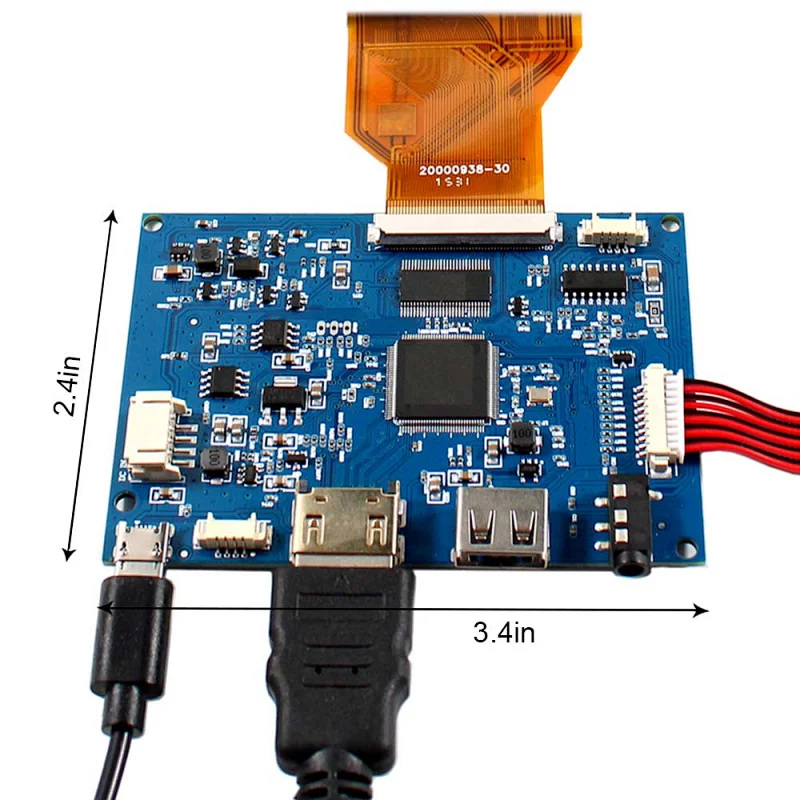

Board Size: 118mm x 54mm x 17mm

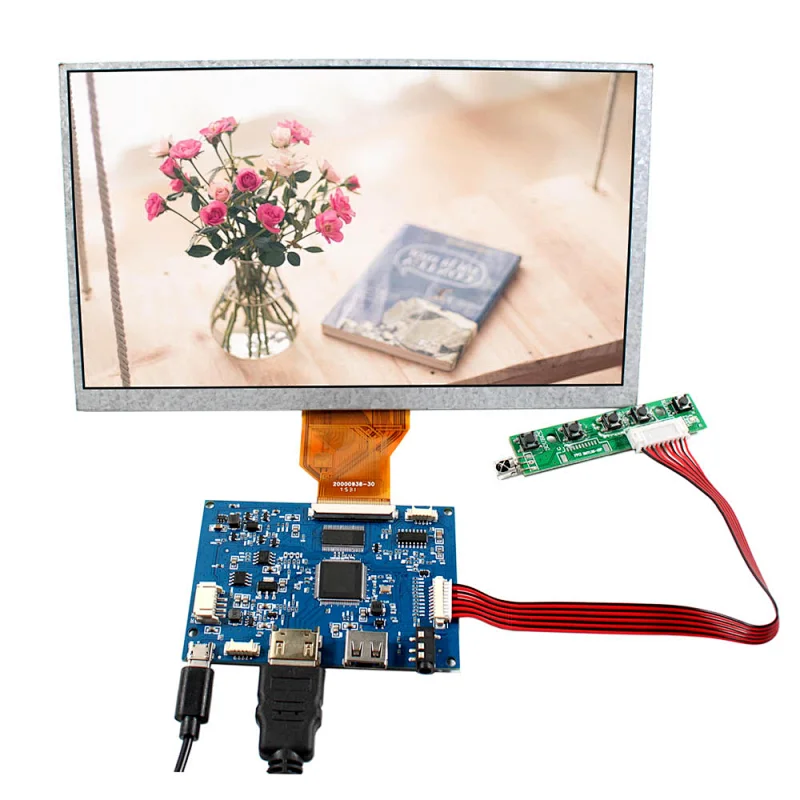

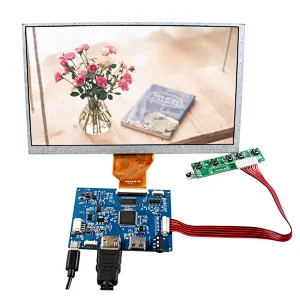

9"AT090TN10 800X480 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 211.1× 126.5×5.7 (H×V×D)
Display Area 198 ×111.7 (H×V)
Brightness450 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight  WLED
Input Voltage 3.3V (Typ.)

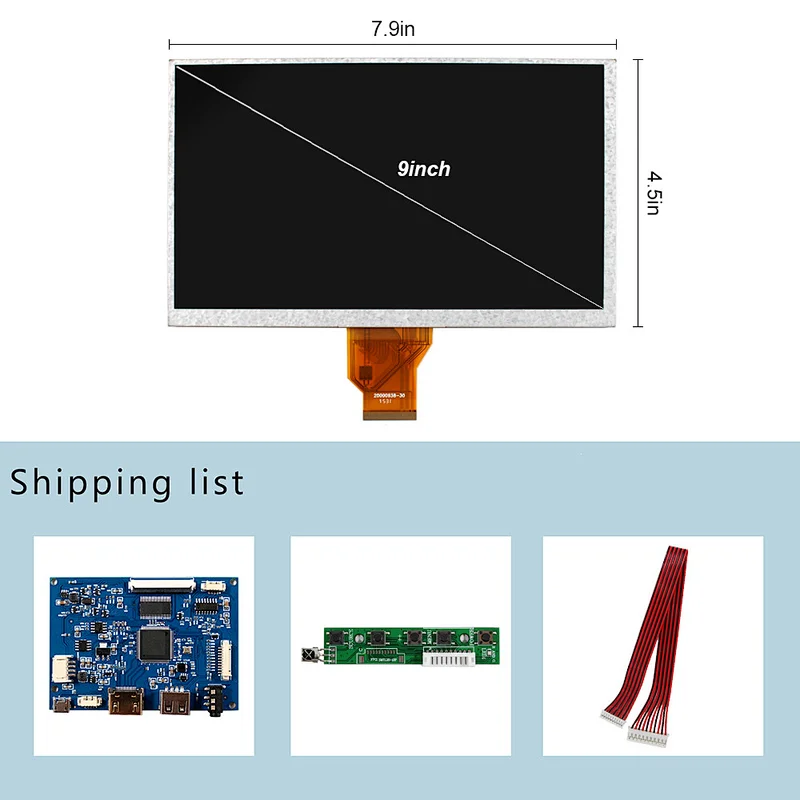

Packing list :
1× HD-MI USB LCD Controller Board VS-TY2660H-V827
PS: Please make sure use 5Vdc power adapter. More than 5Vdc will damage the board.
9inch AT090TN10 800X480 LCD Screen
1× Keyboard With Cable
