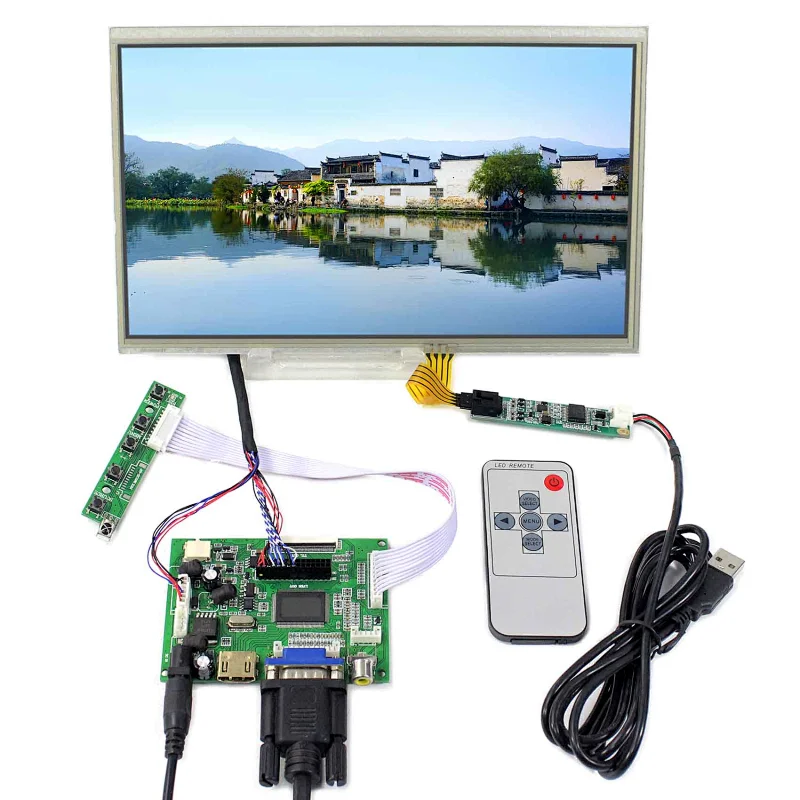

10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board
10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board
10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board
10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board
10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board
10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board
10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board
10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board
10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board
10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board
10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board

10.1inch 1024X600 TFT-LCD Screen 10.1inch Resistive Touch Panel with HDMI VGA+2AV LCD Controller Board

Model NO.
K000280-VS-TY2662-V1+LTN101NT02 B101AW03 N101L6 LP101WS+TP
Quantity:

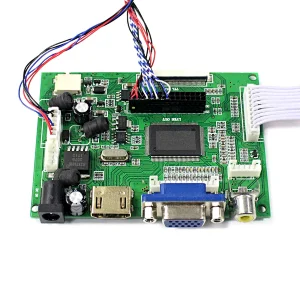

LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
10.1"1024X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 235 × 143×5.2(H×V×D)
Display Area 222.72× 125.28 (H×V)
Brightness200 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 45/45/40/45 (Typ.)(CR≥10) [Left / Right / Up / Down]

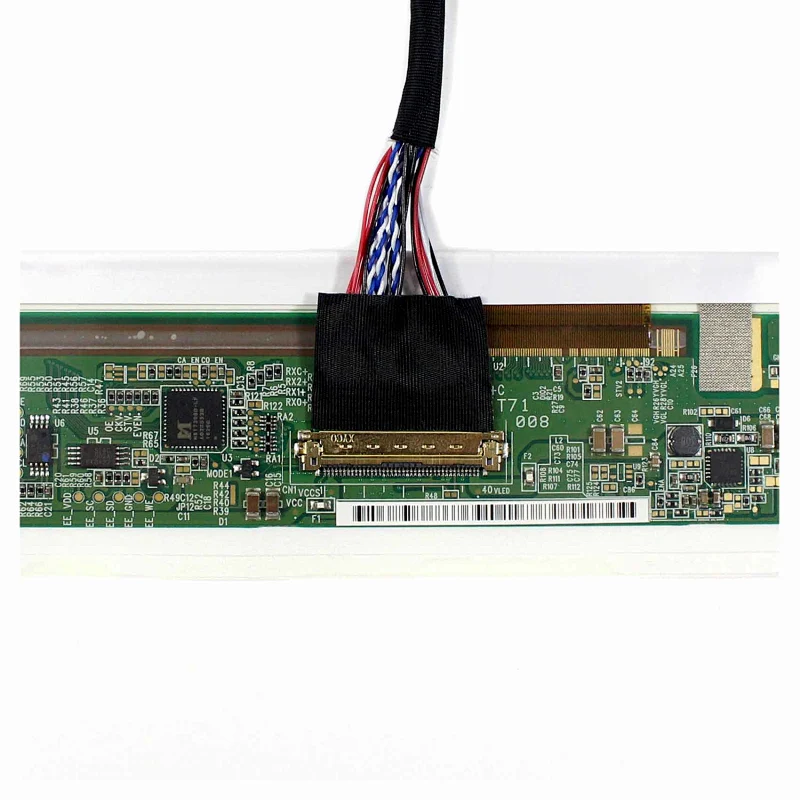

Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins

Backlight  WLED
Input Voltage  3.3V (Typ.)

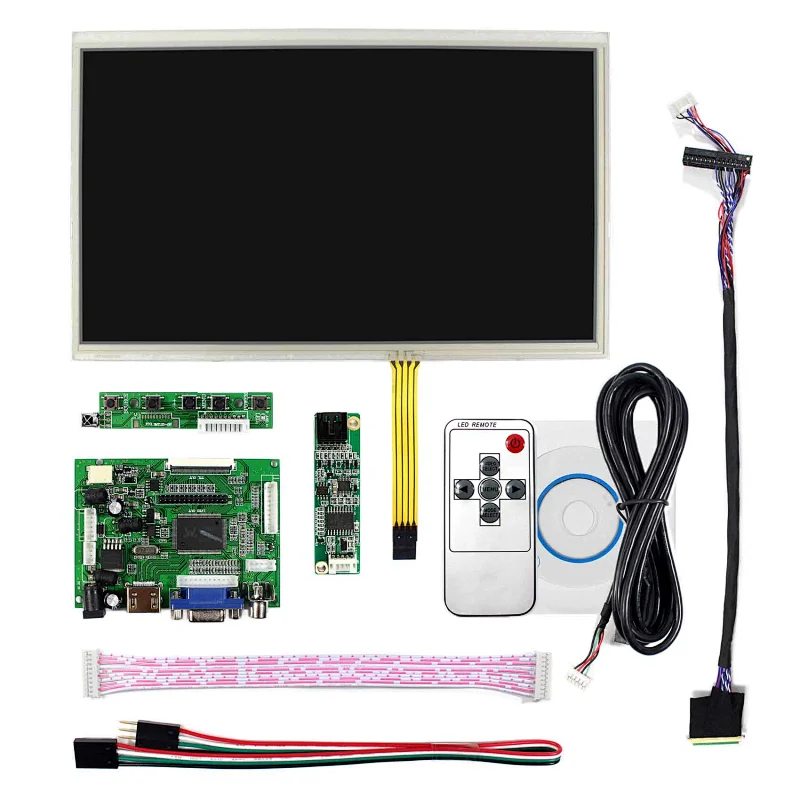

Packing list :
 HDMIVGA+2AV LCD Controller Board VS-TY2662-V1

10.1inch 1024X600 LCD Screen With Resistive Touch Panel VS101TP-A1
 LVDS Cable
 USB Controller Card
 USB Cable
 Extend Touch Cable
 Keyboard With Cable
1× Remote Control(Battery Not included)
