10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board
10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board

10.1inch B101UAN02.1 1920X1200 LCD Screen with HDMI VGA AV USB RF LCD Controller Board

Model NO.
K000290-B101UAN01
Quantity:

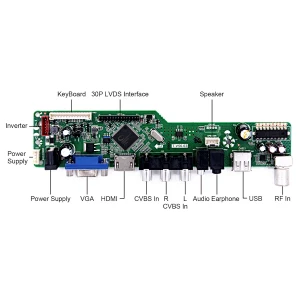

LCD Controller Board:
HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HDMI VGA AV USB RF
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:188mm x 43mm x 17mm
10.1"B101UAN02.1 1920X1200 LCD Screen:
Display Mode  AHVA, Normally Black, Transmissive
Resolution 1920RGB)×1200
Outline Size 229.45 × 149.2×5 (H×V×D)
Display Area 216.81 × 135.5 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

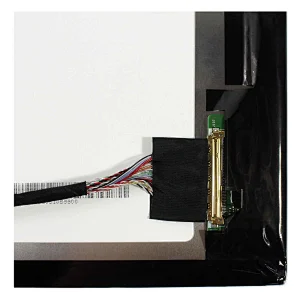

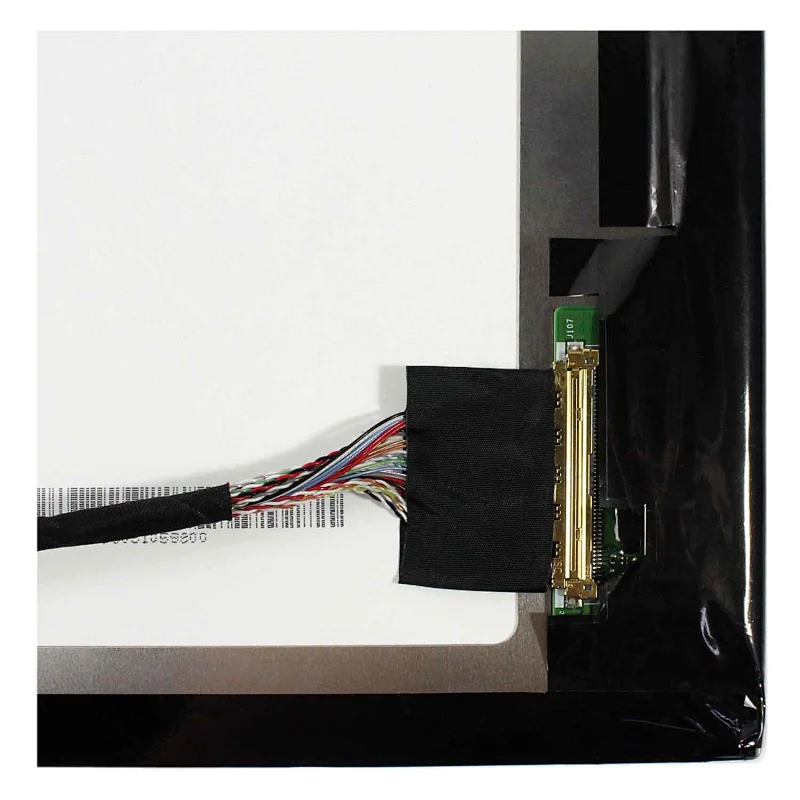

Signal Interface LVDS (2 ch, 8-bit) , Connector , 50 pins

Backlight  WLED
Input Voltage  3.3V (Typ.)

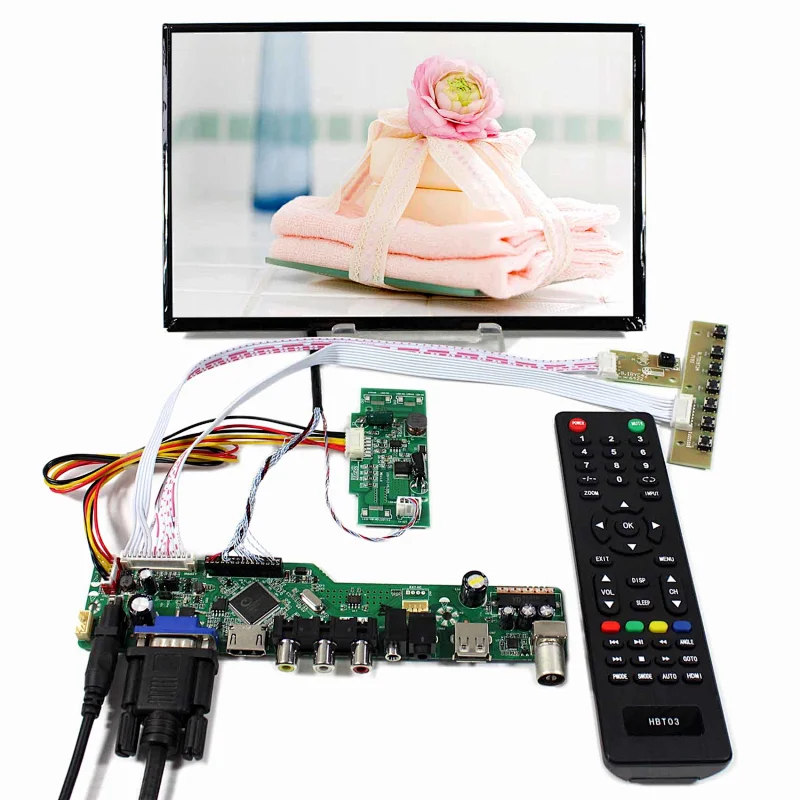

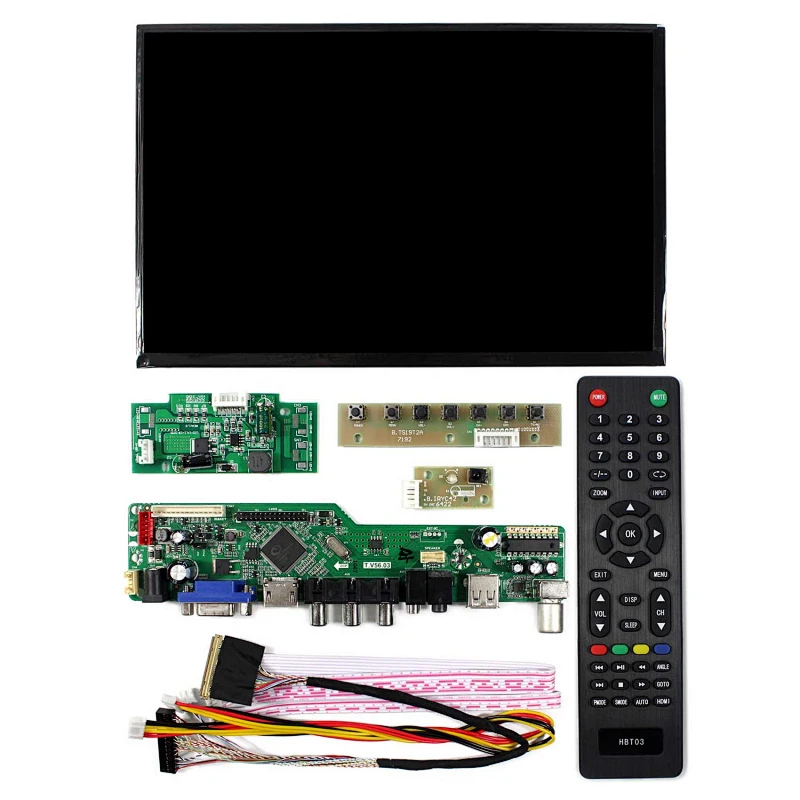

Packing list :
 HDMI VGA AV USB RF LCD Controller Board T.V56.03

10.1inch B101UAN02.1 1920X1200 LCD Screen
 Inverter Board
 LVDS Cable
 Keyboard With Cable
1× Remote Control (Battery Not included)
