10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board

10.1inch B101XAN01.3 1366X768 IPS LCD Screen with HDMI VGA+2AV LCD Controller Board

Model NO.
K000296-10.1inch IPS screen B101XAN01.3
Quantity:
LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
10.1"B101XAN01.3 1366X768 LCD Screen:
Display Mode  AHAV, Normally Black, Transmissive
Resolution 1366RGB)×768
Outline Size 230.62 ×135.81×0.8(H×V×D)
Display Area 222.52× 125.11 (H×V)
Brightness400 cd/m² (Typ.)
Contrast Ratio 900:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 40 pins

Backlight  WLED
Input Voltage  3.3V (Typ.)

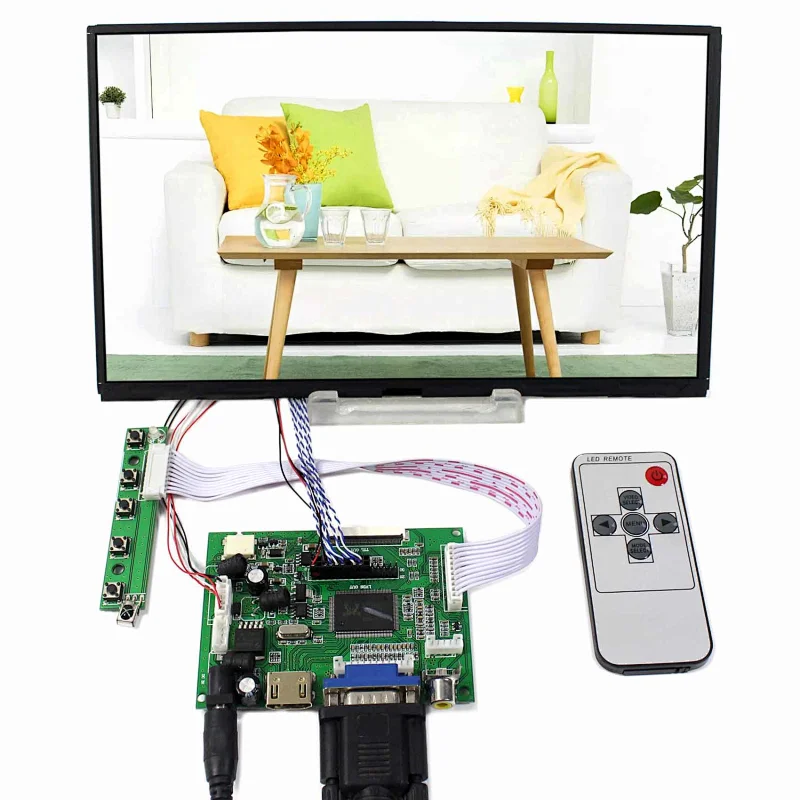

Packing list :
 HDMIVGA+2AV LCD Controller Board VS-TY2662-V1

10.1inch B101XAN01.3 1366X768 LCD Screen

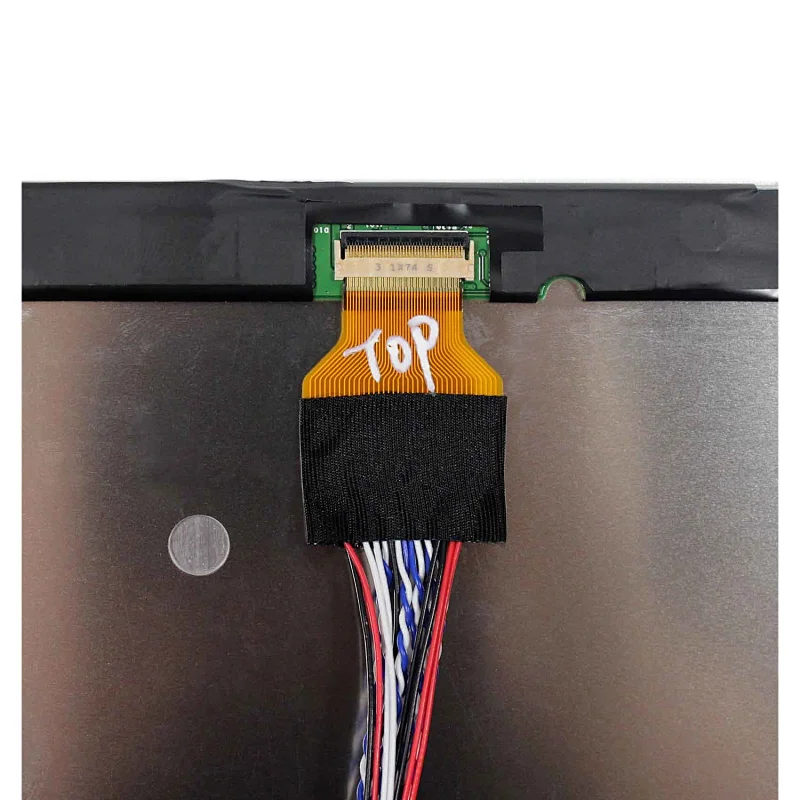

 LVDS Cable
 Keyboard With Cable
1× Remote Control(Battery Not included)
