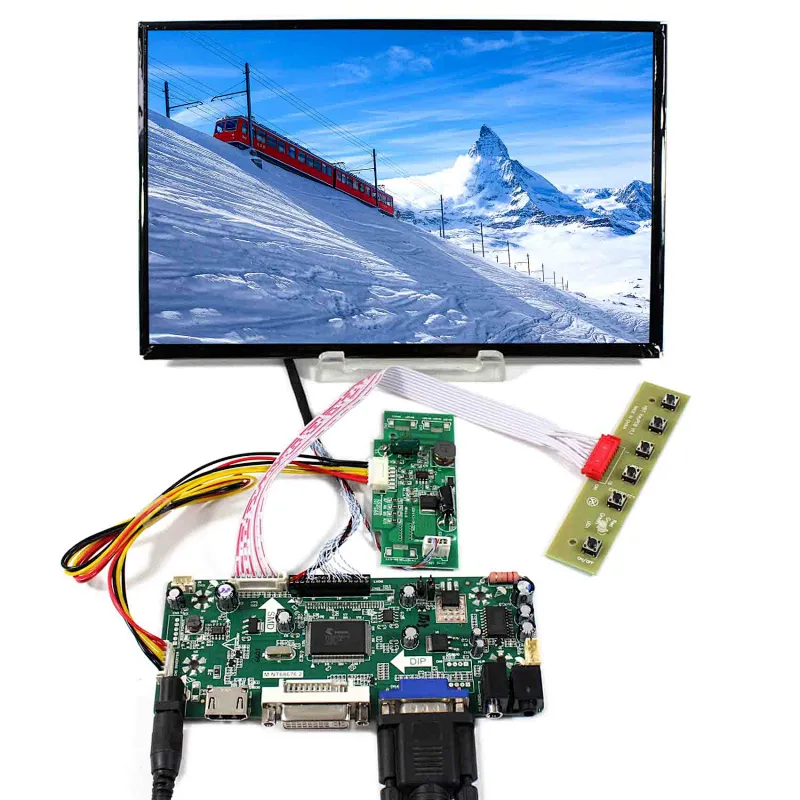

10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board
10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board

10.1inch B101UAN02.1 1920X1200 TFT-LCD Screen with HDMI VGA DVI LCD Controller Board

Model NO.
K000302-M.NT68676.2+ B101UAN02
Quantity:

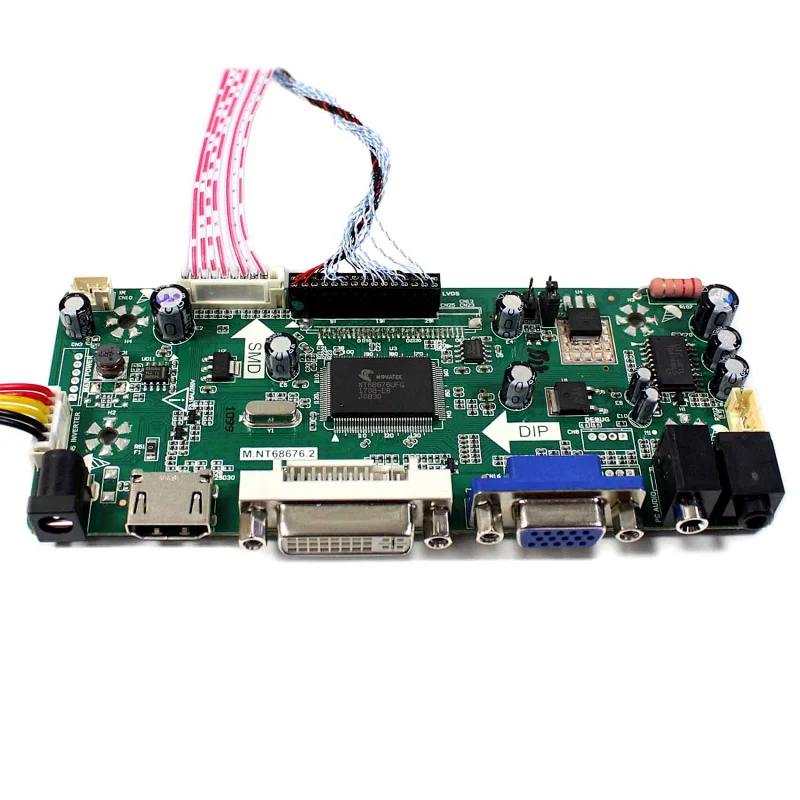

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:125mm x 58mm x 17mm

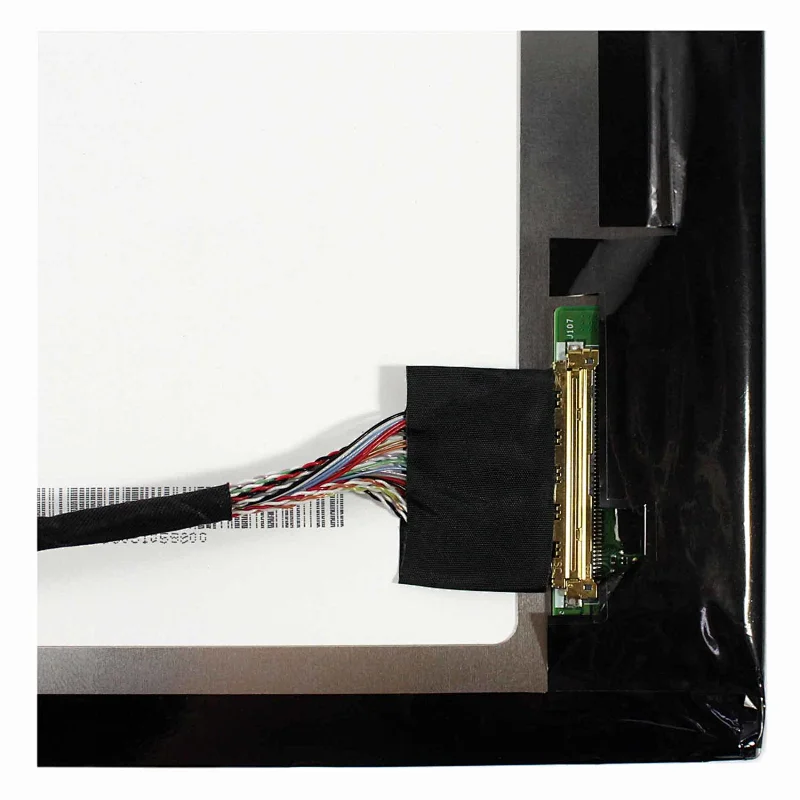

10.1"B101UAN02.1 1920X1200 LCD Screen:
Display Mode  AHVA, Normally Black, Transmissive
Resolution 1920RGB)×1200
Outline Size 229.45 × 149.2×5 (H×V×D)
Display Area 216.81 × 135.5 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit) , Connector , 50 pins

Backlight  WLED
Input Voltage  3.3V (Typ.)

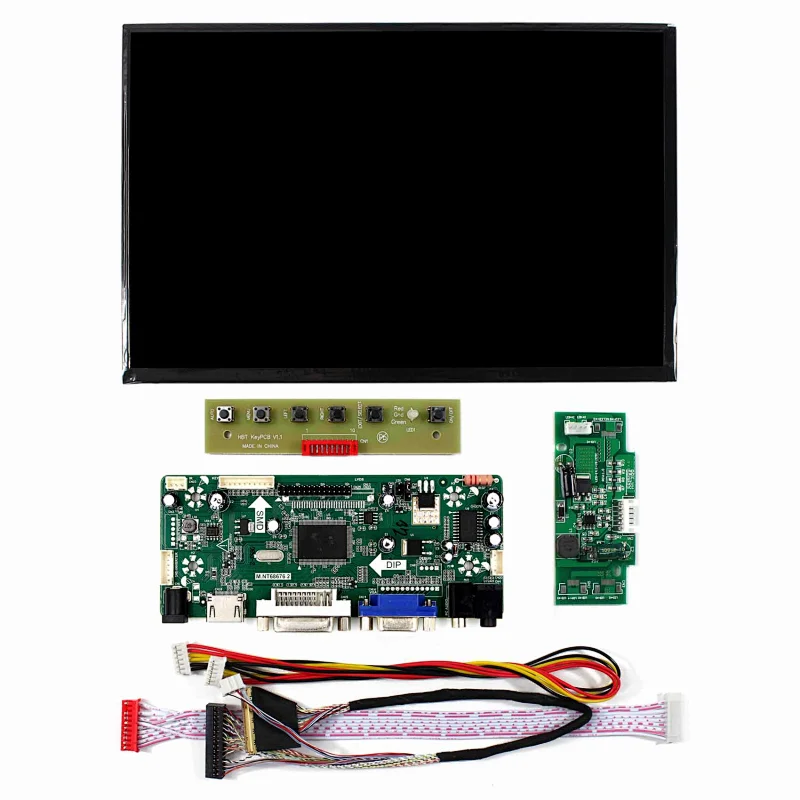

Packing list :
 HDMI VGA DVI LCD Controller Board M.NT68676

10.1inch B101UAN02.1 1920X1200 LCD Screen

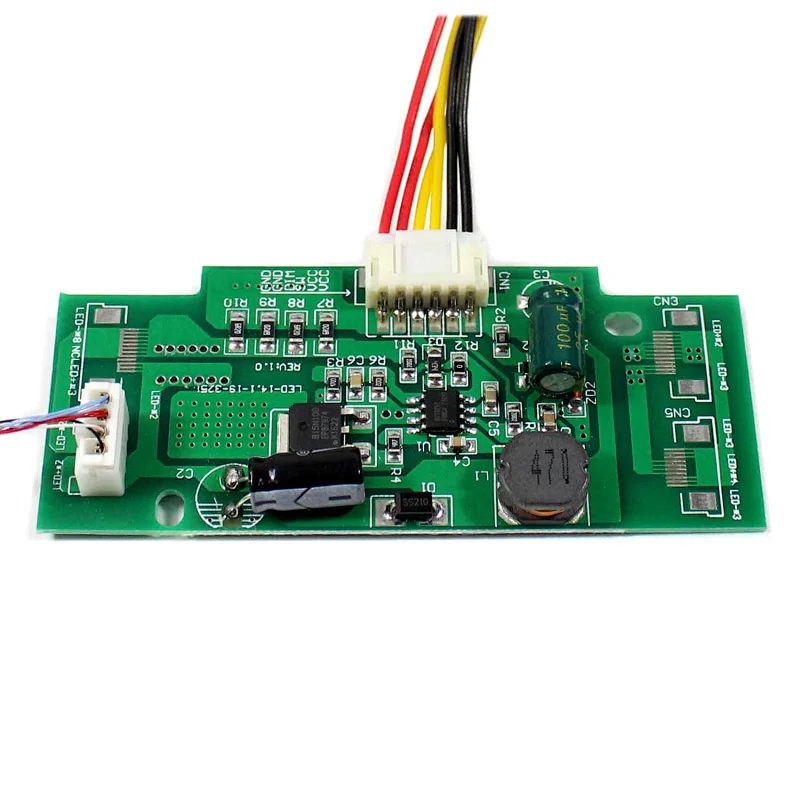

 Inverter Board
 LVDS Cable
 Keyboard With Cable
