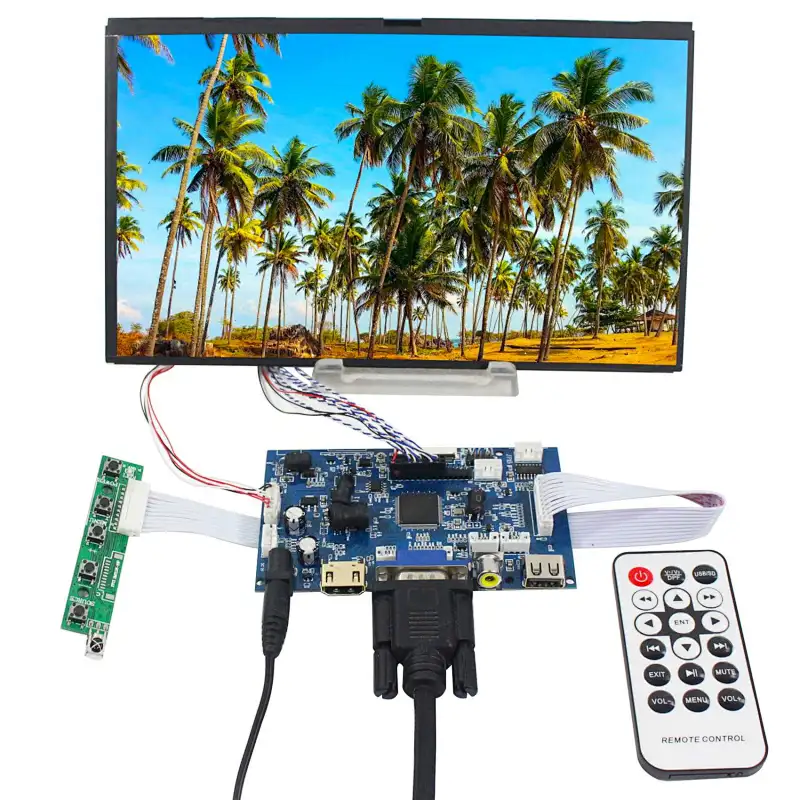

10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board
10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board

10.1inch B101XAN01.3 1366X768 TFT-LCD Screen With HDMI VGA+2AV LCD Controller Board

Model NO.
K002462-VS-TY2660-899+N101BCG-L21 B101XAN01.3
Quantity:

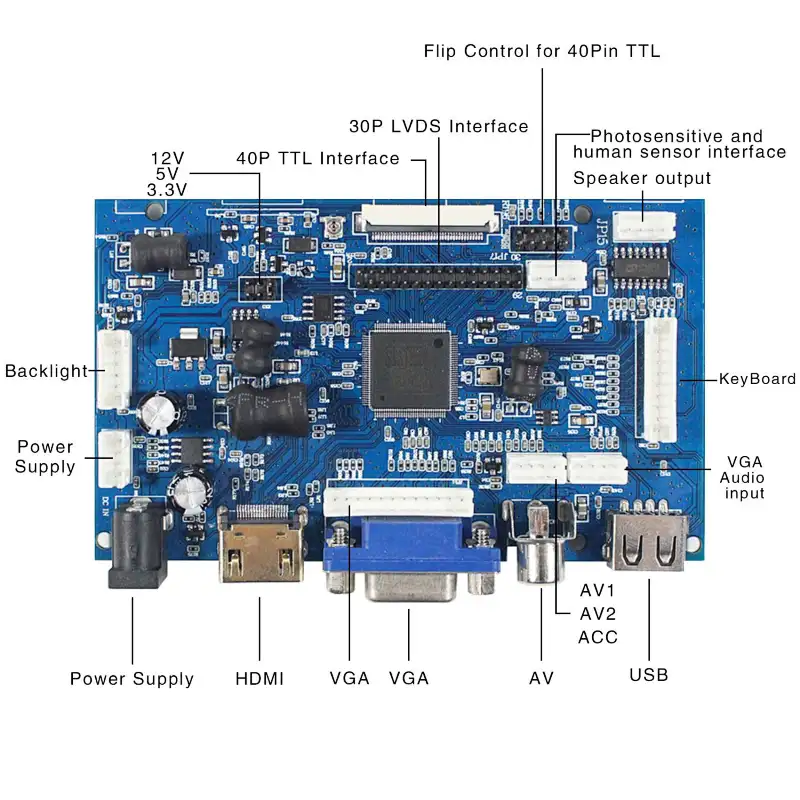

LCD Controller Board:
HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HDMI VGA AV1 AV2 USB
HDMI: Support HDMI 1.4
VGA: Support Audio Input
CVBS2 Channel AV-CVBS
ReversingFunction: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2
USB: Support VideoPlayback,PicturePlayback,TextPlayback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of thedriver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 110mm x 66mm x 12mm
10.1"B101XAN01.3 1366X768 LCD Screen:
Display Mode  AHAV, Normally Black, Transmissive
Resolution 1366RGB)×768
Outline Size 230.62 ×135.81×0.8(H×V×D)
Display Area 222.52× 125.11 (H×V)
Brightness400 cd/m² (Typ.)
Contrast Ratio 900:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 40 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

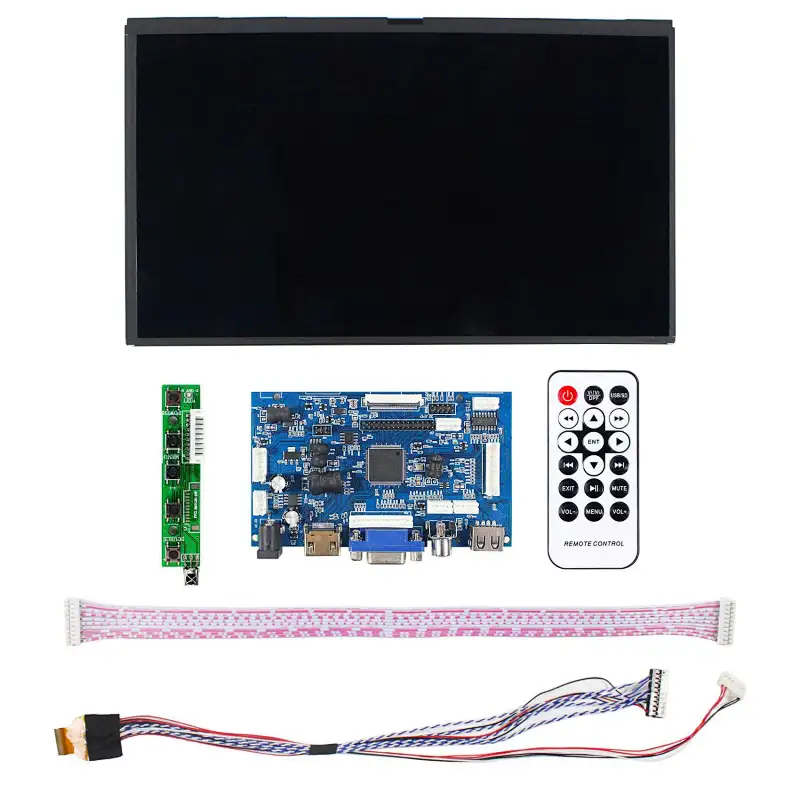

Packing list :
 HDMIVGA+2AV LCD Controller Board VS-TY2660H-V899
10.1inch B101XAN01.3 1366X768 LCD Screen
LVDSCable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
