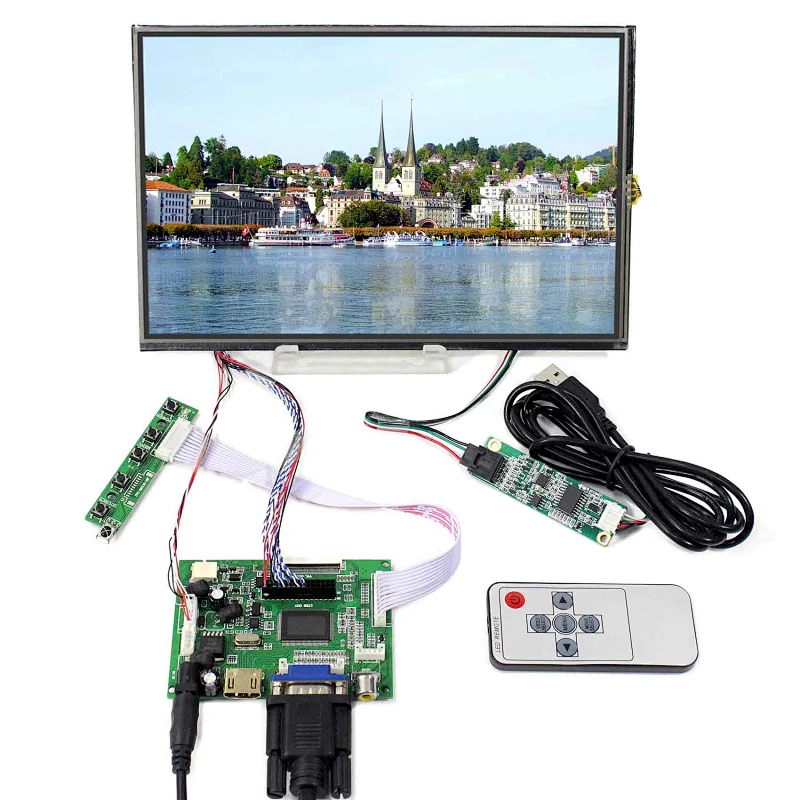

10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board
10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board

10.1inch M101NWWB 1280X800 LCD Screen Resistive Touch Panel With HDMI VGA+2AV LCD Controller Board

Model NO.
K001866-VS-TY2662-V1+M101NWWB+VS101TP-A4
Quantity:

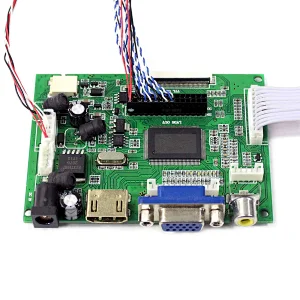

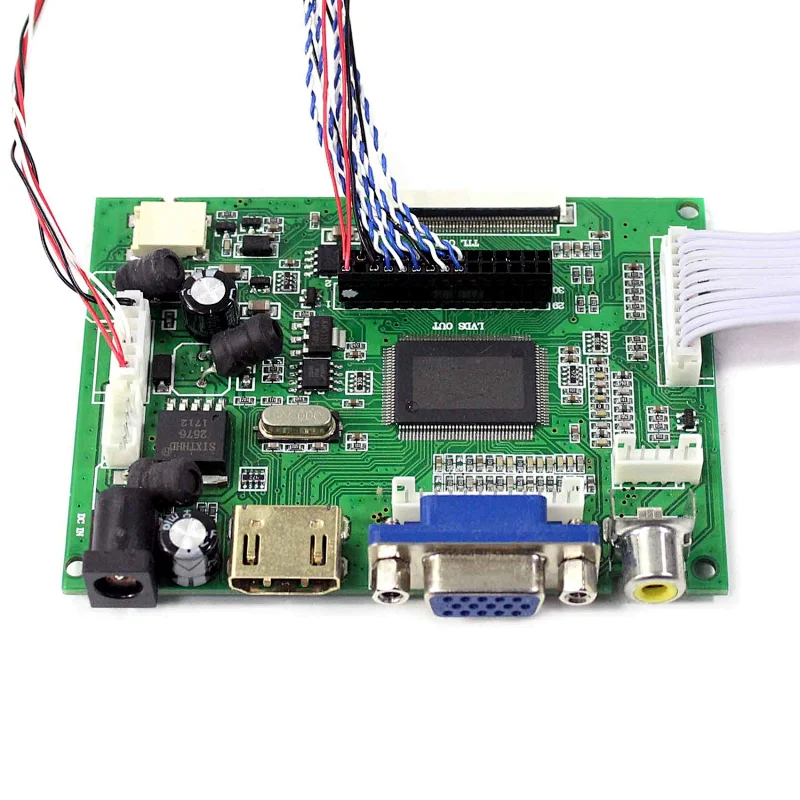

LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm

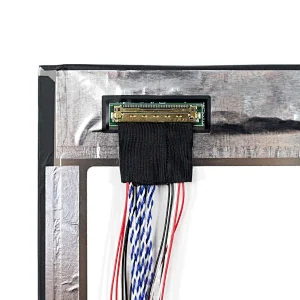

10.1"M101NWWB 1280X800 LCD Screen:
Display Mode  MVA, Normally Black, Transmissive
Resolution 1280RGB)×800
Outline Size 229.46 × 149.1×4.56(H×V×D)
Display Area 216.96× 135.6 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

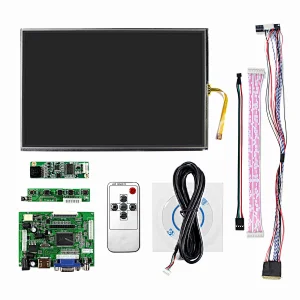

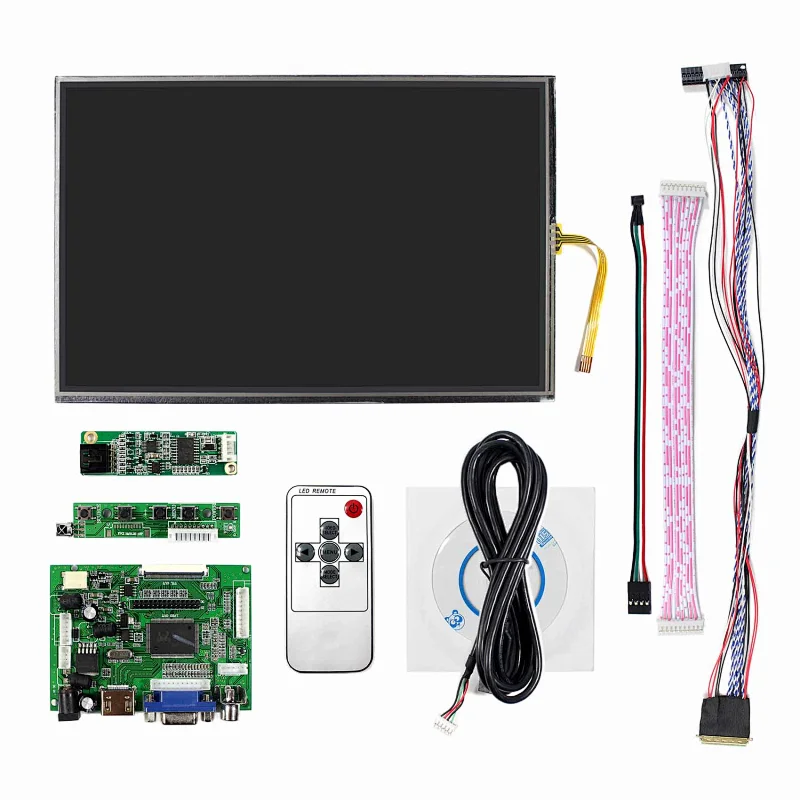

Packing list :
1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
10.1inch M101NWWB 1280X800 LCD Screen With Resistive Touch Panel VS101TP-A4
1× LVDS Cable

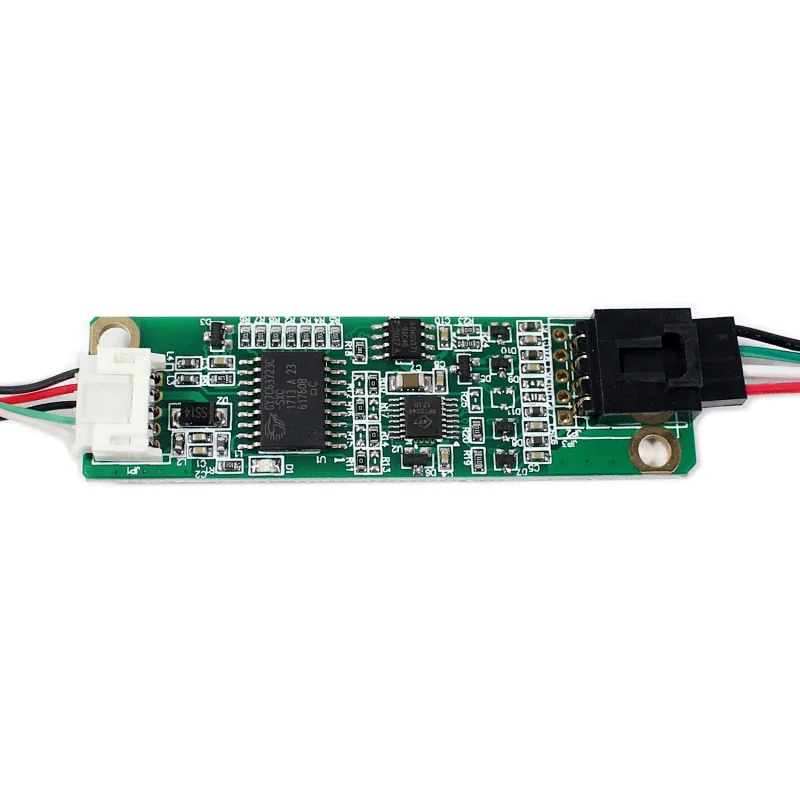

1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
