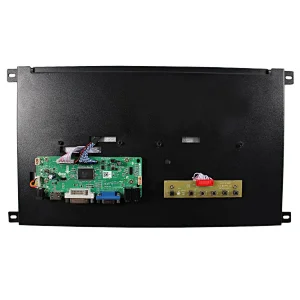

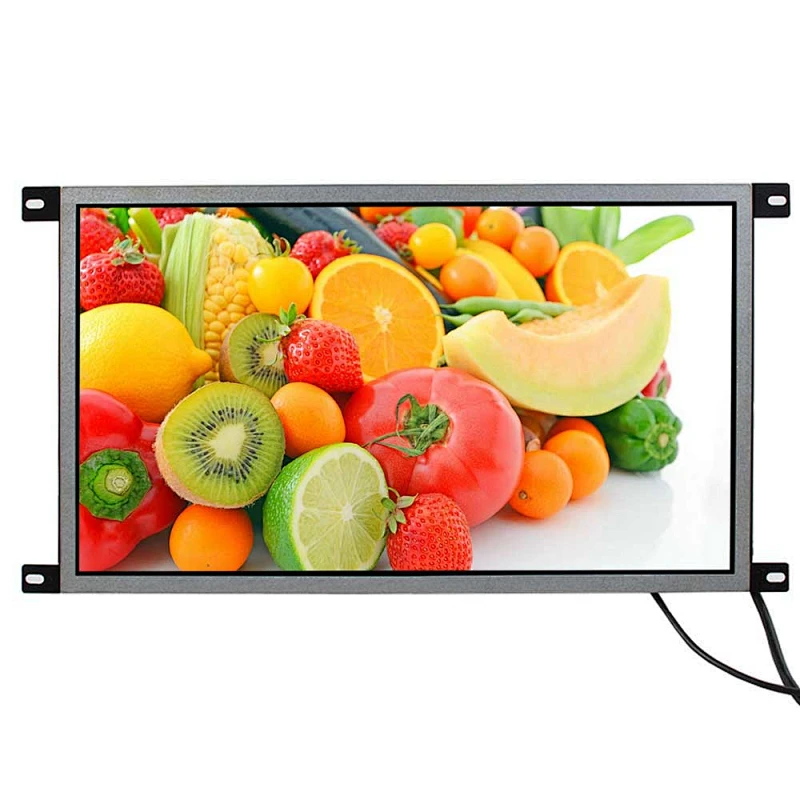

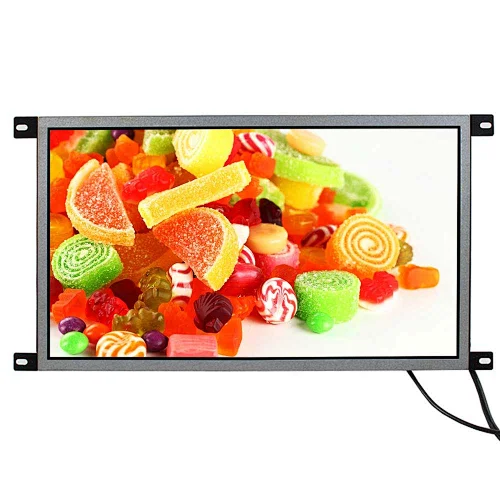

15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board
15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board

15.6inch G156HTN02.1 1920X1080 LCD Screen With HDMI VGA LCD Controller Board

Model NO.
K003036-M.NT68676+G156HTN02.1 1920X1080
Quantity:

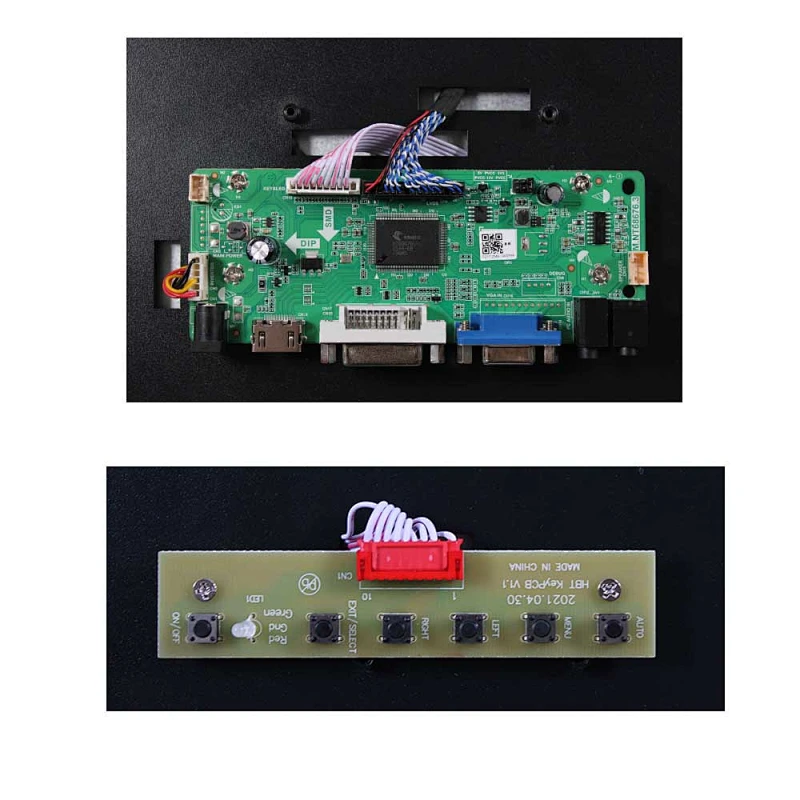

LCD Controller Board:
HD-MIDVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI DVI VGA
Audio Input: HD-MI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

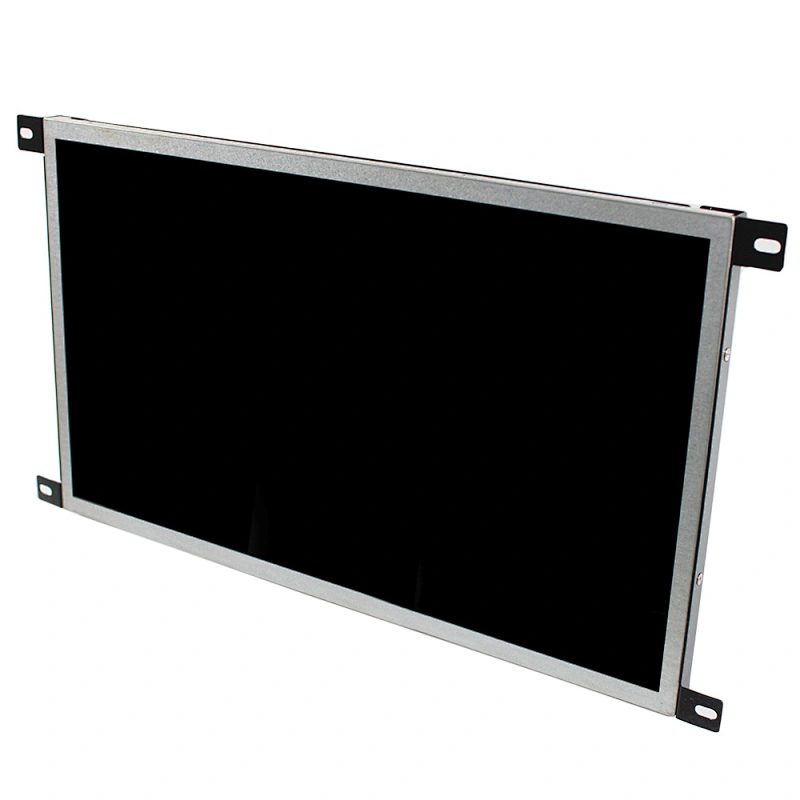

15.6" 1920X1080 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1920(RGB)×1080, FHD, 141PPI

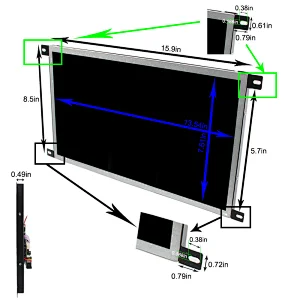

Outline Size 363.8(W)×215.9(H)×12.5(D) mm
Display Area 344.16(W)×193.59(H) mm
Brightness400 cd/m²(Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage  3.3V (Typ.)
Weight:1720g/3.8LB
Packing list:
1×15.6"1920X1080 LCD Screen With HDMI VGA LCD Controller Board
