10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 LCD Screen with VGA+DVI LCD Controller Board 10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 CLAA102NA0ACW 1024X600 10.2inch HSD100IFW1
10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 LCD Screen with VGA+DVI LCD Controller Board 10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 CLAA102NA0ACW 1024X600 10.2inch HSD100IFW1
10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 LCD Screen with VGA+DVI LCD Controller Board 10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 CLAA102NA0ACW 1024X600 10.2inch HSD100IFW1
10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 LCD Screen with VGA+DVI LCD Controller Board 10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 CLAA102NA0ACW 1024X600 10.2inch HSD100IFW1
10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 LCD Screen with VGA+DVI LCD Controller Board 10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 CLAA102NA0ACW 1024X600 10.2inch HSD100IFW1
10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 LCD Screen with VGA+DVI LCD Controller Board 10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 CLAA102NA0ACW 1024X600 10.2inch HSD100IFW1
10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 LCD Screen with VGA+DVI LCD Controller Board 10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 CLAA102NA0ACW 1024X600 10.2inch HSD100IFW1
10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 LCD Screen with VGA+DVI LCD Controller Board 10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 CLAA102NA0ACW 1024X600 10.2inch HSD100IFW1
10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 LCD Screen with VGA+DVI LCD Controller Board 10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 CLAA102NA0ACW 1024X600 10.2inch HSD100IFW1

10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 LCD Screen with VGA+DVI LCD Controller Board 10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 CLAA102NA0ACW 1024X600 10.2inch HSD100IFW1

Model NO.
K001040-RT2281+HSD100IFW1+10.2inch
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Supply Ability
5000 piece / Day
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

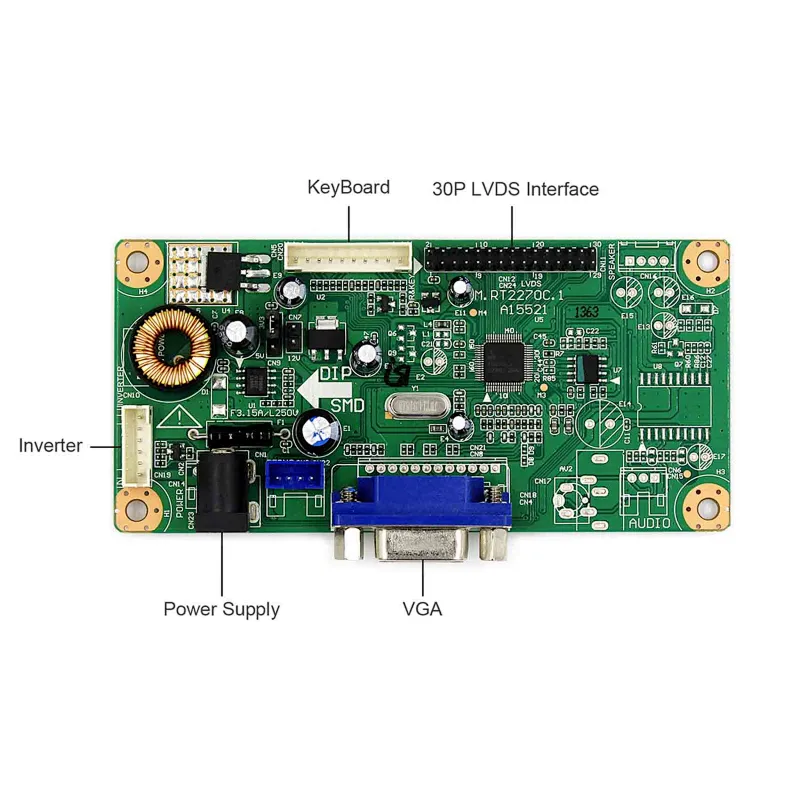

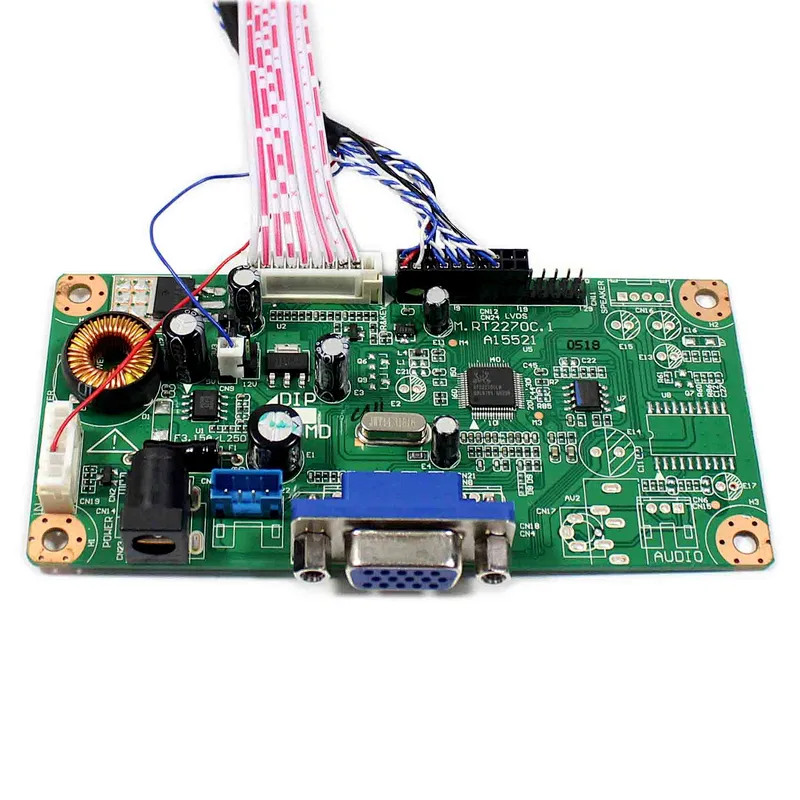

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:125mm x 58mm x 17mm

10.2"HSD100IFW1 1024X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 223.42 ×132.15×4.9 (H×V×D)
Display Area 220.4 ×129.1 (H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 30 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

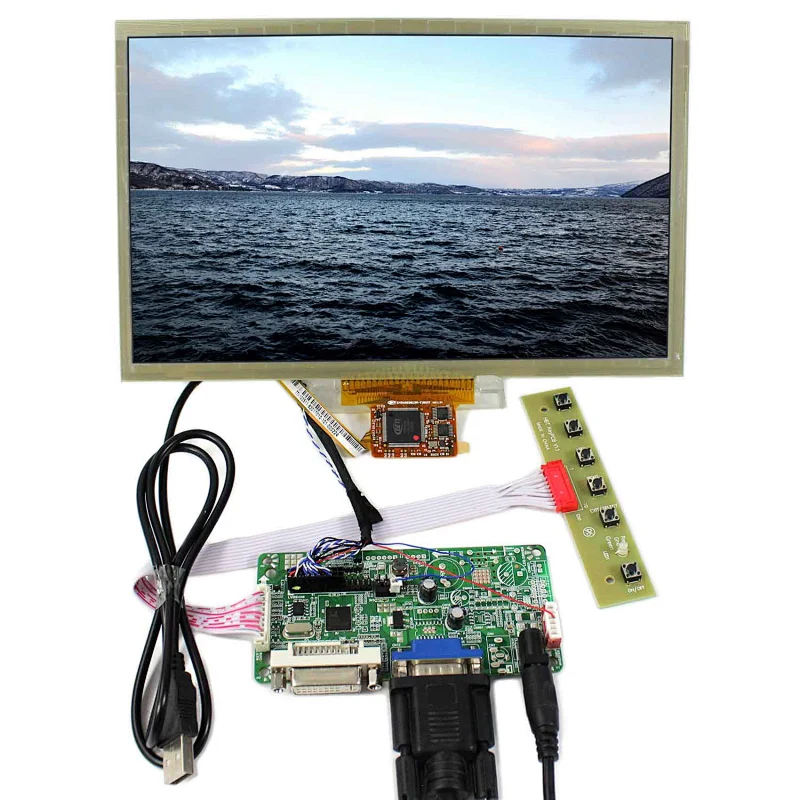

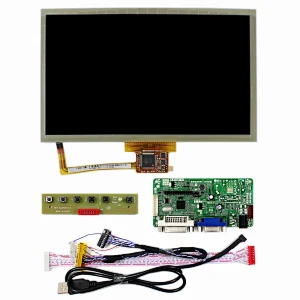

Packing list :
1× VGA+DVI LCD Controller Board RT2281
1×10.2inch HSD100IFW1CLAA102NA0ACW 1024X600 LCD With Capacitive Touch Panel VS102TP-A3
1× LVDS Cable
1× USB Cable
1× Keyboard With Cable
