Model NO.
K002985-VS-M53V2.0+10.4inch 800x600 VS104T-001A
Quantity:

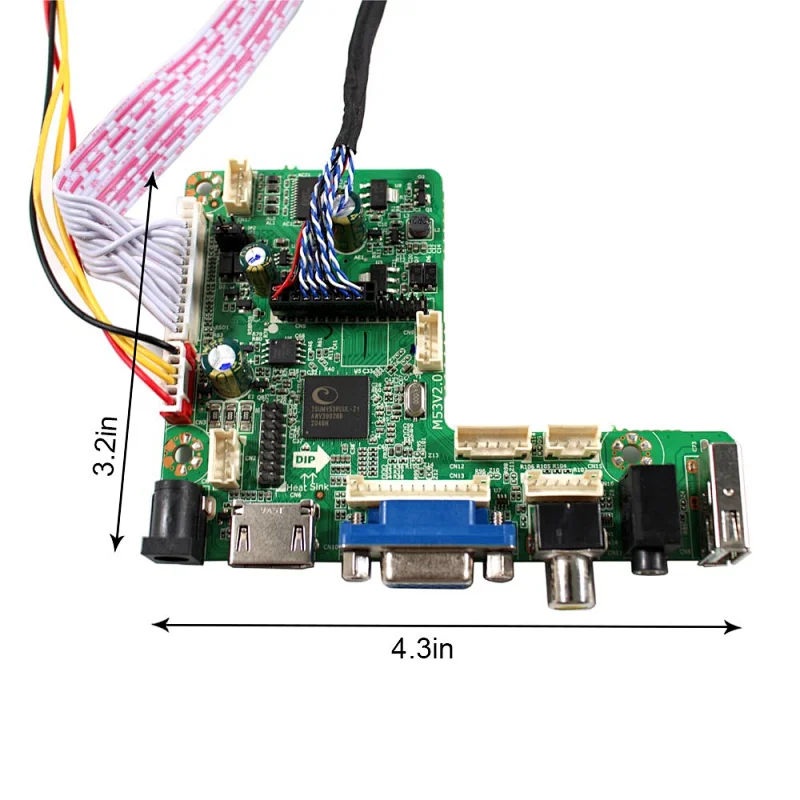

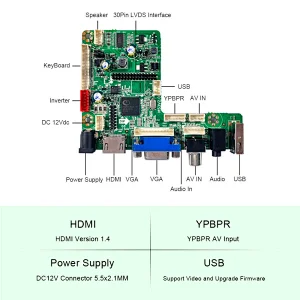

LCD Controller Board:
HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HD CP 1.2
USB Support Video
Video Input: HDMI VGA AV USB
Audio Input: HDMI-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:109mm x 81mm x 17mm
10.4" VS104T-001A  800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×600
Outline Size 236 ×174.3×4.9 (H×V×D)
Display Area 211.2 ×158.4 (H×V)
Brightness500 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list :
1× HDMI VGA AV USB LCD Controller Board VS-M53V2.0

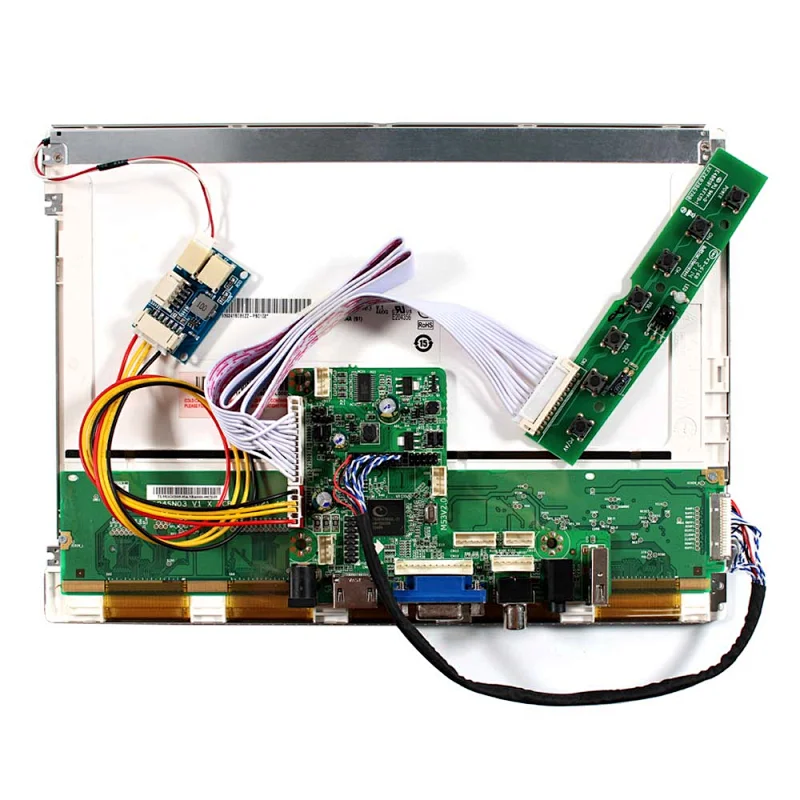

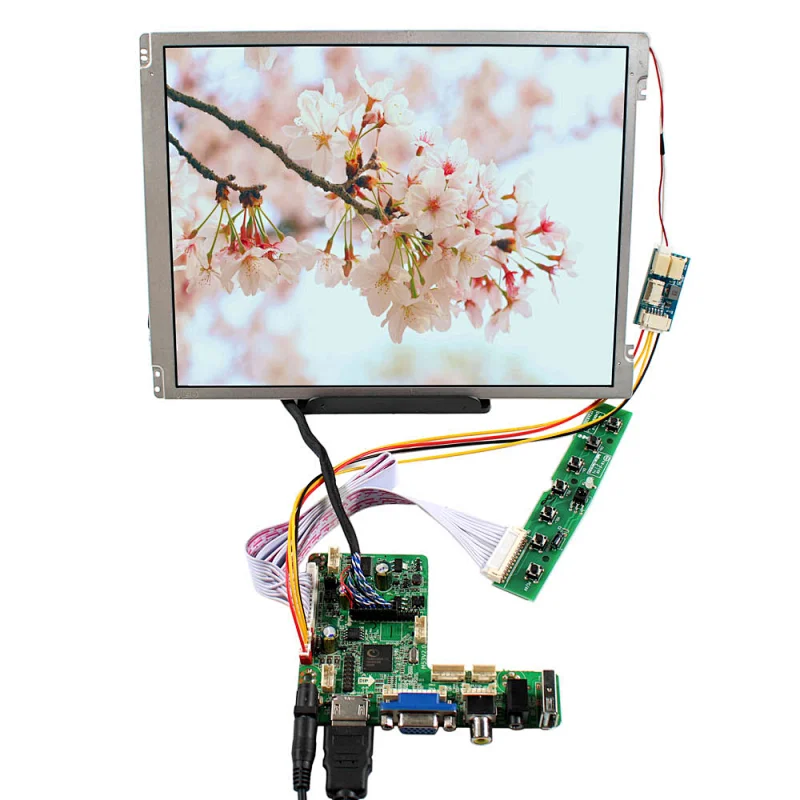

10.4inch VS104T-001A 800X600 LCD Screen
1× Signal Cable
1× Keyboard With Cable
