DVI VGA LCD Controller Board with 10.6" 1366×768 IPS LCD Screen LTL106AL01 LTL106AL01 1366X768 LTL106AL01 10.6inch LTL106AL01

Model NO.
K000722-RT2281 +LTL106AL01-001
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Supply Ability
5000 piece / Day
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

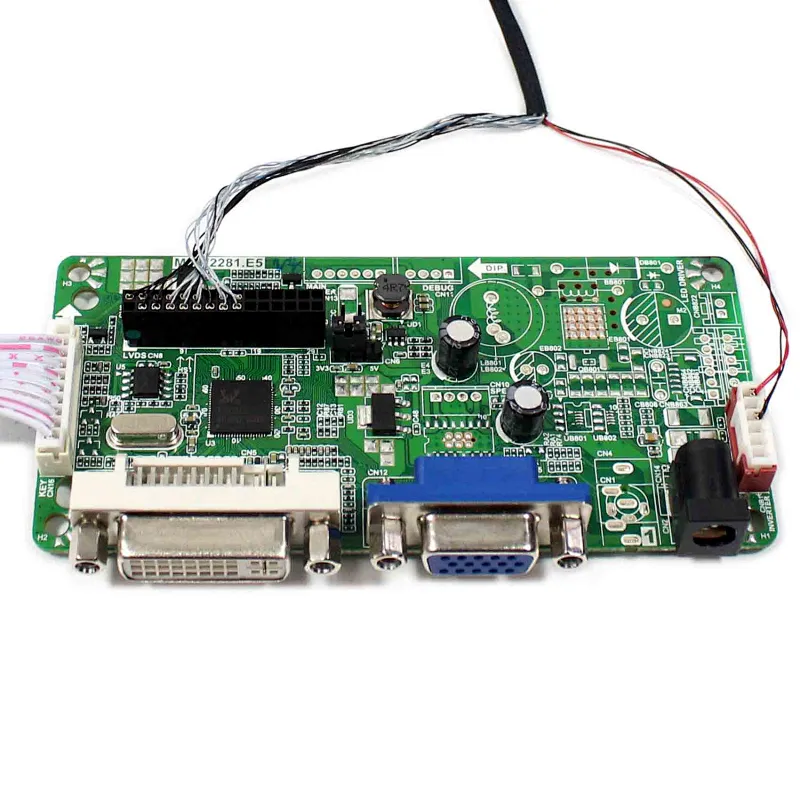

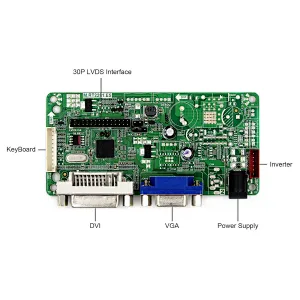

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:125mm x 58mm x 17mm

10.6"LCD Screen LTL106AL01:
Display Mode  PLS, Normally Black, Transmissive
Resolution 1366RGB)×768
Outline Size 246 × 149 × 2.5 (H×V×D)
Display Area 234.72 × 132.03 (H×V)
Brightness400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 30 pins
Backlight WLED
Input Voltage  3.3V (Typ.)

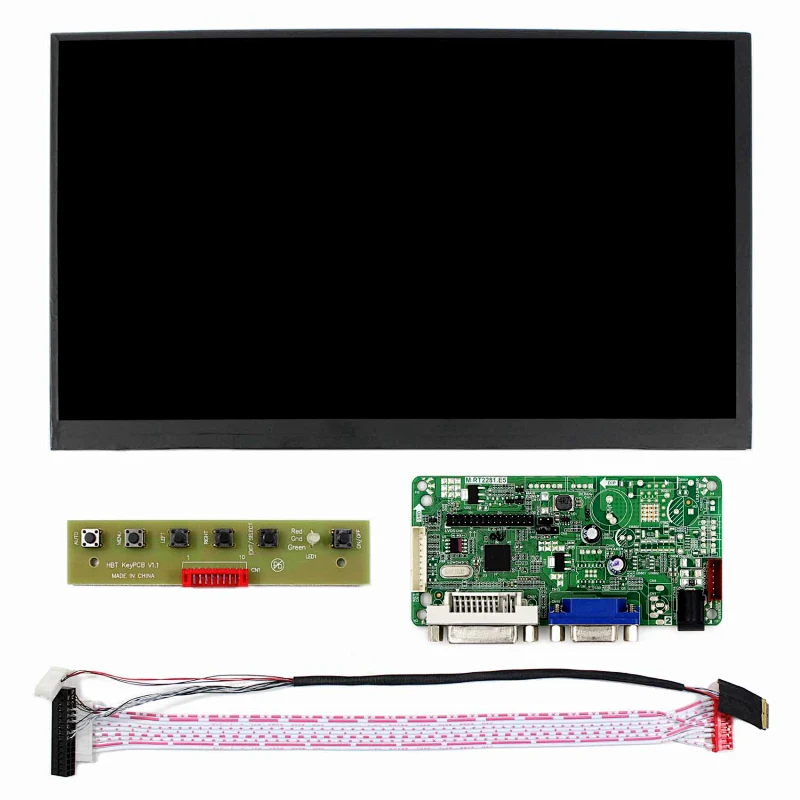

Packing list :

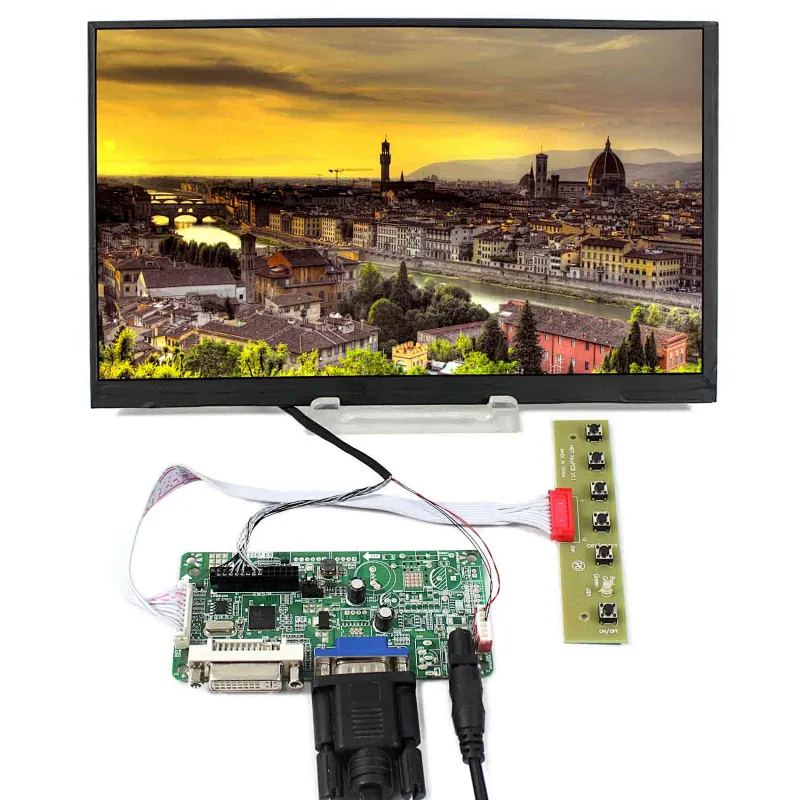

1× VGA+DVI LCD Controller Board RT2281
1×10.6inchLTL106AL01 1366X768 IPS LCD Screen
1×LVDSCable
1× Keyboard With Cable
