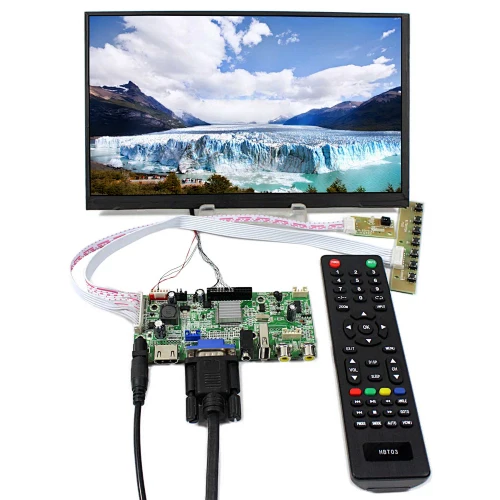

10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board
10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board
10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board
10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board
10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board
10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board
10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board
10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board
10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board
10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board
10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board

10.6inch LTL106AL01 1366X768 IPS LCD Screen With HDMI+VGA+2AV LCD Controller Board

Model NO.
K000723-VS-TY2662-V1+LTL106AL01-001
Quantity:
LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm

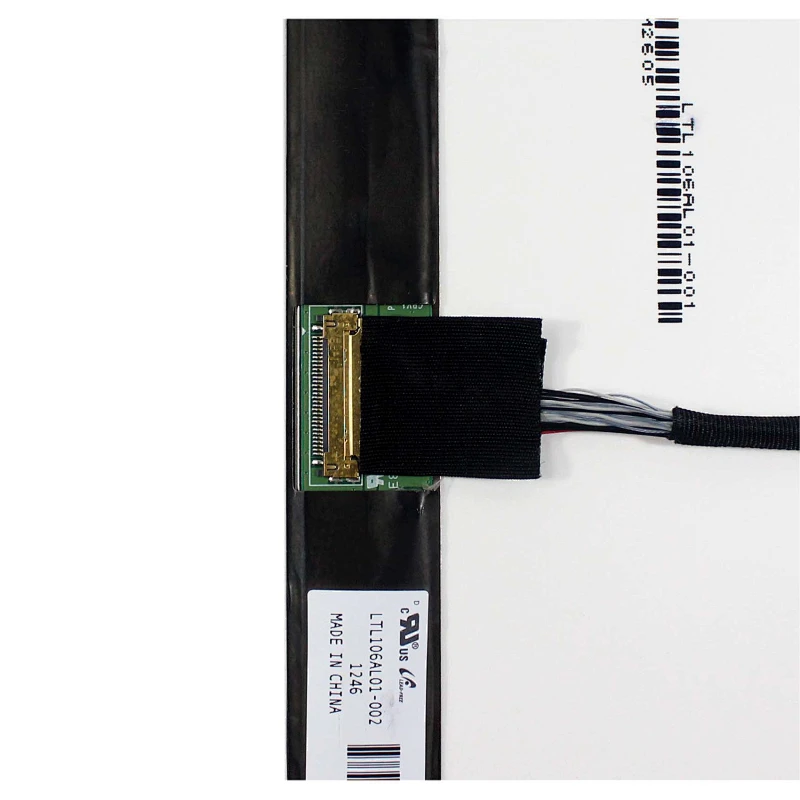

10.6"LCD Screen LTL106AL01:
Display Mode  PLS, Normally Black, Transmissive

Resolution 1366RGB)×768
Outline Size 246 × 149 × 2.5 (H×V×D)
Display Area 234.72 × 132.03 (H×V)
Brightness400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 30 pins

Backlight WLED
Input Voltage  3.3V (Typ.)
Packing list :
 HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1

1×10.6inchLTL106AL01 1366X768 IPS LCD Screen
LVDSCable
1× Keyboard With Cable
