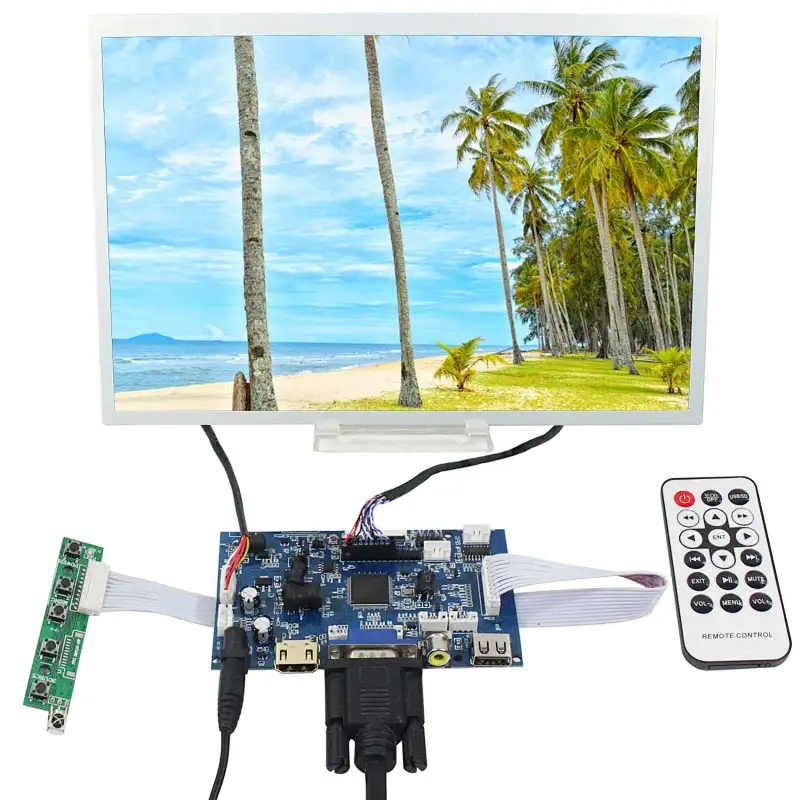

12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB
12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB
12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB
12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB
12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB
12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB
12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB
12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB
12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB
12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB
12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB

12.1inch 1280x800 LQ121K1LG52 400 cd/m² WLED LCD Screen With HDMI Controller Board VGA 2AV USB

Model NO.
K002472-VS-TY2660-899+LQ121K1LG52 1280x800
Quantity:

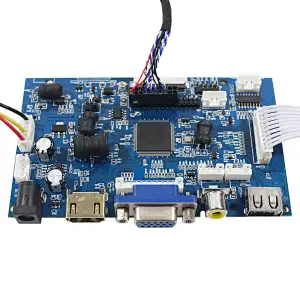

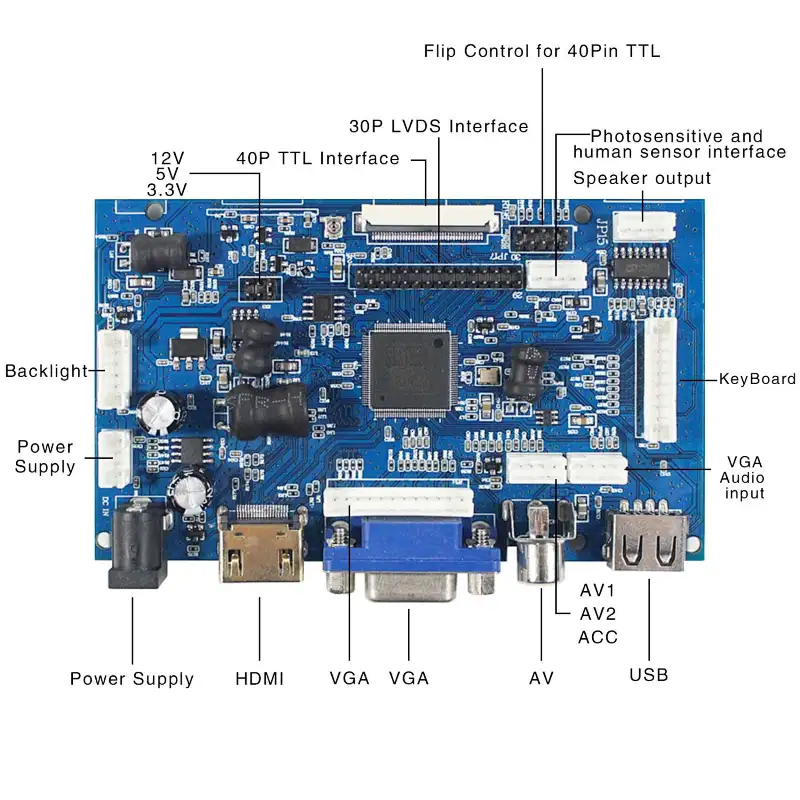

LCD Controller Board:
HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HDMI VGA AV1 AV2 USB
HDMI: Support HDMI 1.4
VGA: Support Audio Input
CVBS2 Channel AV-CVBS
ReversingFunction: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2
USB: Support VideoPlayback,PicturePlayback,TextPlayback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of thedriver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 110mm x 66mm x 12mm
12.1" LQ121K1L52 1280X800 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution1280RGB)×800
Outline Size 278×185×9.6(H×V×D)
Display Area 216×163.2 (H×V)
Brightness400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/65/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , 20 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

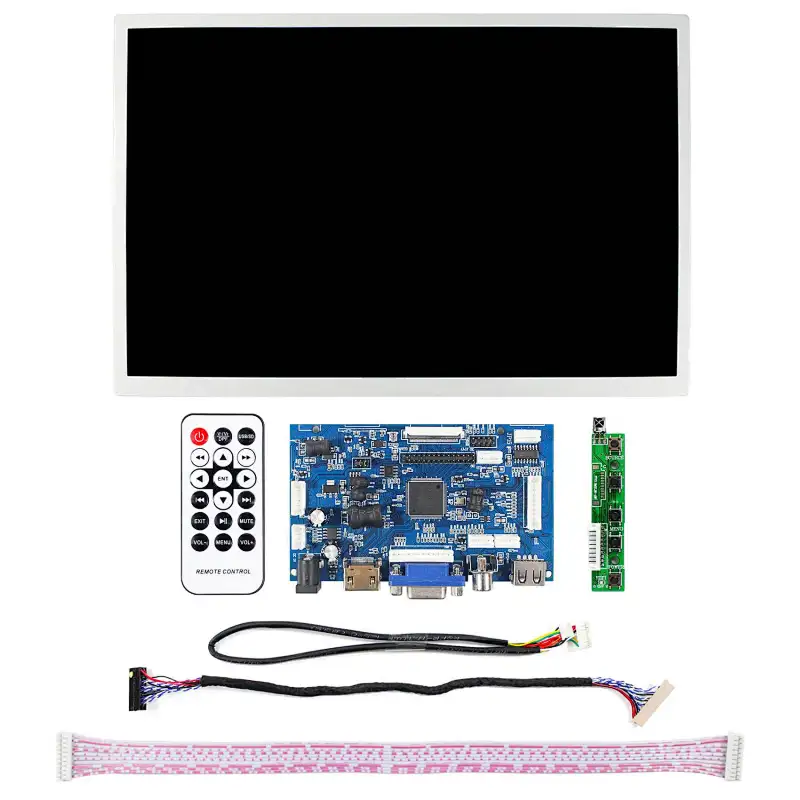

Packing list :
 HDMIVGA+2AV LCD Controller Board VS-TY2660H-V899
12.1inch LQ121K1LG52 1280X800 LCD Screen
 LVDS Cable
 Keyboard With Cable
1× Remote Control (Battery Not included)
