18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01

18.4inch CLAA184FP01 1920X1080  LCD Screen With VGA+DVI LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01

Model NO.
K002652-RT2281 + CLAA184FP01 1920X1080
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1 piece
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:

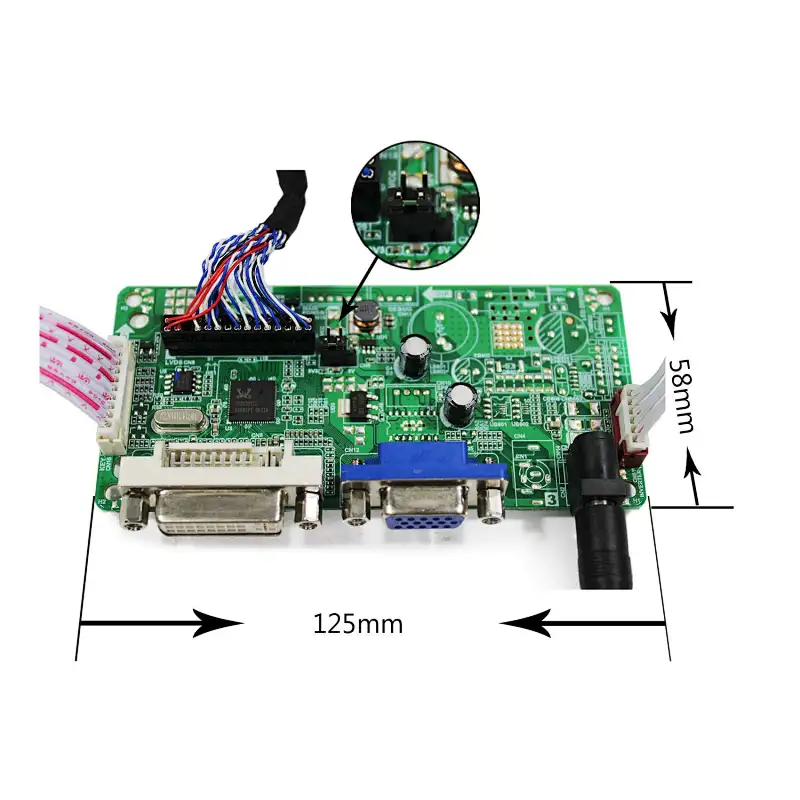

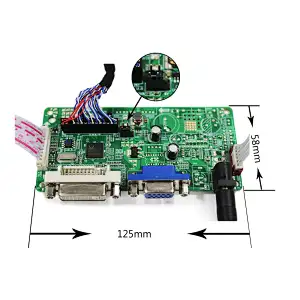

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

18.4"CLAA184FP01 1920X1080  LCD Screen:
Pixel Format 1920(RGB)×1080  [FHD]  119PPI
Outline Size 422.5 × 248 × 6.3 mm (H×V×D)
Bezel Area 413.11(H)×234.24(V) mm
Brightness350 (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 40 pins Connector
Backlight  WLED , 15K hours , W/O Driver
Input Voltage 3.3V (Typ.)

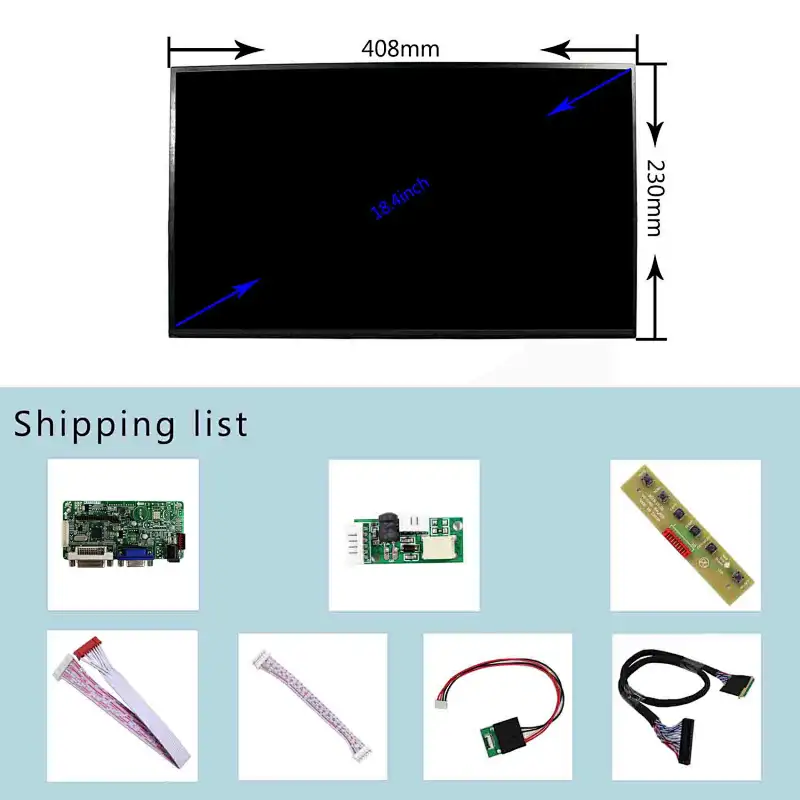

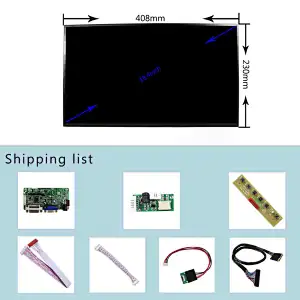

Packing list:
1× VGA+DVI LCD Controller Board RT2281
1×18.4"CLAA184FP01 1920X1080  LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
