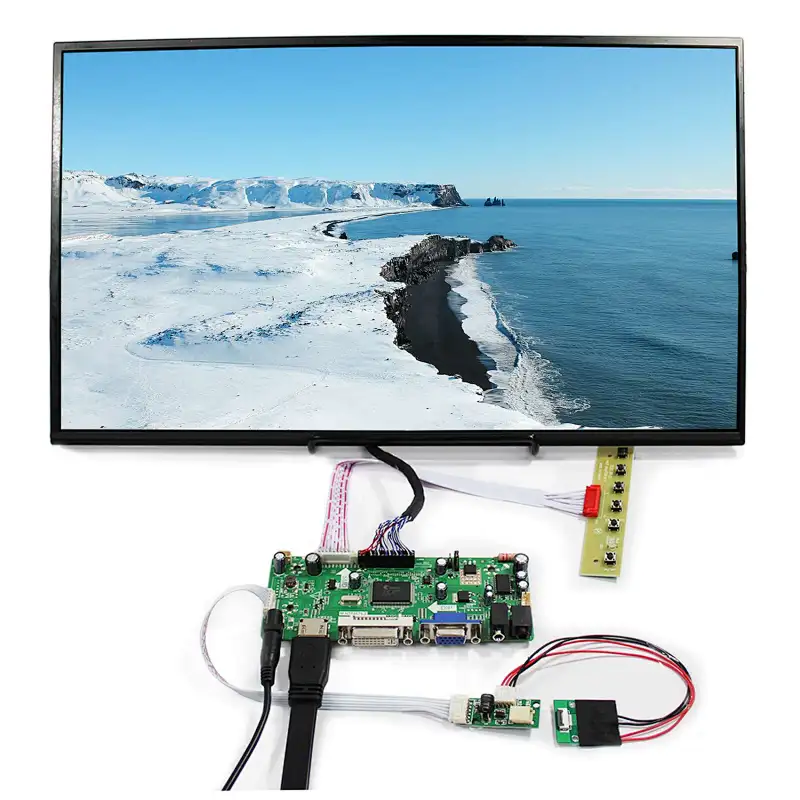

18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board
18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board

18.4inch CLAA184FP01 1920X1080  LCD Screen With HDMI VGA DVI LCD Controller Board

Model NO.
K002650-M.NT68676 + CLAA184FP01 1920X1080
Quantity:
LCD Controller Board:
HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI DVI VGA
Audio Input: HD-MI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
18.4"CLAA184FP01 1920X1080  LCD Screen:
Pixel Format 1920(RGB)×1080  [FHD]  119PPI
Outline Size 422.5 × 248 × 6.3 mm (H×V×D)
Bezel Area 413.11(H)×234.24(V) mm
Brightness350 (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 40 pins Connector
Backlight  WLED , 15K hours , W/O Driver
Input Voltage 3.3V (Typ.)

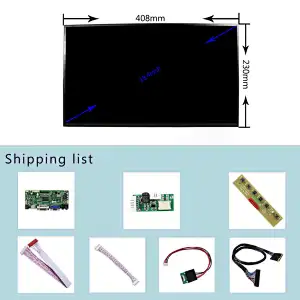

Packing list:
1× HDMI VGA DVI LCD Controller Board M.NT68676
1×18.4"CLAA184FP01 1920X1080  LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
