Model NO.
K000387-M.NT68676.2A+IPEX40P0.5 2ch 6bit+17.3inch 1600*900
Quantity:

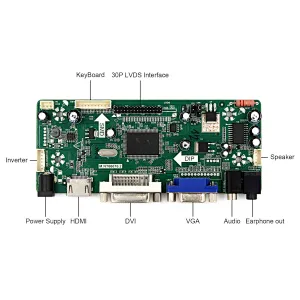

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 3A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
17.3" 1600X900 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution1600RGB)×900
Outline Size 398.1 ×232.8×6(H×V×D)
Display Area 381.89 × 241.81 (H×V)
Brightness 220 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 6-bit) , Connector , 40 pins

Backlight  LED
Input Voltage  3.3V (Typ.)

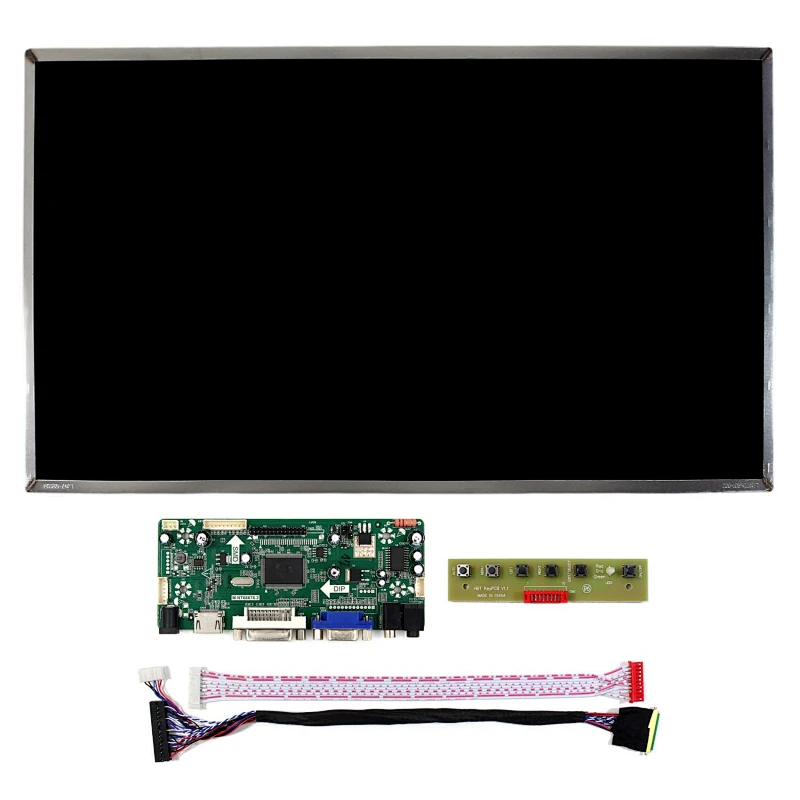

Packing list :

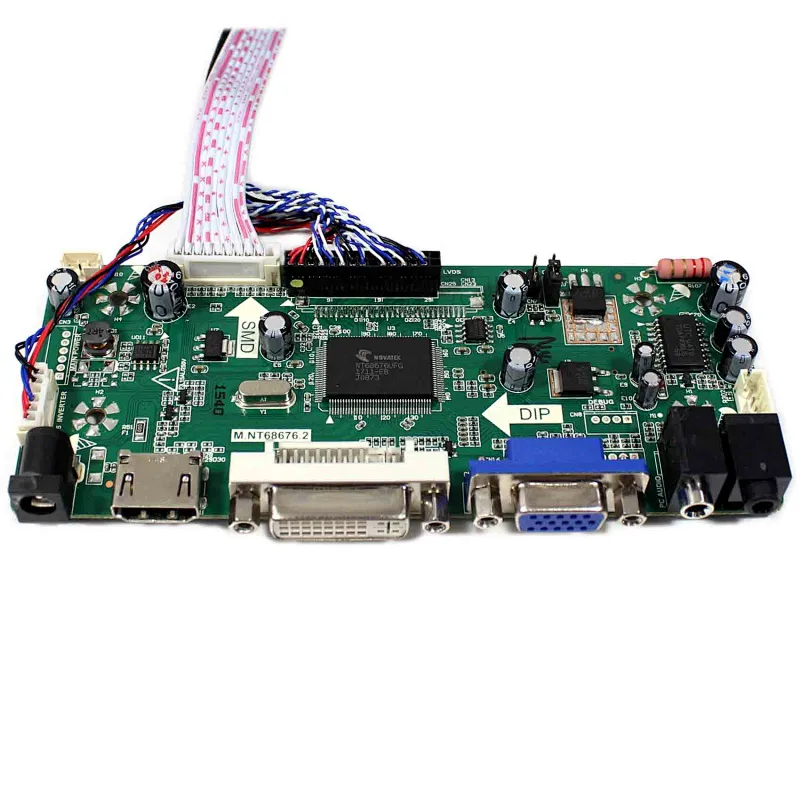

 HDMI VGA DVI LCD Controller Board M.NT68676

1× 17.3inch 1600X900 LCD Screen (One of LP173WD1 B173RW01 LTN173KT01-A01 N173FGE-L21 N17306-L02 LTN173KT03)

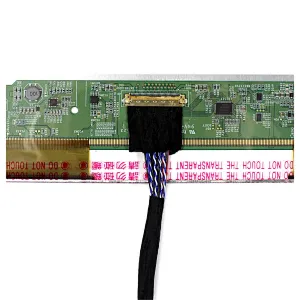

 LVDS Cable
 Keyboard With Cable
