Model NO.
A000015-HSD080IDW1-C
Quantity:

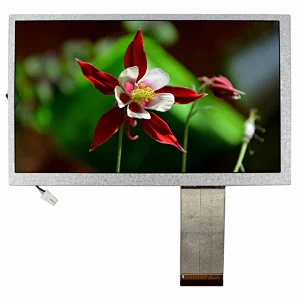

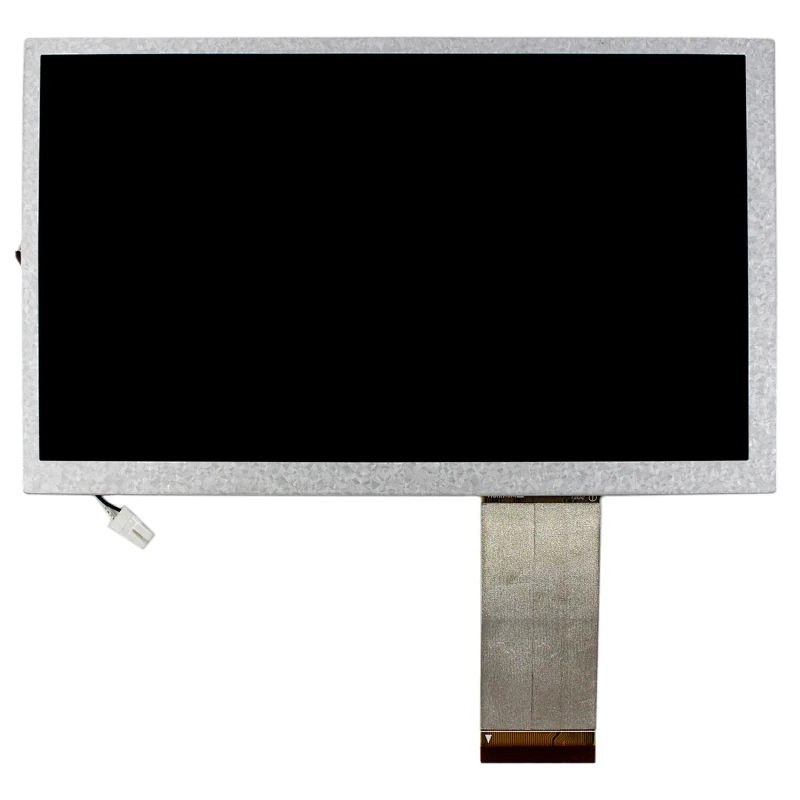

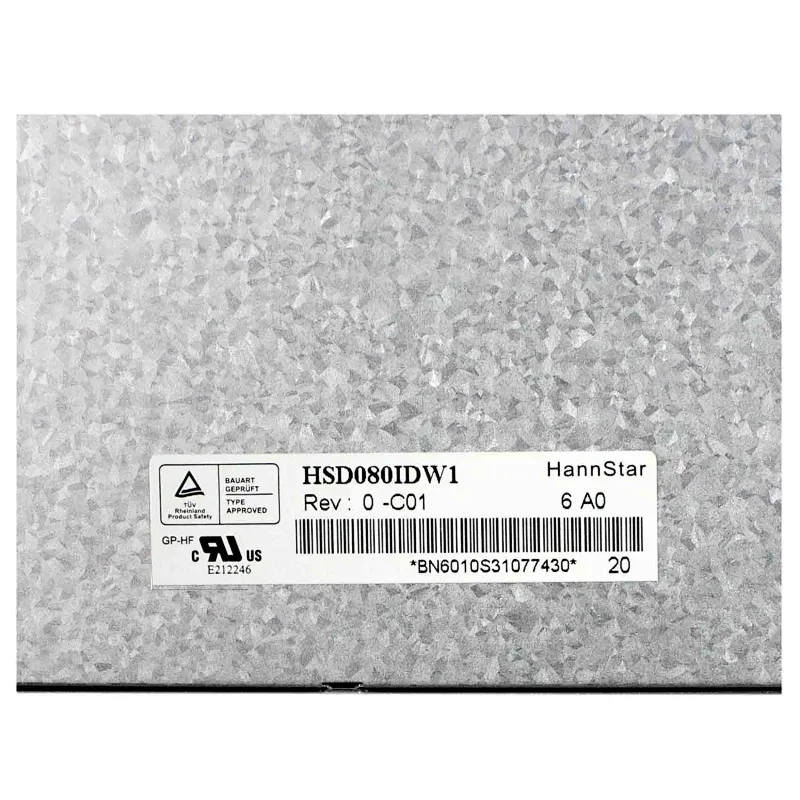

8"HSD080IDW1-C 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 192.8 ×116.9×6.9(H×V×D)
Display Area 176.64 ×99.36 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 6/8-bit) , 60 pins , FPC

Backlight  WLED
Input Voltage  3.3V (Typ.)
Packing list :
8inch HSD080IDW1-C 800X480 LCD Screen
