Model NO.
K002875- VS104T-004A
Quantity:

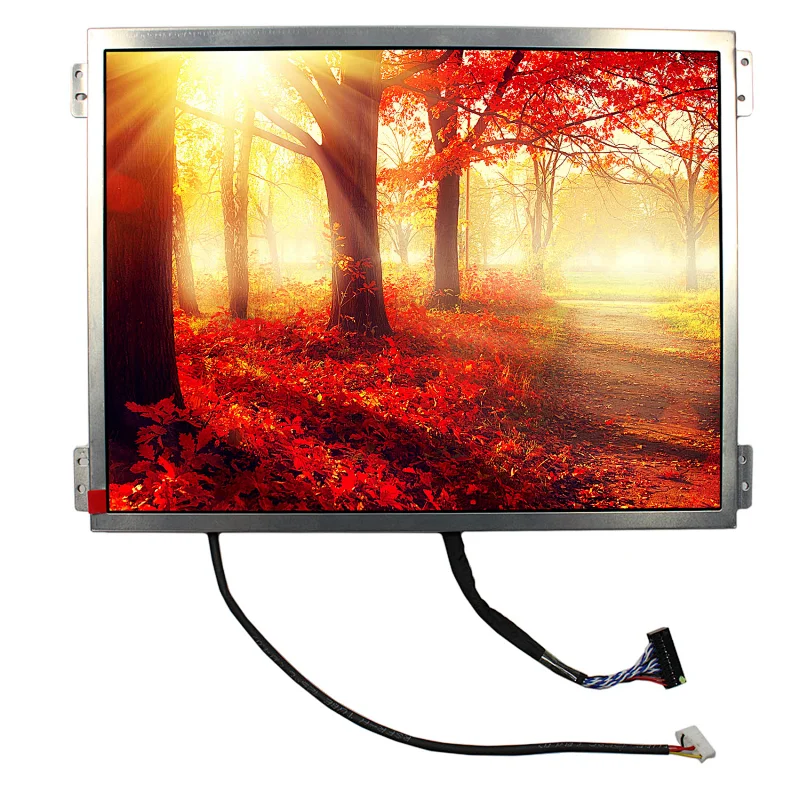

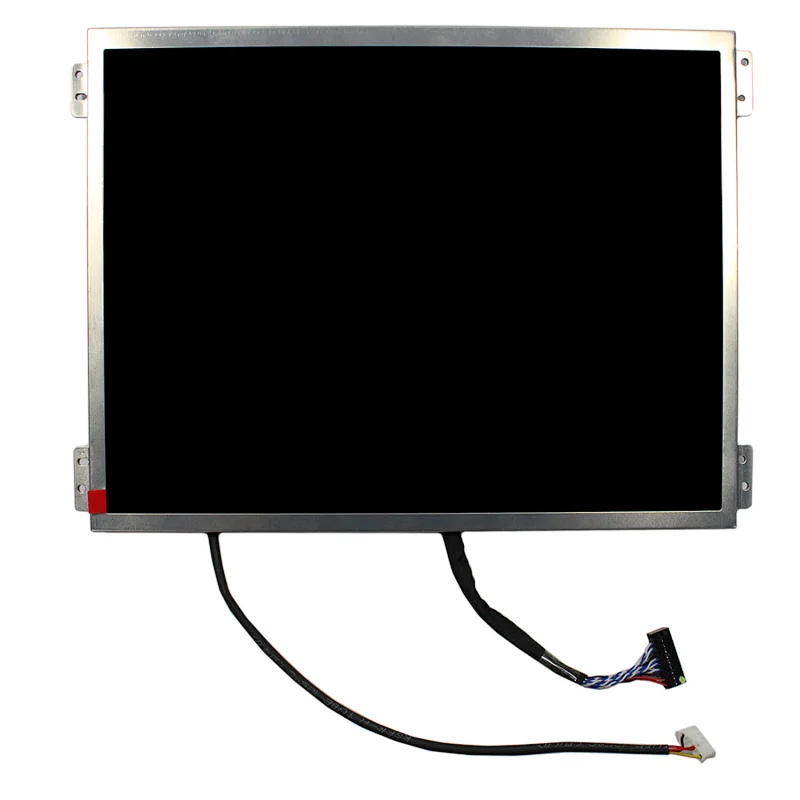

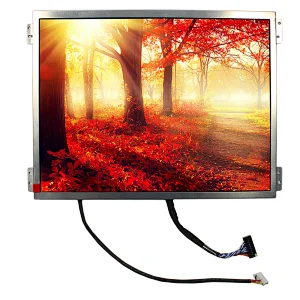

10.4"VS104T-004A  1024X768 LCD Screen:
Replacement screen for G104XVN01.0,G104X1-L03
Display Mode  IPS Pro, Normally Black, Transmissive
Resolution 1024×768

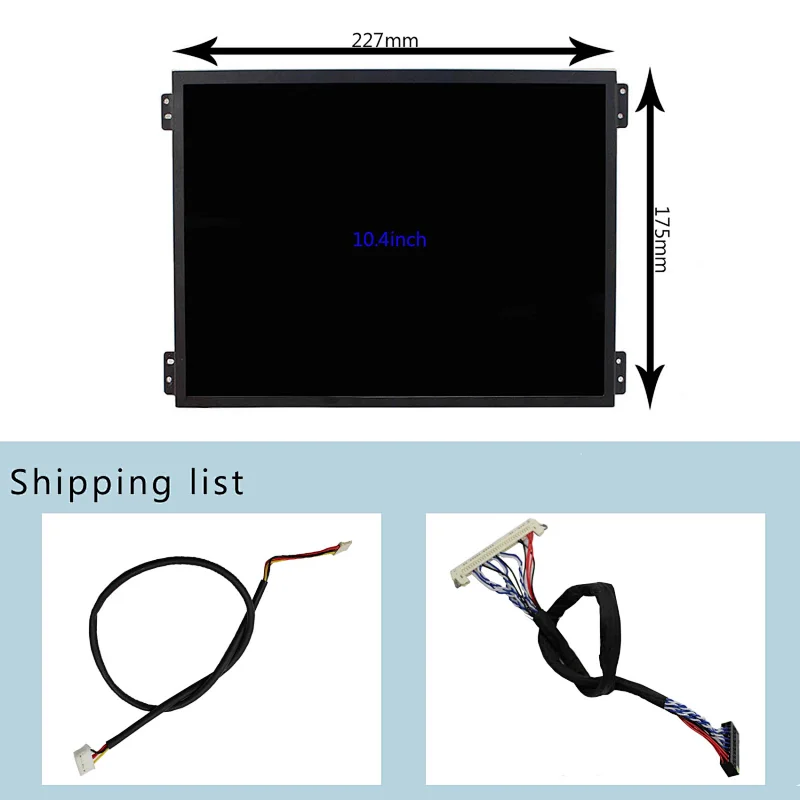

Outline Size 227.00×175.80×7 (H×V×D)
Display Area 210.43 × 157.824 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 30 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)
Packing list :
10.4inch VS104T-004 1024X768 LCD Screen

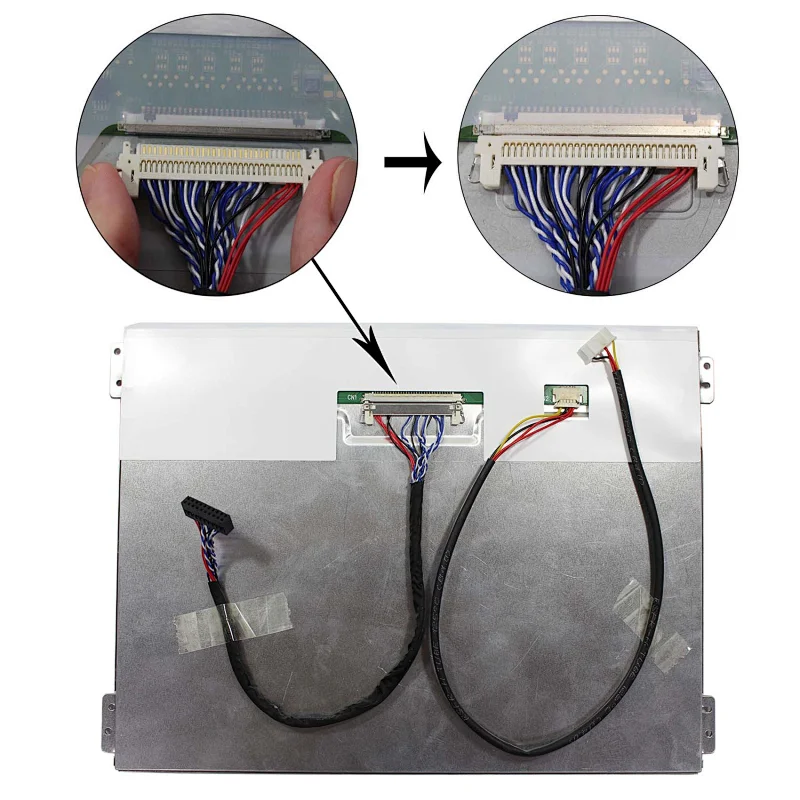

 Converter Board
 LVDS Cable
