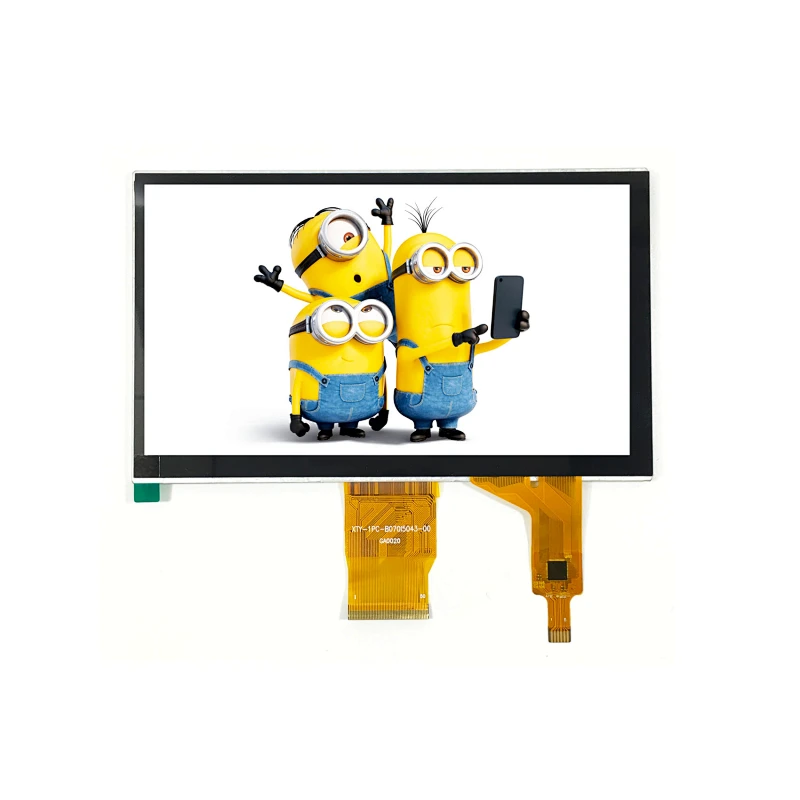

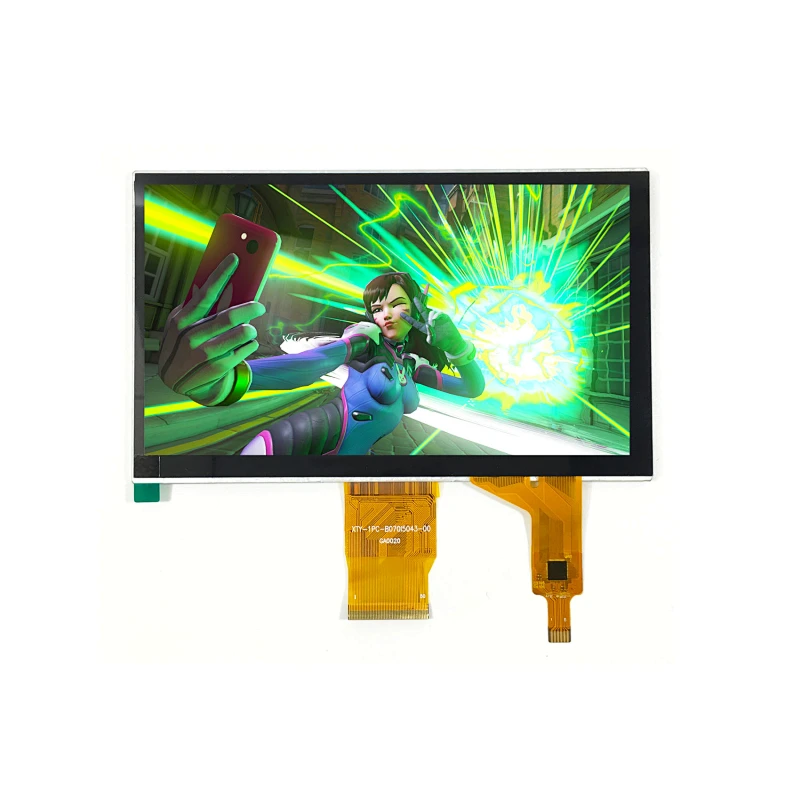

7inch VS070-I5024H45C-02 IPS LCD Screen With Capacitive Touch Sensor
7inch VS070-I5024H45C-02 IPS LCD Screen With Capacitive Touch Sensor
7inch VS070-I5024H45C-02 IPS LCD Screen With Capacitive Touch Sensor
7inch VS070-I5024H45C-02 IPS LCD Screen With Capacitive Touch Sensor
7inch VS070-I5024H45C-02 IPS LCD Screen With Capacitive Touch Sensor
7inch VS070-I5024H45C-02 IPS LCD Screen With Capacitive Touch Sensor
7inch VS070-I5024H45C-02 IPS LCD Screen With Capacitive Touch Sensor

7inch VS070-I5024H45C-02 IPS LCD Screen With Capacitive Touch Sensor

Model NO.
K002274-VS070-I5024H45C-02 IPS
Quantity:
7"AT070TNA2 1024X600 LCD Screen:
Display Mode  IPS, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 164.9 × 100×3.5 (H×V×D)
Display Area 154.21 ×85.92(H×V)
Brightness300 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight  WLED
Input Voltage  3.3V (Typ.)
7inch Capacitive Touch Sensor
Compatible With 7inch 800x480 1024x600LCD Screen
Interface I2C.
Pin1:VDD
Pin2:SCL
Pin3: SDA
Pin4:GND
Pin5: INT
Pin6:WAKE
Dimension Size: 163.6mm x 96.86 mm
Display Area154.08mm x 85.92 mm
Support five points
Packing list :
7inch VS070-I5024H45C-02 IPS LCD Screen With Capacitive Touch Sensor
