TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board
TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board
TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board
TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board
TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board
TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board
TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board
TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board
TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board
TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board
TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board

TFT-LCD 3.5inch 800X600 VS035SD1 LCD Screen With HDMI VGA+2AV LCD Controller Board

Model NO.
K0024971- VS-TY2660-899+VS035SD1 800x600
Quantity:

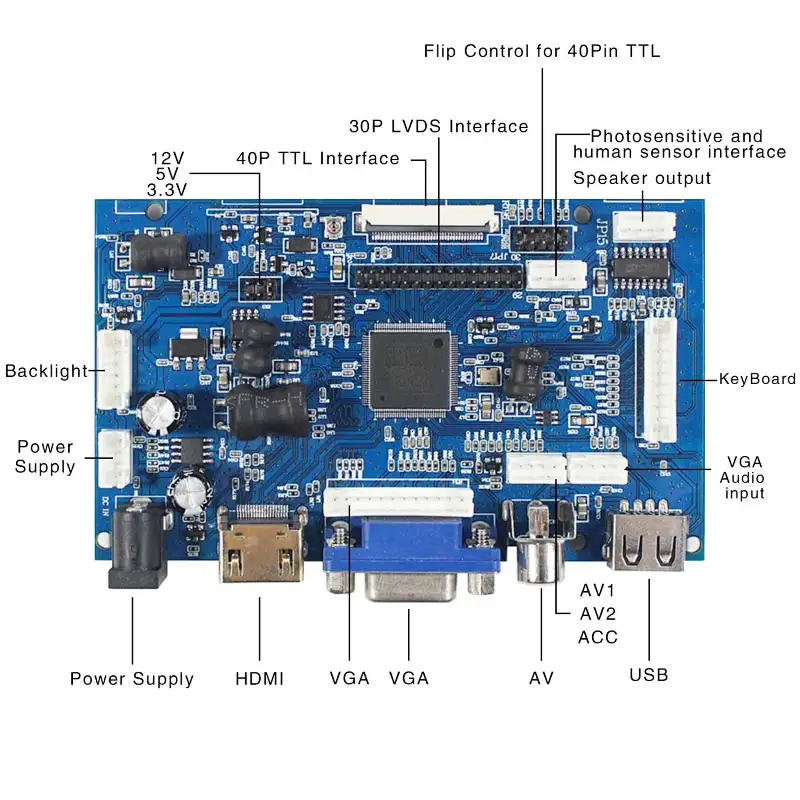

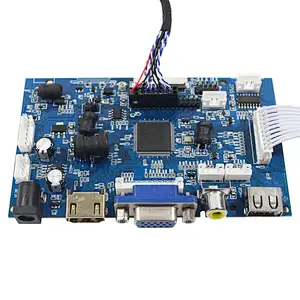

LCD Controller Board:
HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HDMI VGA AV1 AV2 USB
HDMI: Support HDMI 1.4
VGA: Support Audio Input
CVBS2 Channel AV-CVBS
ReversingFunction: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2
USB: Support VideoPlayback,PicturePlayback,TextPlayback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of thedriver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 110mm x 66mm x 12mm

3.5"VS035SD1 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution800RGB)×600
Outline Size 84.03 × 65.24×3 (H×V×D)
Display Area 71.28 × 53.46 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 50/65/65/65 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6-bit) , FPC , 50 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

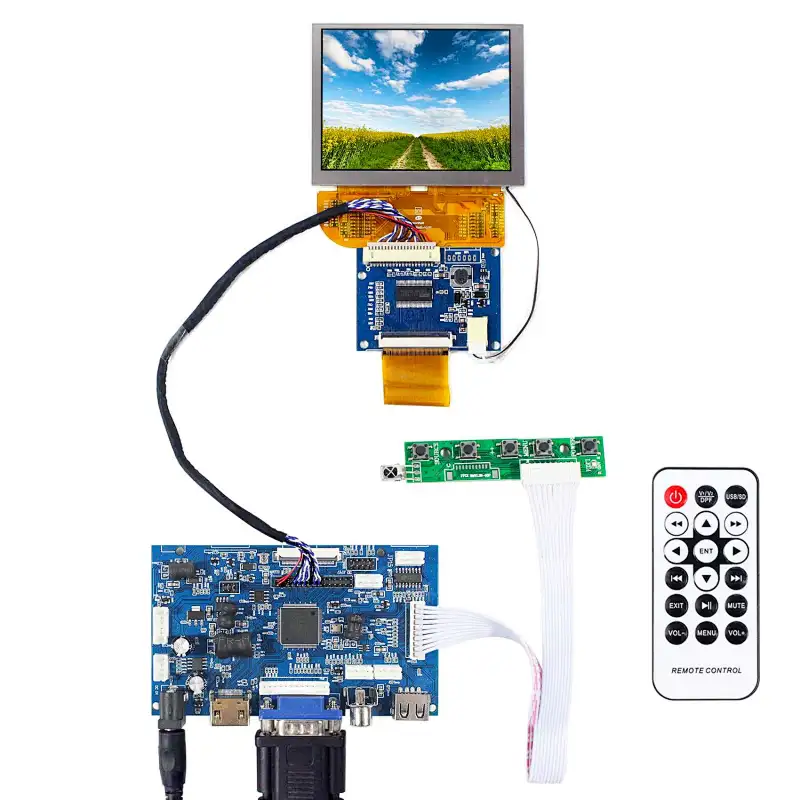

Packing list :
1× HDMI VGA+2AV LCD Controller Board VS-TY2660H-V899
1× 3.5inch VS035SD1 800X600 LCD Screen
1× Converter Board VS-TCON50-V1
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
