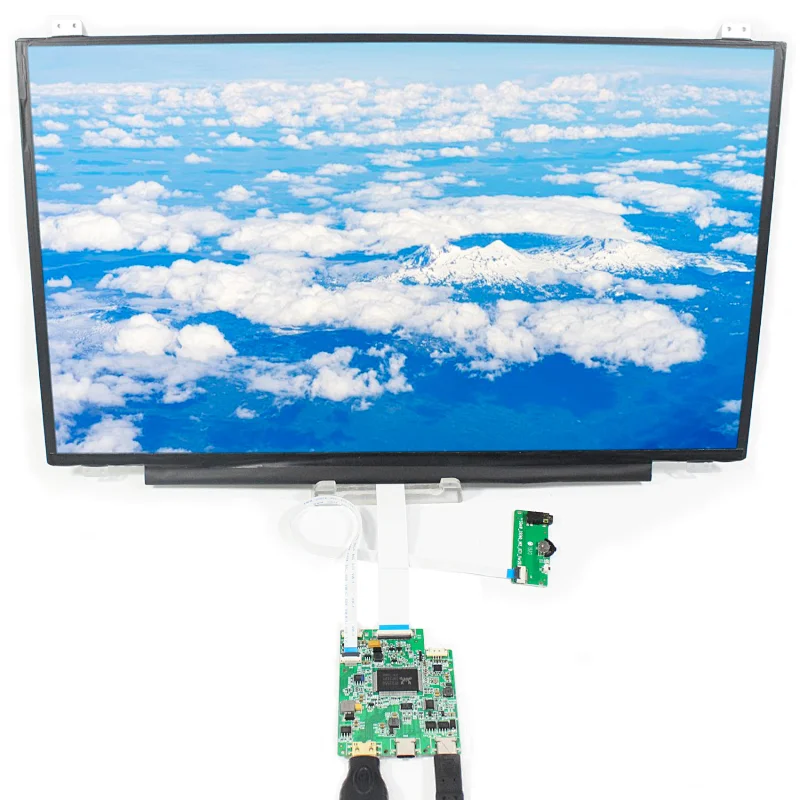

Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen
Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen
Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen
Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen
Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen
Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen
Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen
Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen
Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen
Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen
Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen

Type C HD MI LCD Controller Board With 15.6inch B156HAN01 1920X1080 IPS LCD Screen

Model NO.
K002282-VS-RTD2556HC30-V1 30pin+EDP-B156HAN01.2 1920X1080
Quantity:

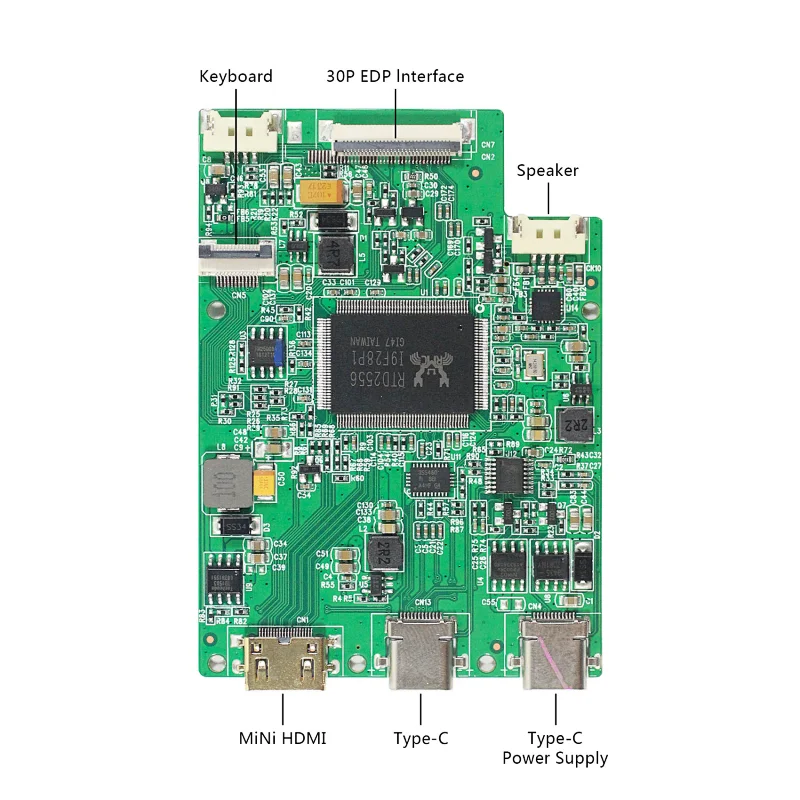

LCD Controller Board:
HDMI Type C Control Board Work for 30Pin EDP LCD Screen
Input Power Adapter: HDMIType-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Audio Speaker
Standby Model <0.3W
Input: Type-C Mini HDMI
Output:Type C USB (max 500mA)
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski Nederlands Korean Japanese
Board Size: 80mm x 51mm x 8mm
15.6"LCD Screen B156HAN01.2:
Display Mode N, ADS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 359.5 × 223.8 × 3 (H×V×D)
Display Area 344.16 × 193.59 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

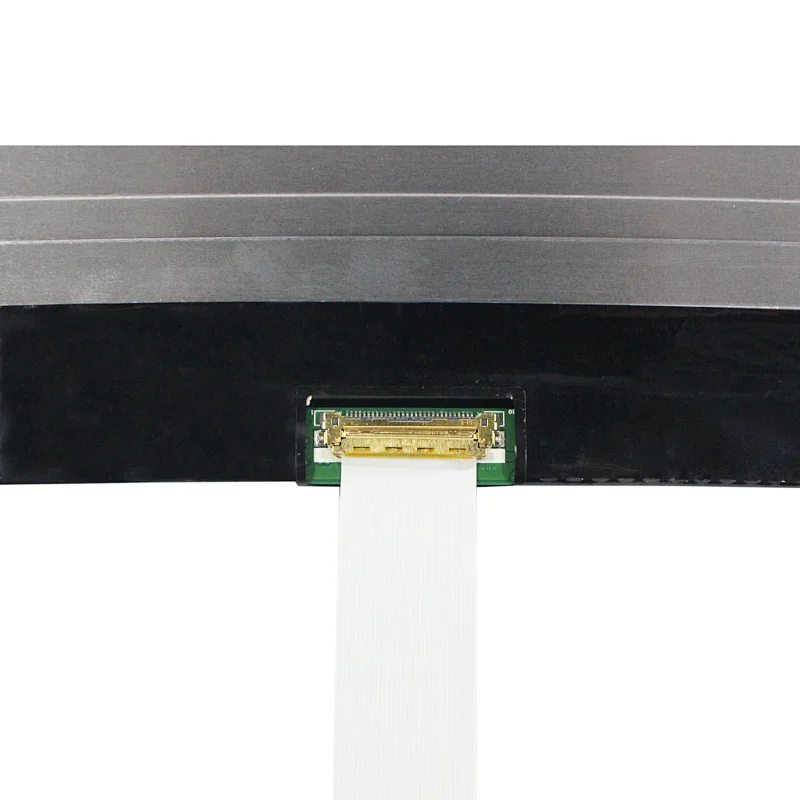

Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage  3.3V (Typ.)

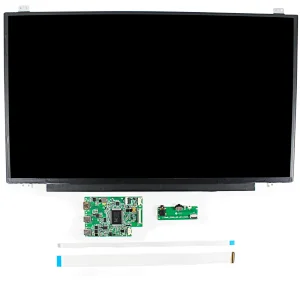

Packing list :

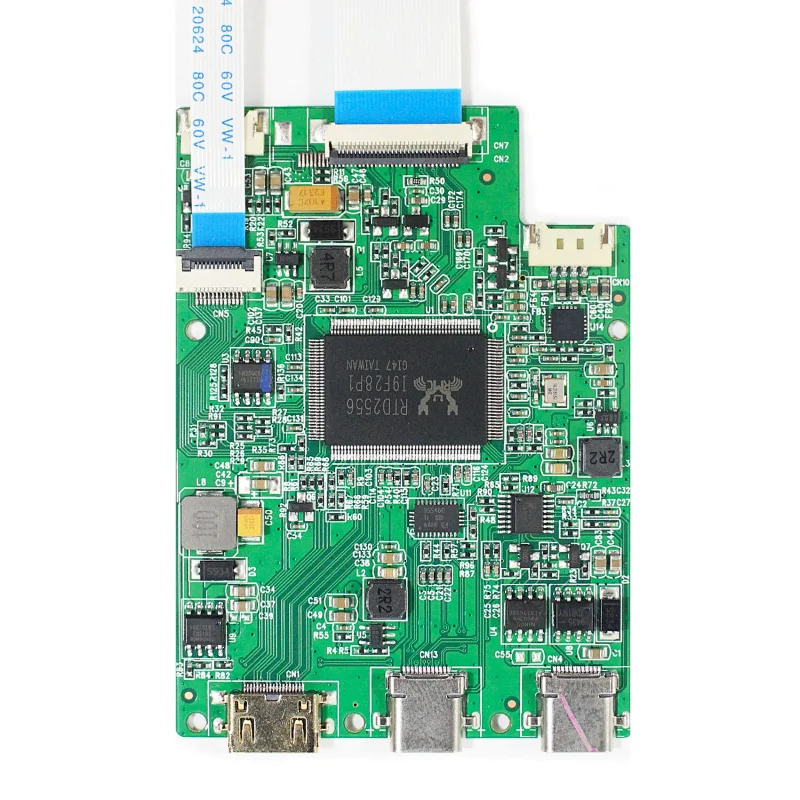

1× HDMI TYPE-C LCD Controller Board VS-RTD2556HC30-V1
1× 15.6inch B156HAN01.2 1920X1080 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
