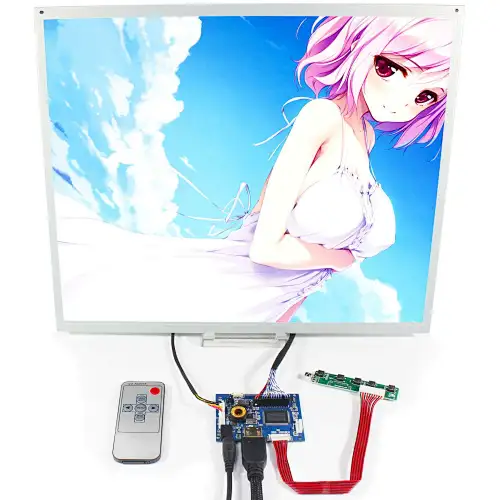

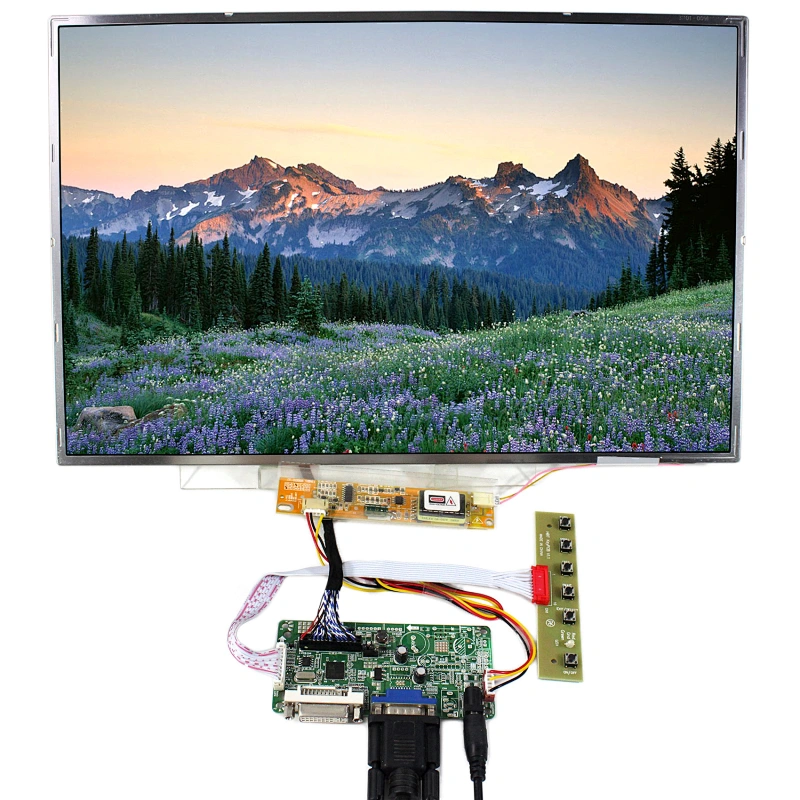

Resolution 1920x1200 17" LCD laptop screen with DVI VGA Driver board

Model NO.
K000384 RT2281+17"1920x1200 Lcd
EXW or FOB ShenZhen
Minimum order quantity:
Country of Origin:
Stock Time:
3-7days Days
  • Type:Lcm
  • Size:17"
  • Resolution:1920x1200
  • Interface:LVDS
  • Connector:40 pin
  • Display mode:Transmissive
  • Backlight:CCFL
  • Item:LP171WU1 LP171WU2
  • Product Name:LCD Dispaly Panels
  • LCD Controller Board:DVI,VGA
  • Place of Origin:CN;GUA
  • Display Size:17inch
  • Model Number:RT2281+17"1920x1200 Lcd(K000384)
  • Brand Name:VS

VGA DVI LCD Controller Board RT2281 with 17inch 1920x1200 CCFL 30Pin LCD Panel

LCD Panel such as:

LP171WU1 LP171WU2 LP171WU3 LTN170WU LTN170U1 LTN170U2 B170UW01 LTN170CT02 LTN170CT03 LTN170CT05 LTN170CT05

Product Description

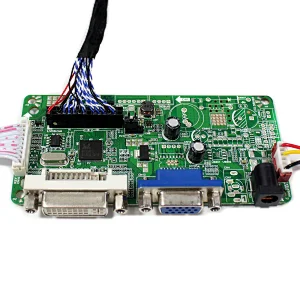

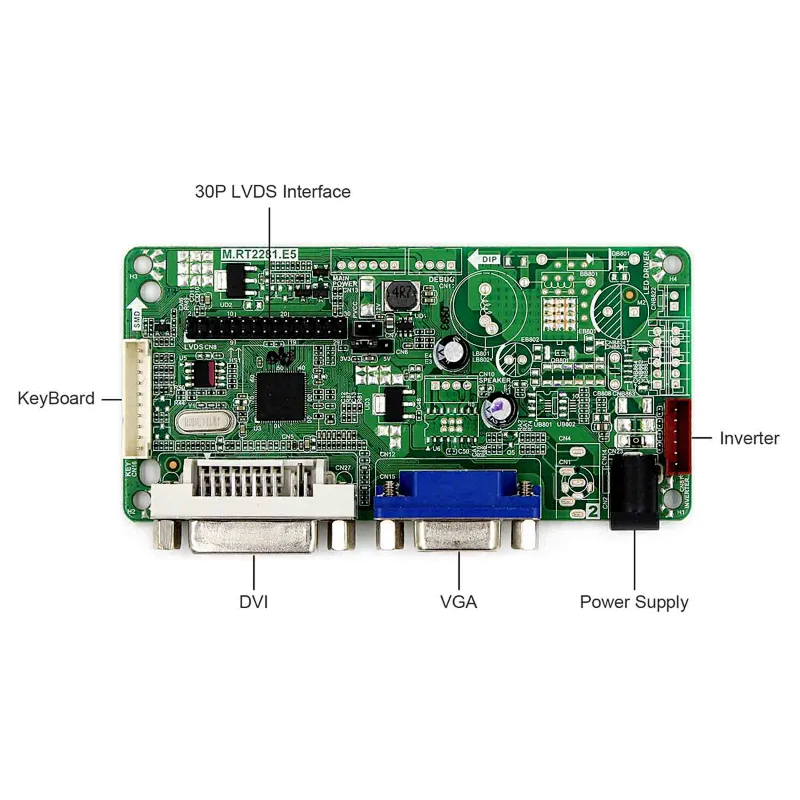

LCD Controller Board RT2281:


It supports LED/LCD panels which resolution is up to 1920x1080

Size: 107mm(L)*51.5mm(W)*18mm(H)

Input Power Adapter: 12Vdc More than 2A


OSD LANGUAGE: English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional) And So On

KEY FUNCTION: Auto, Menu, Vol-, Vol+, Power

Operation temperature: 0~40°C.

Standby Power Consumption < 0.2W(Board Only)

Panel Interface: Dual/Single LVDS interface

Panel Resolution: Up to 1920x1080

17"1920X1200 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1920RGB)×1200

Outline Size 382.2 ×243.3×6.6(H×V×D)

Display Area 367.2× 229.5 (H×V)

Brightness 300 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

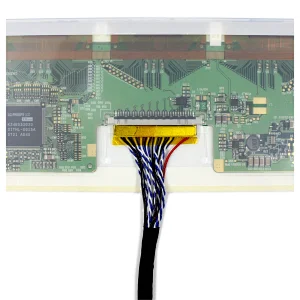

Signal Interface LVDS (2ch, 6-bit) , Connector , 30 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

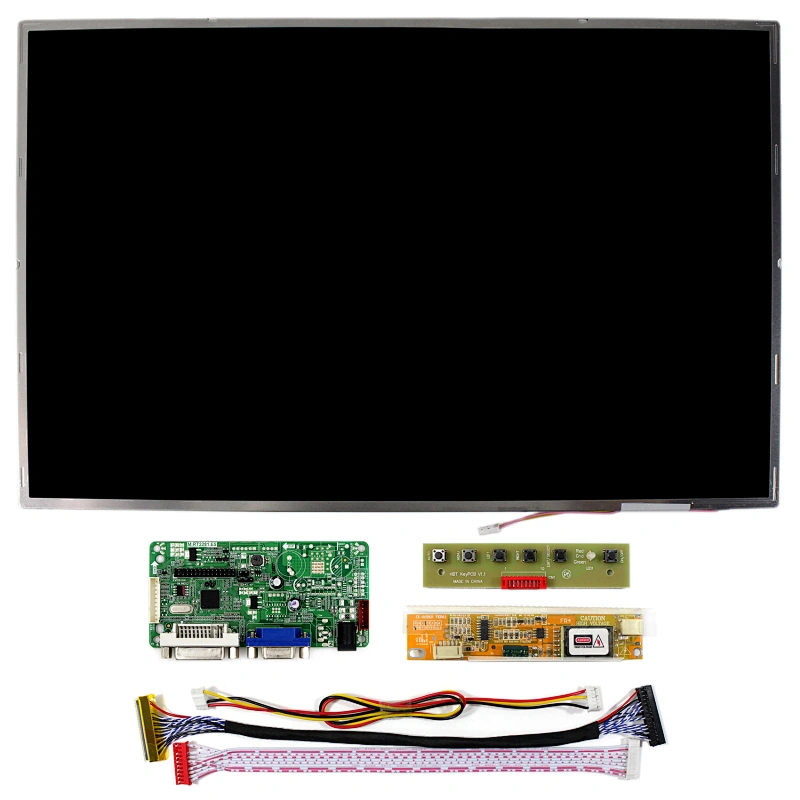

Packaging & Shipping


LCD Controller board RT2281

1× 17.3inch 1920x1200 LCD panel

1× Inverter Board

1× LVDS Cable

1× Keyboard with Wire

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.


Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Company Information


VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
