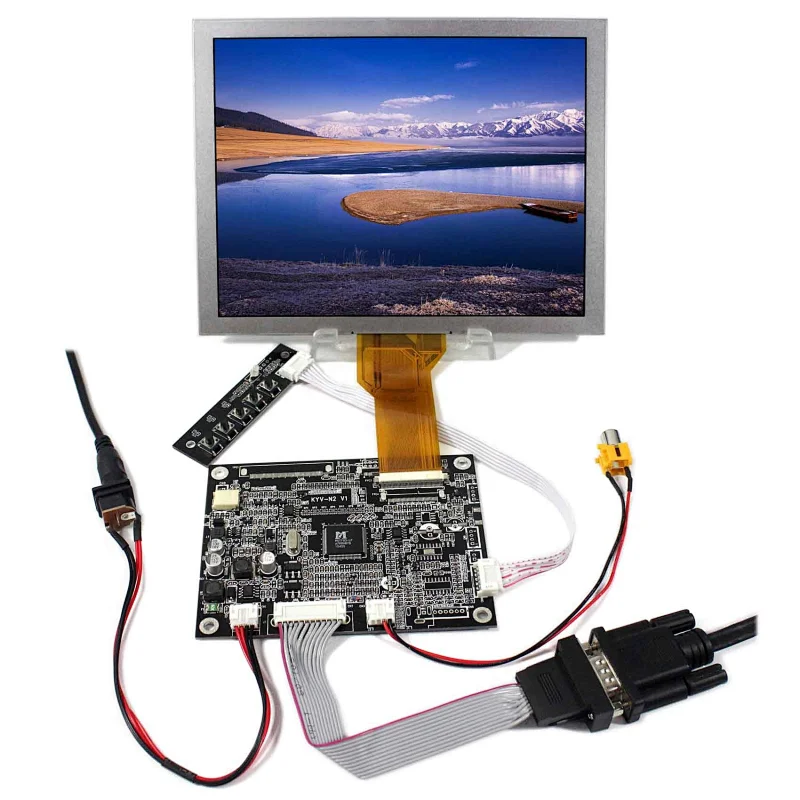

TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board
TFT LCD Module 800x600 with VGA AV LCD Control Board

TFT LCD Module 800x600 with VGA AV LCD Control Board

Model NO.
K000232 KYV-N2 V1+EJ080NA-05B
Quantity:

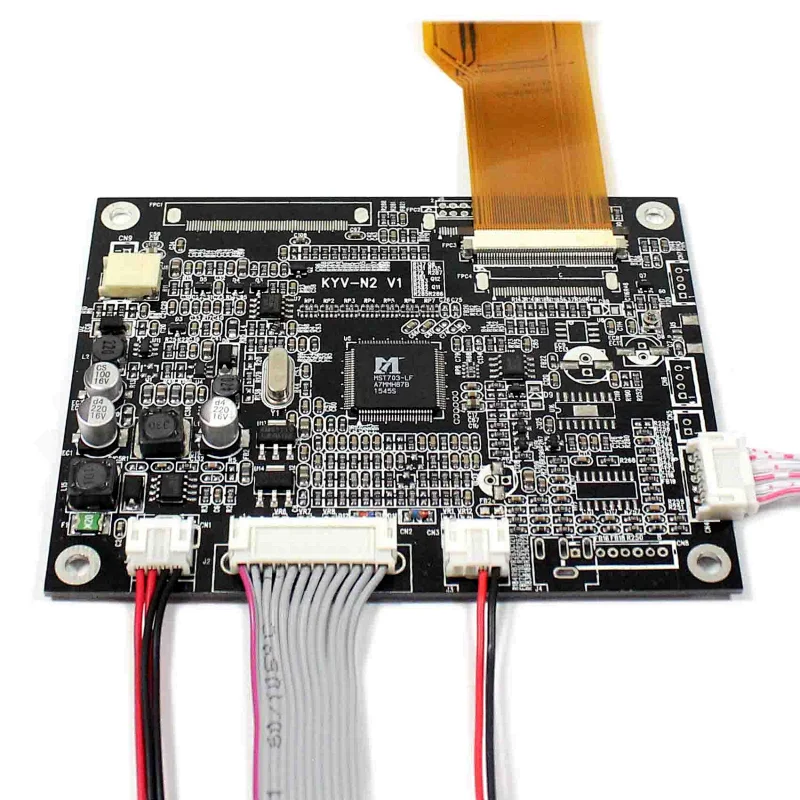

  • LCD Controller Board:
    VGA AV LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: VGA AV
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:110mm x 85mm x 10mm
  • 8"EJ080NA-05B 800X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800(RGB)×600
    Outline Size 183 × 141×5.9 (H×V×D)
    Display Area 162 × 121.5 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× VGA+AV LCD Controller Board KYV-N2 V1
    1× 8inch EJ080NA-05B 800X600 LCD Screen
    1× Power Supply Cable
    1× VGA Cable
    1× AV Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
