Model NO.
VS-V59AV1-V1+VS104T-001A (K001410)
Country of Origin:
FOB SHENZHEN
Quantity:
  • Place of Origin:Guangdong, China
  • Model Number:VS-V59AV1-V1+VS104T-001A (K001410)
  • Brand Name:VS
  • Type:TFT
  • Size:10.4inch
  • Resolution:800x600
  • Product Name:LCD Dispaly Screen
  • Display mode:Normally White,Transflective
  • Interface:LVDS
  • Connector:20pin
  • Brightness:400cd/m2
  • Board:VGA+2AV+Audio+USB
  • Support:reversing
  • FPV:Support

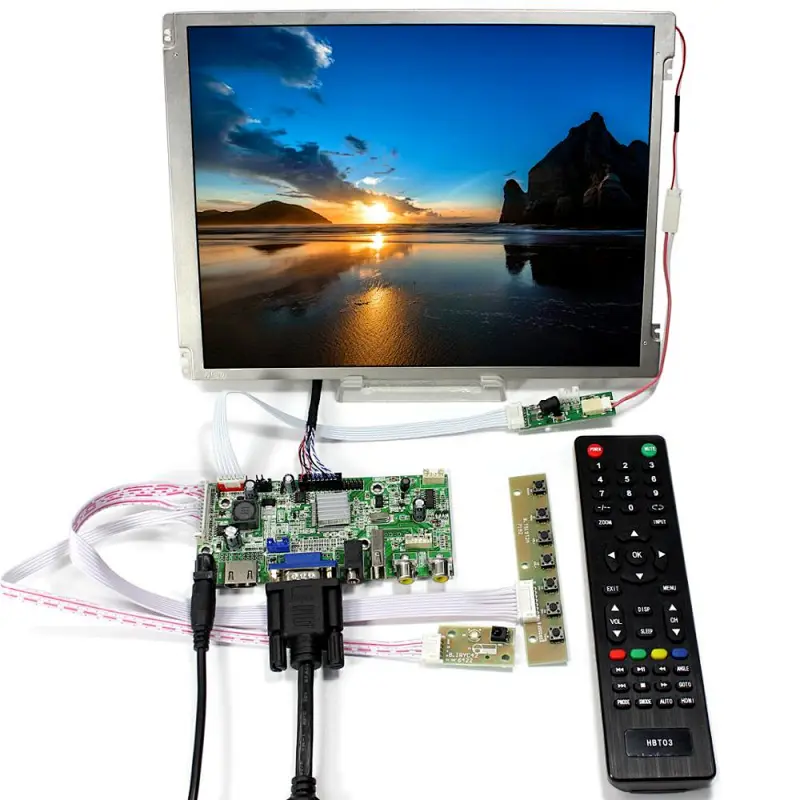

LCD Controller board VS-V59AV-V1 with 10.4inch 800x600 LCD panel replacement G104SN03 V1



Product Description

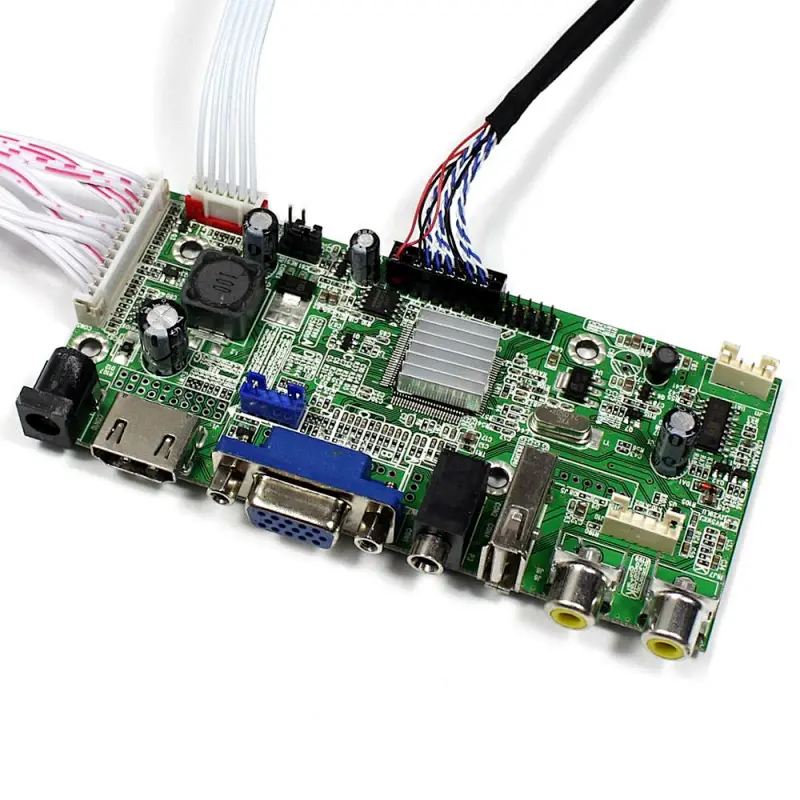

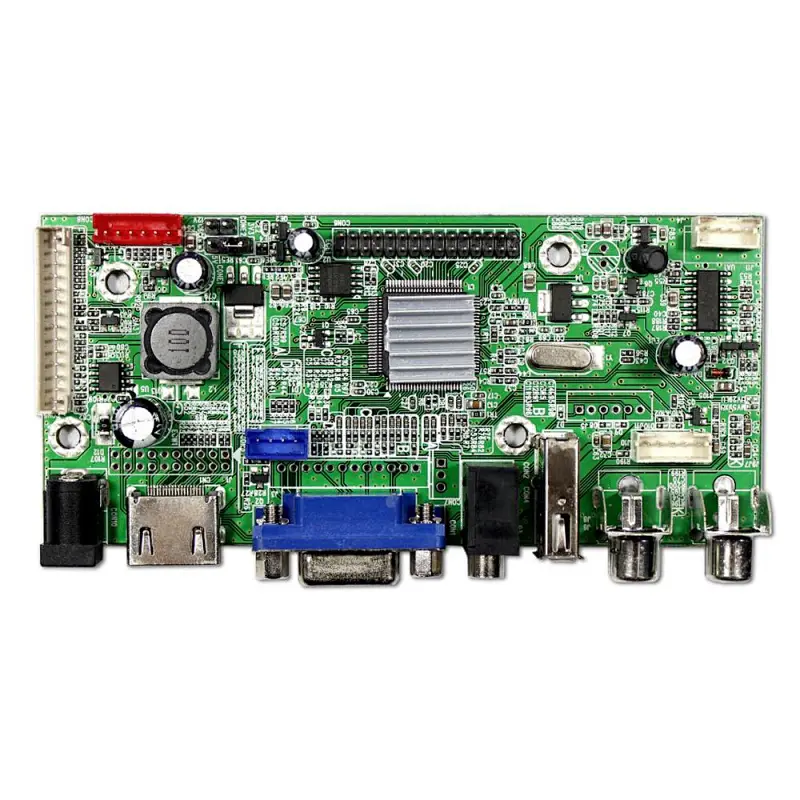

LCD Controller board VS-V59AV-V1:



VS-V59AV-V1 is multi-fuction LCD Driver Board. It widely used for DIY LCD monitor,



AV2 connect to view carmera and support reversing



Board Size: 118mm(L)*54mm(W)*17mm(H)



Input Power Adapter: 12Vdc More than 2A



OSD LANGUAGE: English, French, German, Italian, Spanish, Portuguese, Korean (optional) And So On



KEY FUNCTION: Auto, Menu, Vol-, Vol+, Power



Panel Interface: 1ch 6bit 2ch 6bit 1ch 8bit 2ch 8bit LVDS signal



Operation temperature: 0~50°C.



Support FPV application



Support remote controller



Support reversing.



10.4"800x600 LCD Screen VS104T-001A :

Display Mode TN, Normally White, Transmissive


Resolution: 800x600



Signal Interface: LVDS 20 pins



Backlight:WLED


Outline Size: 236× 174.3 × 5.6 (H×V×D)


Display Area: 211.2 × 158.4 (H×V)


Brightness: 400 cd/m² (Typ.)

Contrast Ratio: 500:1 (Typ.) (TM)



Viewing Angle: 60/60/35/65 (Typ.)(CR≥10)



Voltage Input: 3.3V



Storage Temp: 0 ~ 50 °C

Packaging & Shipping

LCD Controller board VS-V59AV-V1



1× 10.4inch VS104T-001A 800x600 with LED backlight replacement G104SN03 V1



1× 20pin LVDS cable



1× LED backlight inverter board



1× Keyboard with Wire

Our Services

  1 year warranty from the day the product sold. Some technical issue can be solved online.

FAQ



Trade Term:  EXW Shenzhen  or  FOB Shenzhen



Shipping: DHL, UPS, FedEx, TNT, EMS, Hongkong Post



Payment: T/T HSBC, Paypal, Western Union

Company Information



VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.



The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA),  mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.



VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.



All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.



Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
