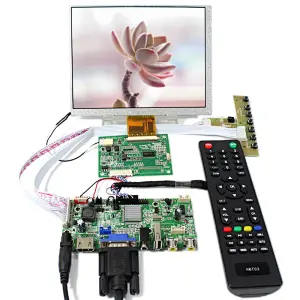

USB LCD Controller Board with CLAA070MA0ACW 7inch LCD Panel

USB LCD Controller Board with CLAA070MA0ACW 7inch LCD Panel

USB LCD Controller Board with CLAA070MA0ACW 7inch LCD Panel

USB LCD Controller Board with CLAA070MA0ACW 7inch LCD Panel

USB LCD Controller Board with CLAA070MA0ACW 7inch LCD Panel

USB LCD Controller Board with CLAA070MA0ACW 7inch LCD Panel

USB LCD Controller Board with CLAA070MA0ACW 7inch LCD Panel

USB LCD Controller Board with CLAA070MA0ACW 7inch LCD Panel

USB LCD Controller Board with CLAA070MA0ACW 7inch LCD Panel

USB LCD Controller Board with CLAA070MA0ACW 7inch LCD Panel

Model NO.: K001045 VS-V59AV-V1+CLAA070MA0ACW

Quantity:

Product Description

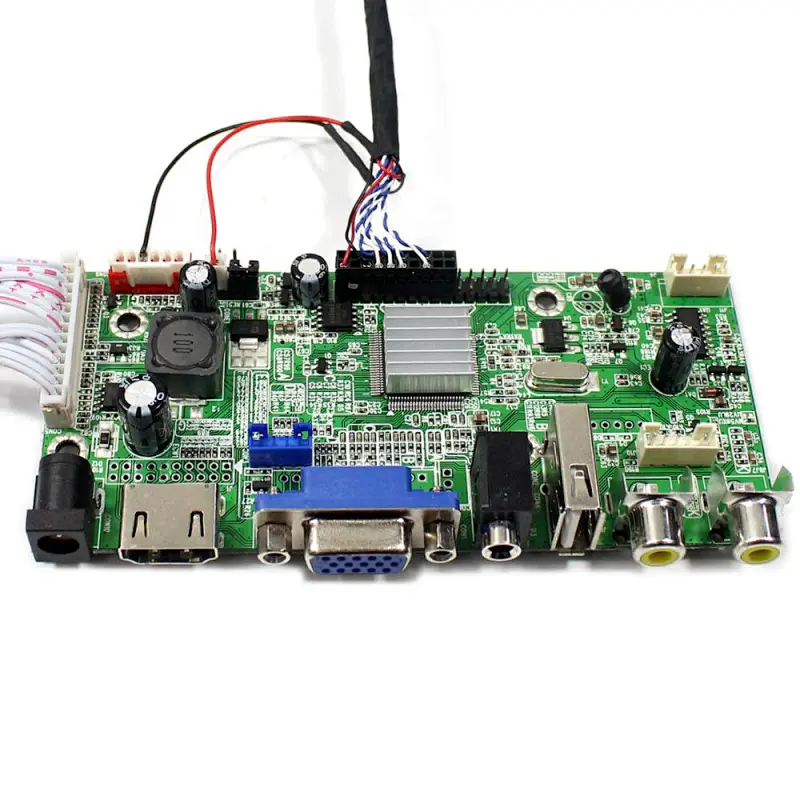

LCD Controller Board:
HDMI VGA AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC
Video Input: HDMI VGA AV USB
Audio Input: HDMI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:122mm x 52mm x 17mm
7"CLAA070MA0ACW 800X600 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 800RGB)×600
Outline Size 154 × 119.2×5.4 (H×V×D)
Display Area 141.6 × 106.2 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6/8-bit) + SPI , FPC , 60 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

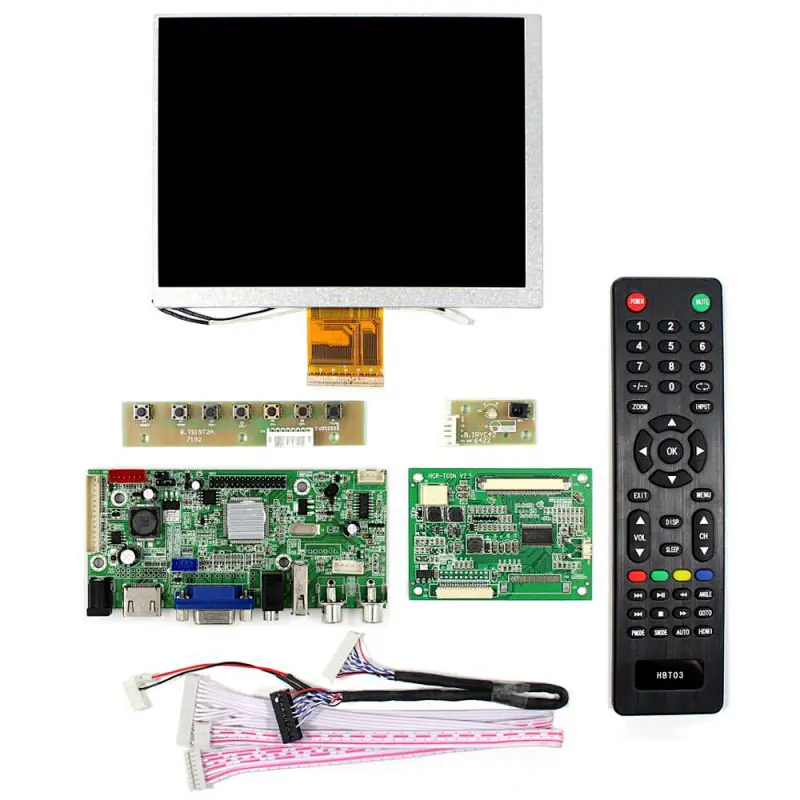

Packing list :
1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V2
1× 7inch CLAA070MA0ACW 800X600 LCD Screen

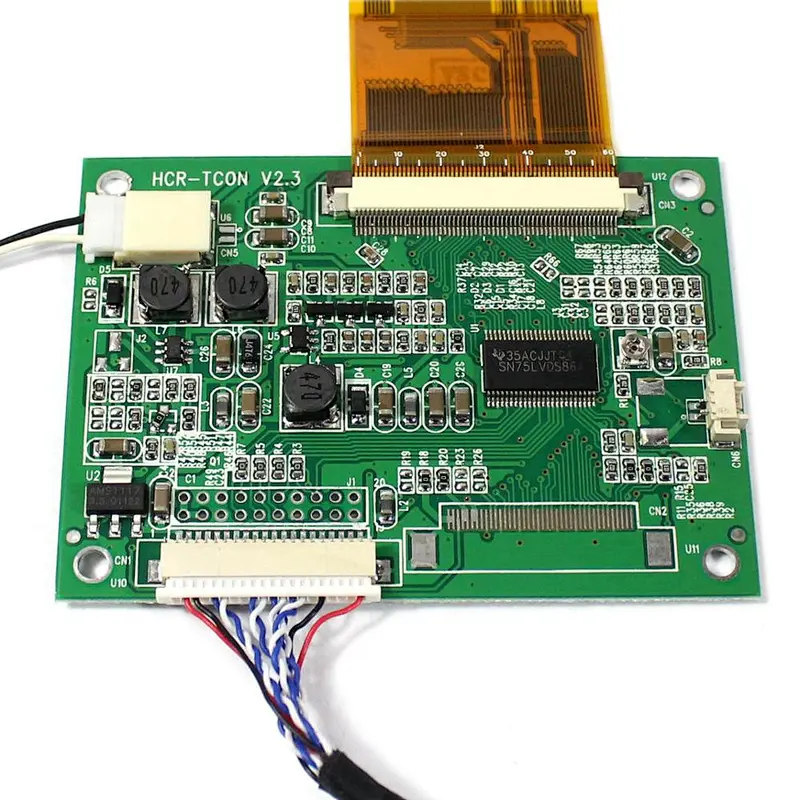

1× Converter Board
1× LVDS Cable
1× Keyboard With Cable
