VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel
VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel
VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel
VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel
VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel
VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel
VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel
VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel
VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel

VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel

Model NO.
K000101 VS-TY40-V1+VS043T-004A
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

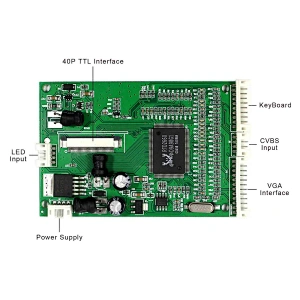

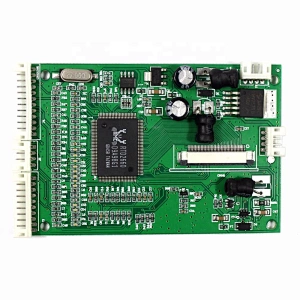

  • LCD Controller Board:
    VGA 2AV LCD Board Work for 40Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:83mm x 58mm x 10mm
  • 4.3"VS043T-004A 480X272 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 480（RGB)×272
    Outline Size 105.5 × 67.2×3.1 (H×V×D)
    Display Area 95.04 × 53.86 (H×V)
    Brightness 500 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

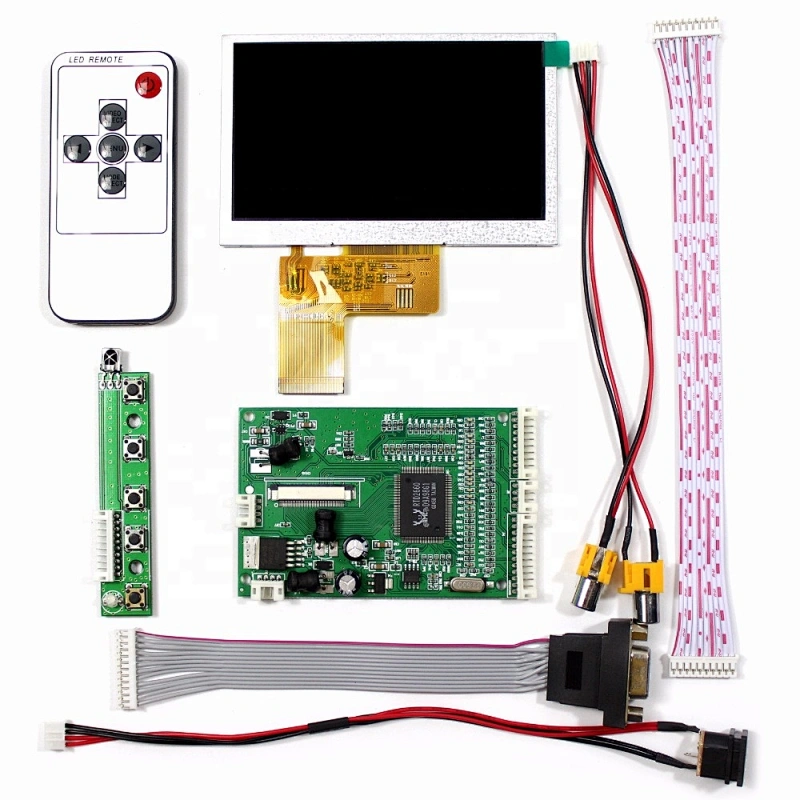

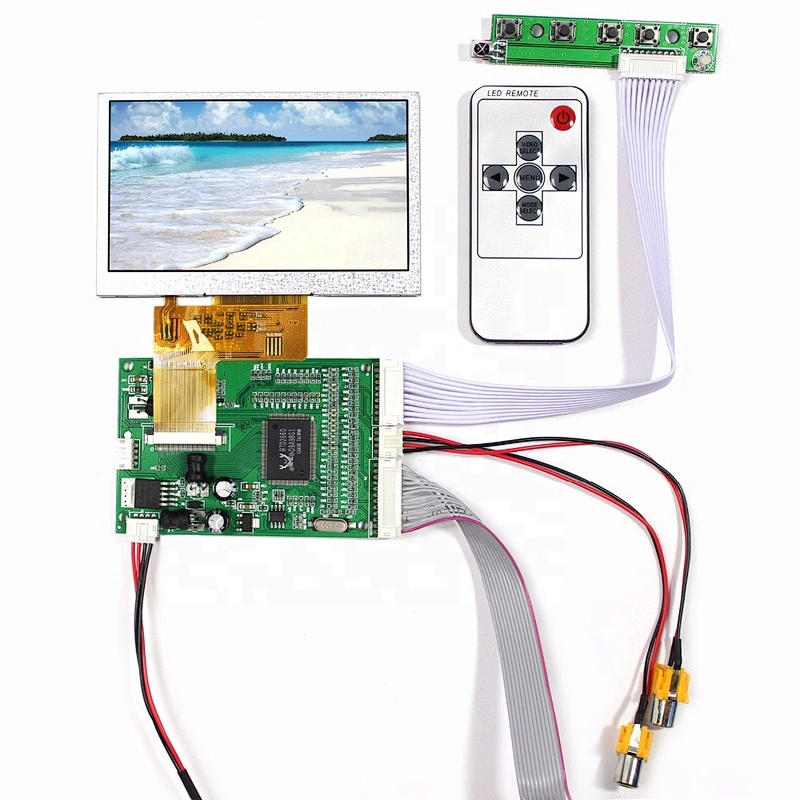

  • Packing list :1×VGA+2AV LCD Controller Board VS-TY40-V1
    1× 4.3inch VS043T-004A 480X272 LCD Screen
    1× VGA Cable
    1× AV Signal Cable
    1× Power Cable

    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
