Model NO.:
VS-TY2662-V1+A065TN14(K000717)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:lcm
  • Size:6.5inch
  • Panel resolution:800x480
  • Display Mode:Normally White, Transmissive
  • VOLTAGE:3.3v
  • Interface:TTL 50pin
  • Product Name:tft lcd
  • Backlight:WLED
  • Brightness:400cd/m2
  • Board:VGA+2AV
  • Place of Origin:CN;GUA
  • Brand Name:VS
  • Display Size:6.5inch
  • Model Number:VS-TY2662-V1+A065TN14(K000717)

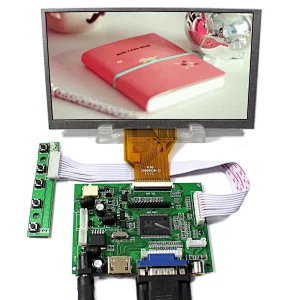

LCD Controller board VS-TY2662-V1 with 6.5inch 800x480 LCD panel AT065TN14

Product Description

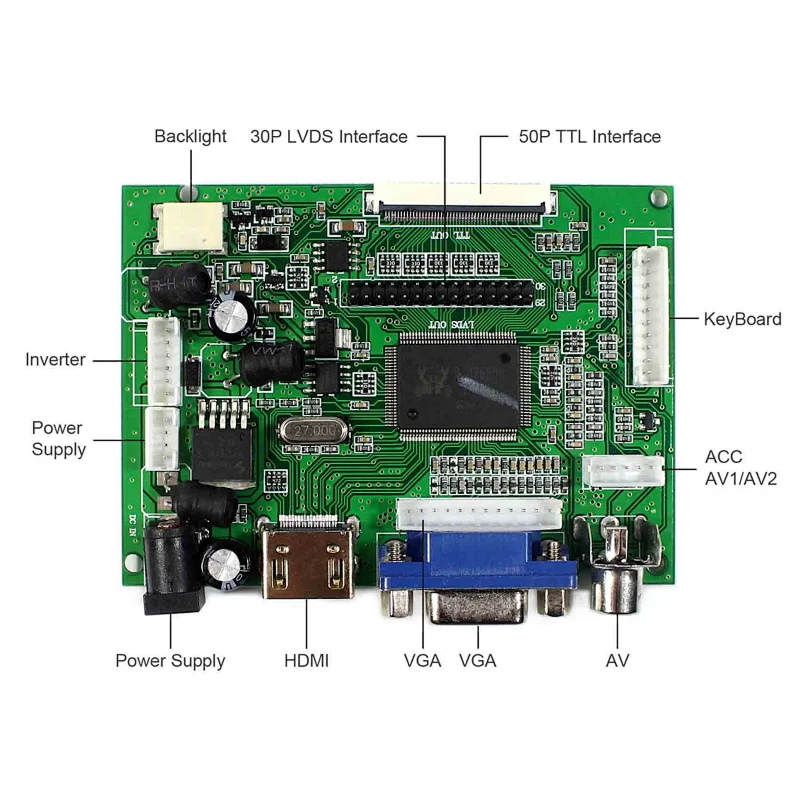

LCD Controller Board VS-TY2662-V1:

It supports between 7 and 22 inch LCD panel with single /dual LVDS interface.

Support reversing function

Size: 90.58mm(L)*65.6mm(W)*12mm(H)

Input Power Adapter: 12Vdc More than 2A

OSD LANGUAGE: English, French, German, Italian, Spanish, Portuguese, Korean (optional) And So On

KEY FUNCTION: Auto, Menu, Vol-, Vol+, Power

Operation temperature: 0~40°C.

standby< 1W

Panel Interface: 50PIN TTL/6Bit 8it Dual/Single LVDS interface

Panel Resolution: Up to 1920x1080

GENERAL PRECAUTIONS:

Don’t wire in the board to power supply before panel is correctly connected

6.5inch 800x480 LCD Screen AT065TN14:

Display Mode: TN, Normally White, Transmissive

Panel Type: a-Si TFT-LCD , LCM


Resolution: 800x480

Aspect Ratio: 17:9(H:V)

Outline Dimension: 155.2×89.4 x5.5 (HxVxD)


Display Area: 143.4×76.7(HxV)

Backlight type: WLED

Luminance: 400cd/m²

Contrast Ratio: 500 : 1 (Typ.) (Transmissive)


Viewing Angle: 70/70/50/70 (Typ.)(CR≥10)

Signal Interface: TTL50pins

Voltage Input: 3.3V


Operating Temperature: -30 ~85 °C

Weight: 127g

Application: Industrial application


Packaging & Shipping

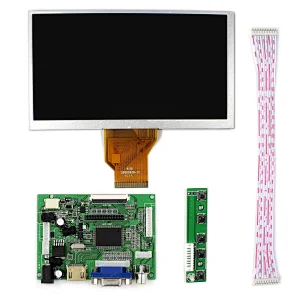

LCD Controller Board VS-TY2662-V1

1× 6.5inch 800x480 AT065TN14 LCD panel

1× Keyboard with Wire

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.
