Model NO.
K000163 VS-TY5060-V1+CLAA070MA0ACW+Remote control
Quantity:

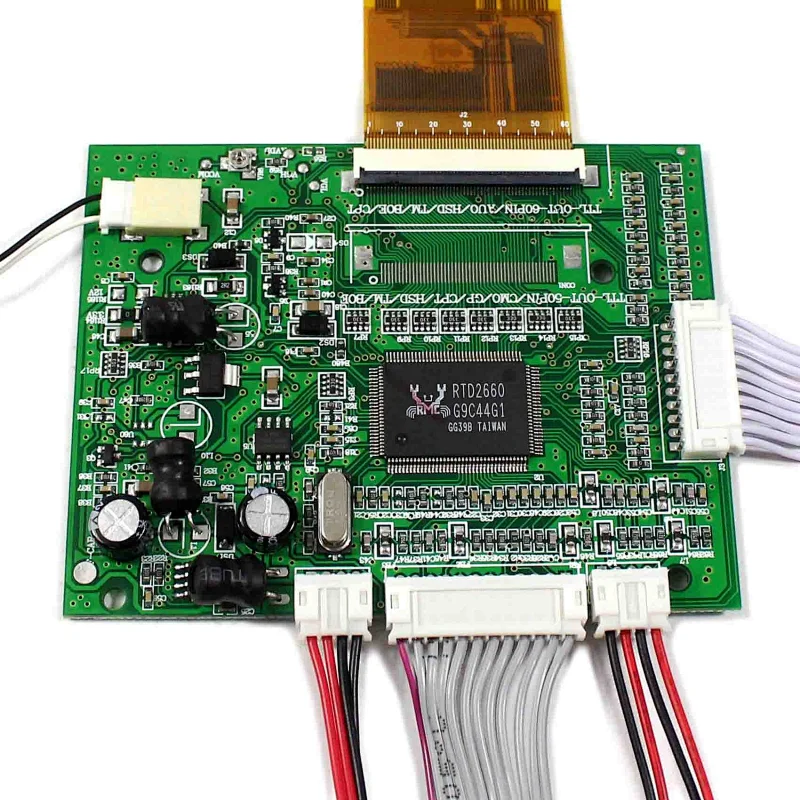

  • LCD Controller Board:
    VGA 2AV LCD Board Work for 50Pin and 60Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:90mm x 70mm x 12mm
  • 7"LCD Screen CLAA070MA0ACW :
    Display Mode N, Normally White, Transmissive
    Resolution 800RGB)×600
    Outline Size 154 × 119.2 × 5.4 (H×V×D)
    Display Area 141.6 × 106.2 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface TTL (1 ch, 6/8-bit) , FPC , 60 pins
    BacklightWLED
    Input Voltage 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL)

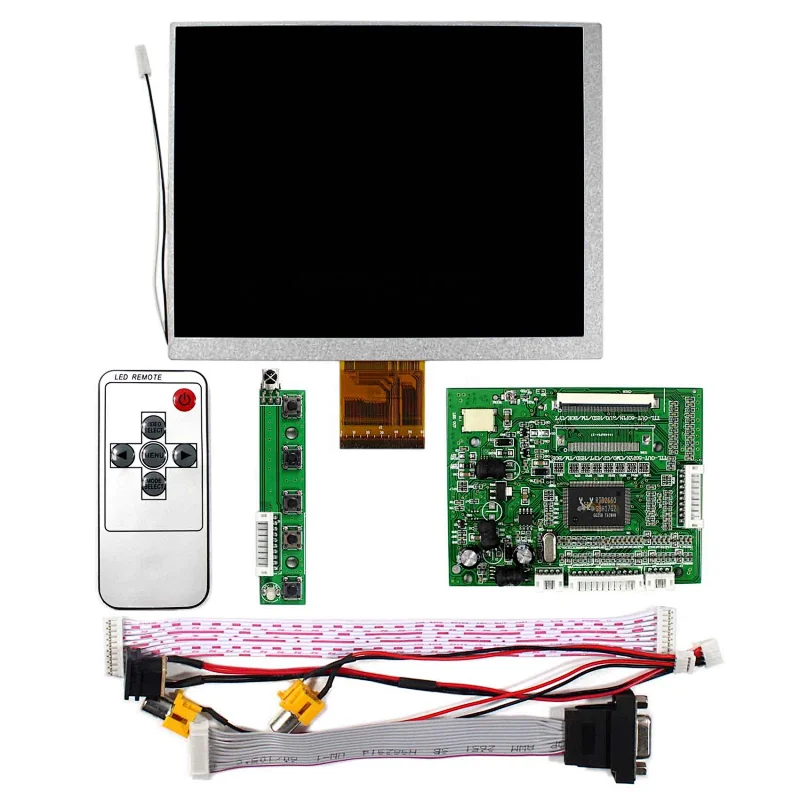

  • Packing list :
    1× VGA+AV LCD Controller Board VS-TY5060-V1
    1× 7inch CLAA070MA0ACW 800X600 4:3 LCD Screen
    1× Power Supply Cable

    1× VGA Cable
    1× AV Cable
    1× Keyboard With Cable
    1× Remote Controller(Battery not included)
